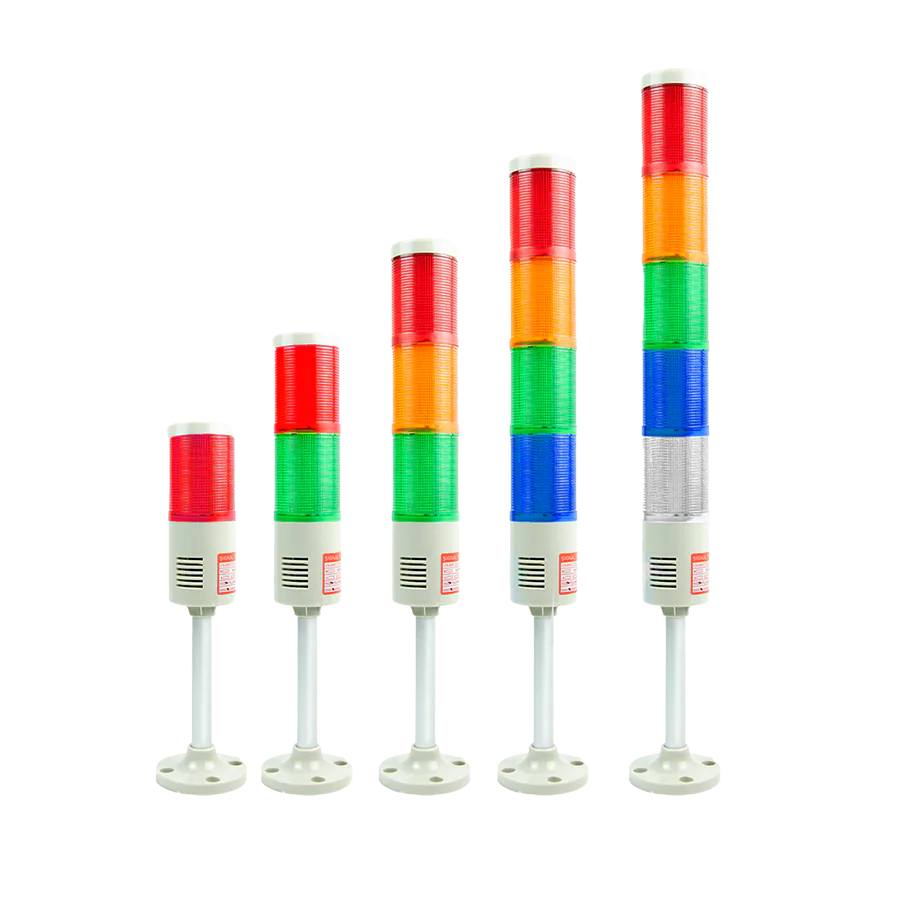

ALX-T-505
Standard Multi-Layer LED Stack Light
General configurable LED platform for machine and process status indication.
- Format1–5 LED Layers
- ProtectionIP44
- BehaviorSteady / Flash · Optional Buzzer
INDUSTRIAL SIGNAL TOWERS & STACK LIGHTS

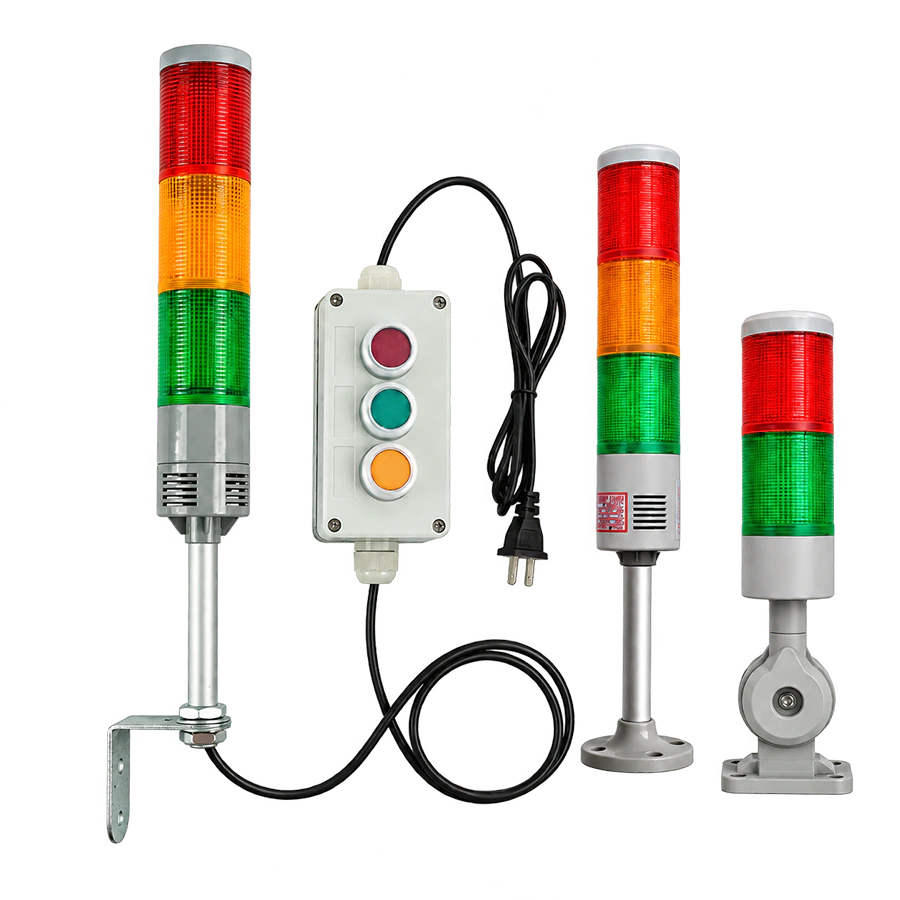

ALX-T Series Industrial Signal Towers & Stack Lights
Industrial signal towers, stack lights and Andon lights for machine status, process signaling and operator-controlled stations.
Five hardware platforms cover configurable multi-layer LED signaling, fixed three-color indication, slim and manual Andon control, and traditional incandescent stack-light requirements.
SERIES STRUCTURE
5 HARDWARE PLATFORMS · CONFIGURABLE SIGNAL & CONTROL LOGIC
ALX-T SERIES — CURRENT PLATFORM REFERENCE
1–5 Layers
Configurable Platforms
LED / Incandescent
Light Source Platforms
IP44 / IP65
Platform Dependent
Machine / Manual
Control Methods
Layer count, protection, light behavior, audible indication, control method and mounting depend on the selected platform and configuration. Confirm the exact configuration before machine integration.
PLATFORM SELECTION
Choose the Signal Tower Architecture First
Start with the physical signaling architecture and control requirement. Layers, colors, flashing, buzzer and installation options can then be configured in the next step.
01 · MULTI-LAYER LED
Configurable LED Signal Towers
For equipment that needs one to five separate visual states with configurable steady or flashing indication and optional buzzer.

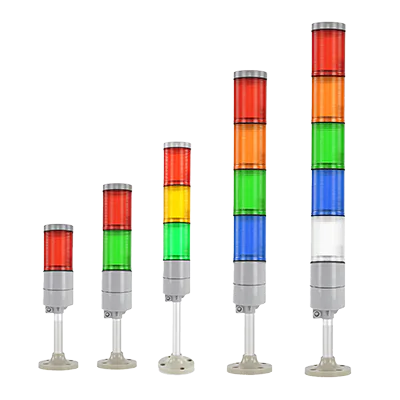

ALX-T-052
IP65 Multi-Layer LED Stack Light
Configurable multi-layer LED platform for installations requiring IP65 environmental protection.
- Format1–5 LED Layers
- ProtectionIP65
- BehaviorSteady / Flash · Optional Buzzer
02 · COMPACT 3-COLOR

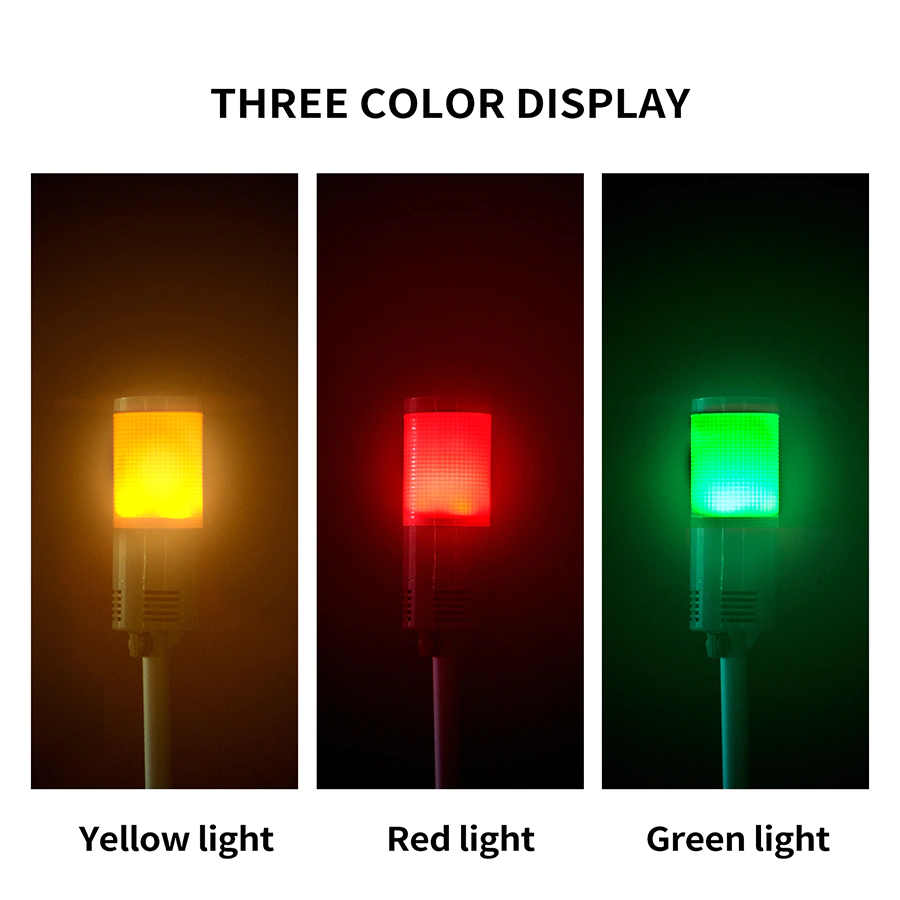

Fixed Red / Yellow / Green Indication
Compact IP65 platform for applications where a predefined three-color status arrangement is preferred.

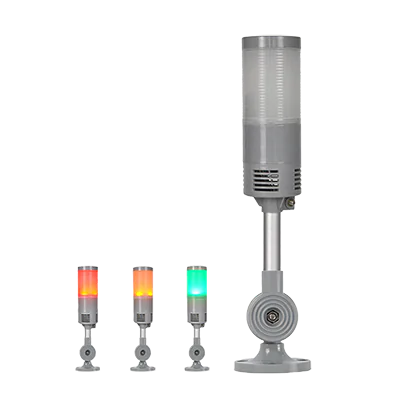

ALX-T-051
Compact Fixed 3-Color Signal Tower
Fixed red, yellow and green LED platform where compact IP65 indication and predefined visual behavior are required.
- ColorsRed / Yellow / Green
- ProtectionIP65
- BehaviorRed Flash · Yellow / Green Steady
03 · SLIM / MANUAL ANDON
Slim Signal Tower & Operator-Controlled Status
For compact machine layouts or applications that require operator-selected status through a self-locking switch.

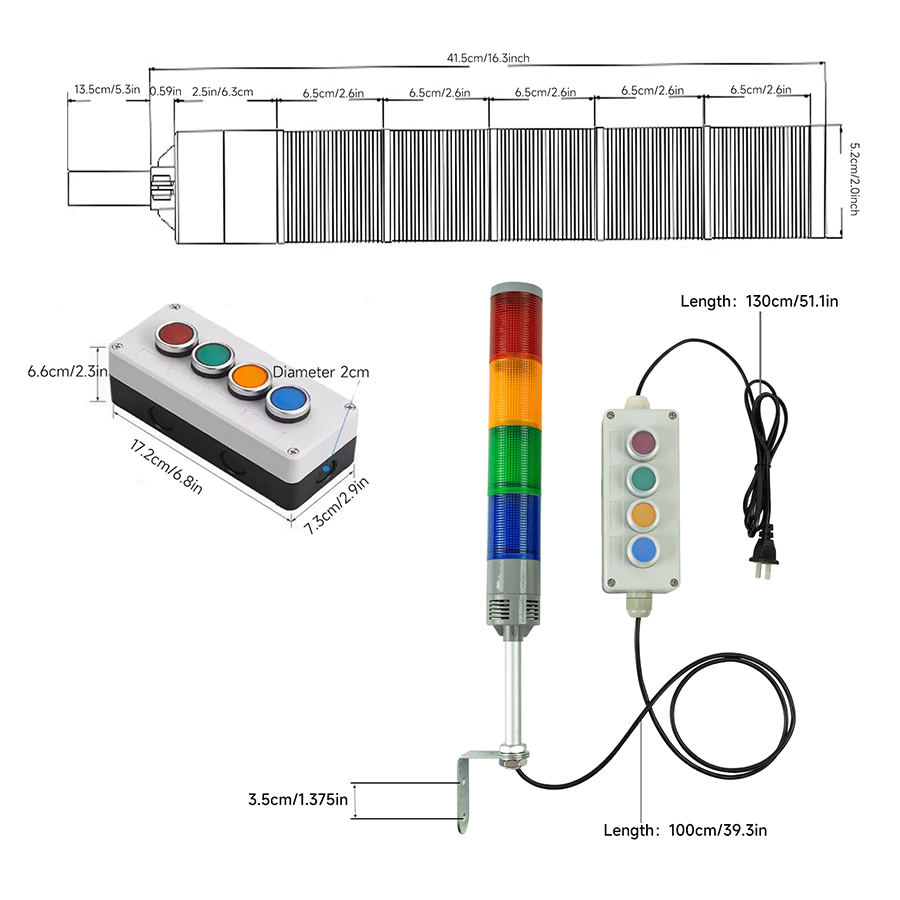

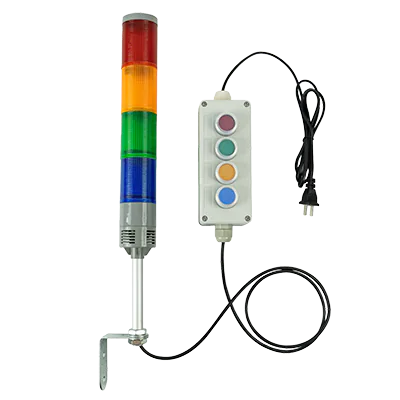

ALX-T-030
Slim & Manual Andon Signal Tower
Slim LED platform supporting machine-controlled signaling and selected manual self-locking switch configurations.
- FormatSlim LED Platform
- ControlMachine / Manual
- SoundOptional Buzzer
04 · INCANDESCENT
Traditional Incandescent Stack Light
For equipment or replacement requirements that explicitly specify a traditional incandescent signaling platform.
ALX-T-205
Incandescent Stack Tower Light
Configurable incandescent platform for equipment or replacement projects requiring traditional lamps.
- Format1–5 Signal Layers
- ProtectionIP44
- BehaviorSteady / Flash · Optional Buzzer
Selected Platform:
Configure This Platform
Not sure which architecture fits?
Define the number of visible states, environmental protection, control method and whether LED or incandescent signaling is required.
Ask for Platform Recommendation →CONFIGURATION GUIDE
Configure the States Your Equipment Needs to Show
Define the signaling requirement once. Your selections are synchronized with the inquiry form and configuration summary below.
01
SIGNAL STATES
How many machine or process states need to be shown?
Use one layer for each status operators genuinely need to distinguish.
ALX-T-051 uses a fixed Red / Yellow / Green configuration rather than a conventional selectable three-layer stack.
02
COLORS & STATUS LOGIC
Select the required colors and their order
Colors are recorded in the order selected. Follow the signaling standard used by your machine or facility.
EXAMPLE ONLY
Green
Running
Yellow
Waiting
Red
Fault
Blue
Operator / Material Request
03
LIGHT & SOUND
Choose the visual and audible behavior
Light Mode
Audible Signal
FL = Flashing
BZ = Buzzer
04
CONTROL METHOD
How should the displayed status be selected?
05
INSTALLATION
Confirm protection, mounting and pole arrangement
Protection Requirement

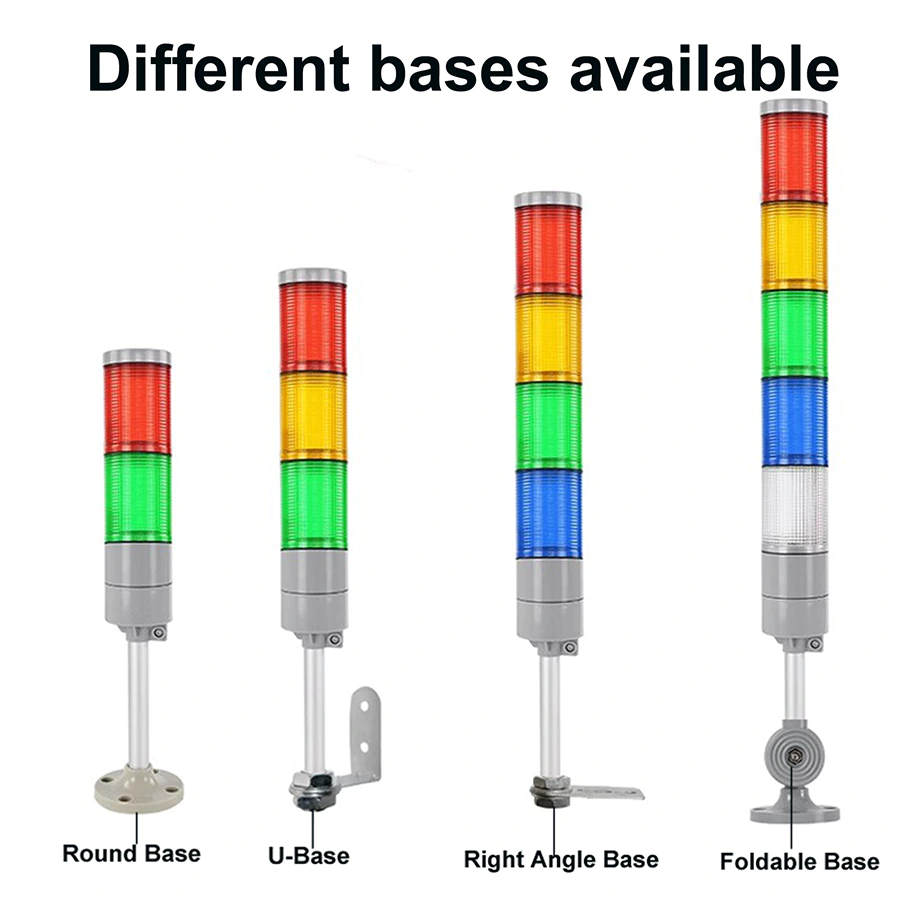

Mounting Method
Pole / Stand Length
Input Voltage
Confirm available machine supply.

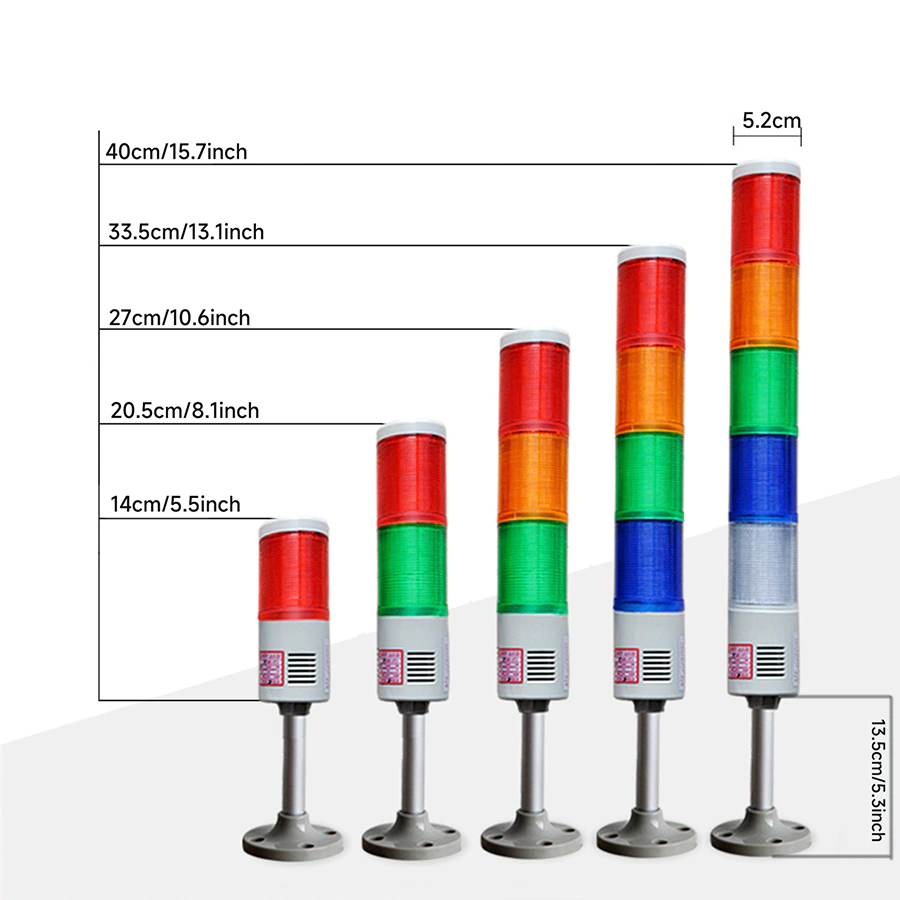

Available Space
Check overall height and clearance.
Wiring
Use the selected platform wiring reference.
Selected Platform
Not Selected
Configuration Code
To Be Confirmed
Review Configuration & Request Quote →
APPLICATION FIT
Signal Machine, Process & Operator Status
ALX-T towers support machine-status indication, production-area signaling and selected manual Andon applications.
Machine Status Warning
For machines, automated equipment and control systems that need clearly visible operating states.
View Machinery & Equipment Solution →Production & Work-Area Signaling
For production lines, work cells and factory areas that need visible process-state communication.
View Factory & Work-Area Solution →Manual Andon / Operator Status
ALX-T-030-SW configurations support manually selected status indication where operator control is required.
TECHNICAL SPECIFICATIONS
Compare the ALX-T Hardware Platforms
Use the comparison to verify the platform architecture before wiring, mounting and machine integration are finalized.
CURRENT PLATFORM INFORMATION REFERENCE
The information below reflects the currently listed ALX-T platform data. Confirm the exact electrical, protection, mounting and configuration requirements before final project specification.
| Selection Point | 030 | 051 | 052 | 205 | 505 |
|---|---|---|---|---|---|
| Light Source | LED | LED | LED | Incandescent | LED |
| Status Format | Multi-Layer / Manual 3–4 | Fixed 3-Color | 1–5 Layers | 1–5 Layers | 1–5 Layers |
| Protection | IP44 / IP65 by Configuration | IP65 | IP65 | IP44 | IP44 |
| Light Behavior | Switchable / Configured | Red Flash · Yellow / Green Steady | Steady / Flashing | Steady / Flashing | Steady / Flashing |
| Control Method | Machine / Manual | Machine | Machine | Machine | Machine |
| Main Reason to Choose | Slim / Manual Andon | Fixed Compact 3-Color | IP65 Multi-Layer LED | Incandescent Requirement | Standard Multi-Layer LED |
MODEL CODE GUIDE
Understand the ALX-T Configuration Suffixes
The configuration code identifies selected light, sound or manual-control behavior where applicable.
BZ
Buzzer
Adds audible indication.
FL
Flashing
Identifies a flashing-light configuration.
SW
Self-Locking Switch
Identifies manual operator control.
EXAMPLEALX-T-052-FL-BZ
ALX-T-052 + Flashing + Buzzer
ENGINEERING RESOURCES
Confirm Wiring, Mounting & Dimensions
Use the information for the selected platform and electrical configuration rather than assuming every ALX-T model uses the same connection or installation method.
FREQUENTLY ASKED QUESTIONS
ALX-T Signal Tower FAQs
Use ALX-T-505 or ALX-T-052 for configurable multi-layer LED signaling, ALX-T-051 for fixed compact three-color indication, ALX-T-030 for slim or manual-control applications, and ALX-T-205 when an incandescent platform is specifically required.
Both are configurable multi-layer LED platforms. ALX-T-505 is the currently listed IP44 platform, while ALX-T-052 provides IP65 protection.
Yes, on applicable multi-layer platforms. Confirm the required number of layers and color order before ordering. ALX-T-051 is different because it uses a fixed Red / Yellow / Green configuration.
Machine-controlled signal towers receive status commands through equipment wiring. ALX-T-030-SW configurations use a self-locking switch so an operator can manually select the displayed status.
ORDERING INFORMATION
Purchasing Reference
From 1 Piece
Minimum Order
Suitable for samples and low-volume machine requirements.
Available
Samples
Standard configurations can be arranged for evaluation.
Supported
Mixed Configurations
Different ALX-T platforms and configurations can be combined.
7–15 Days
Typical Lead Time
Reference for standard and confirmed configured orders.
CONFIGURE & REQUEST A QUOTE
Tell Us What Your Signal Tower Needs to Do
Use the configurator above or describe the machine, signal logic and installation conditions directly.
