ALX-400-80
80W High-Power Industrial Alarm
Standard 80W configuration for a fixed warning point using conventional power-on activation.
- 80W power platform
- Adjustable sound up to 130 dB
- 12 tones + USB custom audio
HIGH-POWER INDUSTRIAL WARNING
ALX-400 Series 80W & 150W High-Power Industrial Alarm Sirens
Industrial audible and visual warning platforms with standard power-on, wireless remote and RS-485 control options.
The ALX-400 Series is designed for fixed high-power audible and visual warning points. Choose the required power platform first, then select the control method that matches the application.
ALX-400 SERIES — POWER PLATFORM REFERENCE
80W / 150W
Power Platforms
Up to 130 dB
Adjustable Sound
IP65
Protection Rating
Power-On / Wireless / RS-485
Control Options
Voltage, control and communication options depend on the selected power platform and model.
CONFIGURATION SELECTION
Choose the ALX-400 Power Platform and Control Method
Start with the required 80W or 150W power platform, then choose the control method that matches the application.
01
80W Configurations
For fixed high-power warning points requiring standard power-on operation or long-range wireless ON / OFF control.

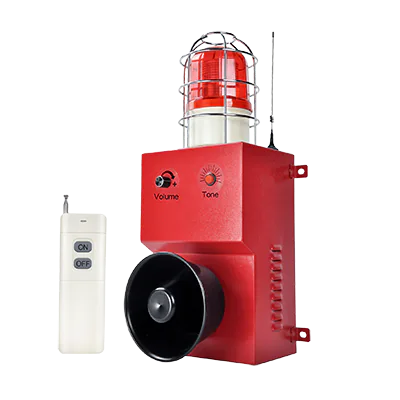

ALX-400-80-RC
80W Long-Range Remote-Control Alarm
80W configuration for warning points requiring wireless ON / OFF control from another operating position.
- 80W power platform
- Approx. 2000 m open-area remote reference
- 12 tones + USB custom audio
80W voltage options
Standard voltage options for ALX-400-80 include DC12V, DC24V, AC110V and AC220V. AC380V is available on selected configurations and should be confirmed before ordering.
02
150W Configurations
For projects requiring the 150W platform with standard power-on, wireless remote or RS-485 / Modbus-RTU control.

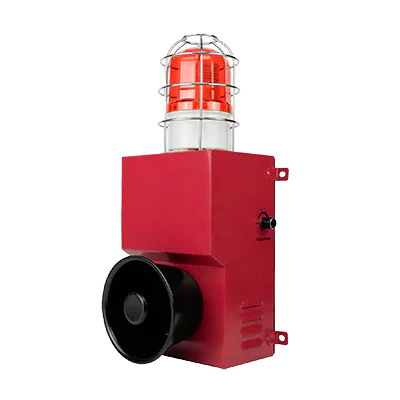

ALX-400-150
150W High-Power Industrial Alarm
Standard 150W configuration where remote or communication control is not required.
- 150W power platform
- Adjustable sound up to 130 dB
- 12 tones + USB custom audio
ALX-400-150-RC
150W Wireless Remote-Control Alarm
150W configuration for wireless ON / OFF control from a separate operating position.
- 150W power platform
- 500 m / 2000 m open-area remote options
- 12 tones + USB custom audio
ALX-400-150-485
150W RS-485 Industrial Alarm
150W configuration for activation or control from PLCs and other compatible industrial control systems.
- 150W power platform
- RS-485 / Modbus-RTU communication
- 12 tones + USB custom audio
CONFIRM SELECTABLE CONFIGURATION
Carry Your Confirmed Choices Forward
Only Product Truth-confirmed options for the selected model are shown here. Unresolved engineering values remain open for application review.
Remote Configuration
Fixed reference for the currently mapped model; not a 500 / 2000 m selector.
Power platform:
Selected model:
Control method:
Supply:
Light color:
Remote:
Not sure which configuration to use?
Send us the required voltage, installation location, control method and approximate warning area. We can help confirm the suitable ALX-400 configuration.
Ask for Model Recommendation →
APPLICATION PATHS
Where the ALX-400 Series Can Fit
Use these application paths when the project still needs broader guidance on warning coverage, equipment control or industrial alerting requirements.

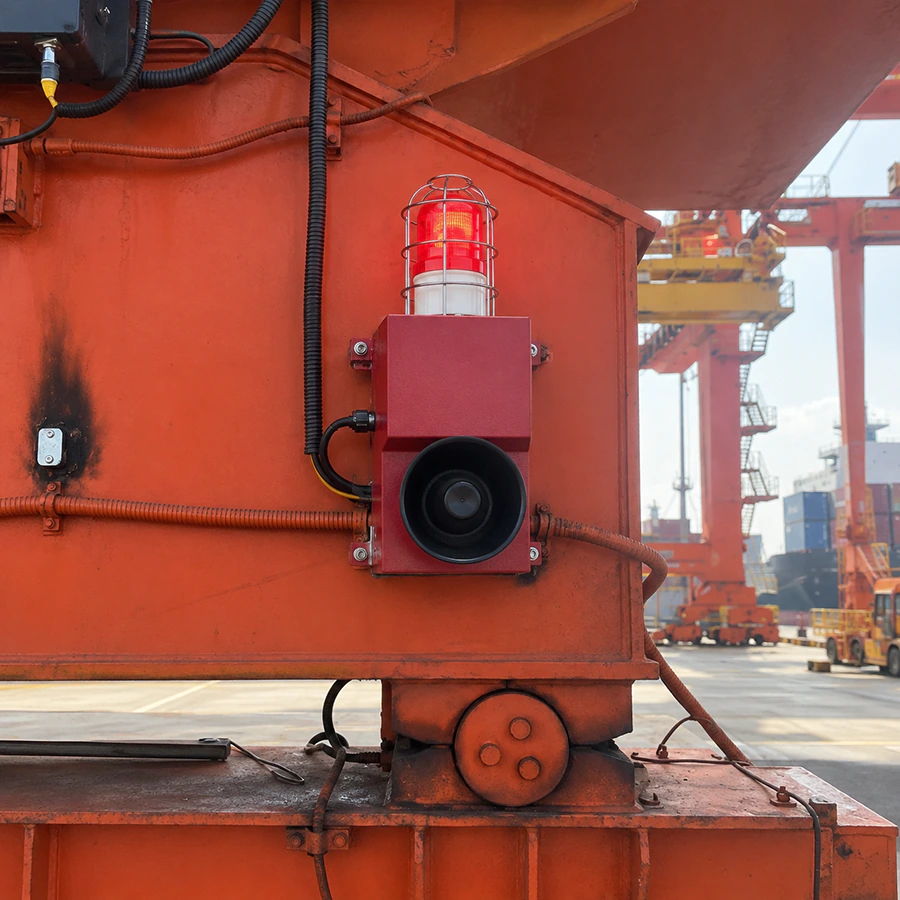

Machinery & Material Handling
For cranes, loading equipment, large machinery and production equipment requiring a dedicated high-power warning point.
View Machinery Solution →Factory, Steel & Large Work Areas
For steel plants, metallurgy, factories and other large shared industrial work areas with substantial background machinery noise.
View Work Area Solution →Remote & Automated Warning
For applications requiring wireless operator control, RS-485 communication or connection with compatible industrial control systems.
View Remote Control Solution →
PLATFORM SPECIFICATIONS
ALX-400 Platform Specifications
Review the common series characteristics first, then confirm electrical, control and dimensional information for the selected 80W or 150W platform.
Common Series Specifications
- Warning Method
- Audible & Visual
- Light Source
- LED
- Light Mode
- Flashing / Strobe Warning
- Protection Rating
- IP65
- Main Enclosure
- Powder-Coated Cold-Rolled Steel
- Installation
- Wall Mount
- Operating Temperature
- -40°C to +70°C
- Working Humidity
- ≤95%
- Volume Adjustment
- Local adjustment up to maximum sound output
- Warning Sound
- Locally selectable / adjustable warning audio
- Audio Update
- USB custom audio update

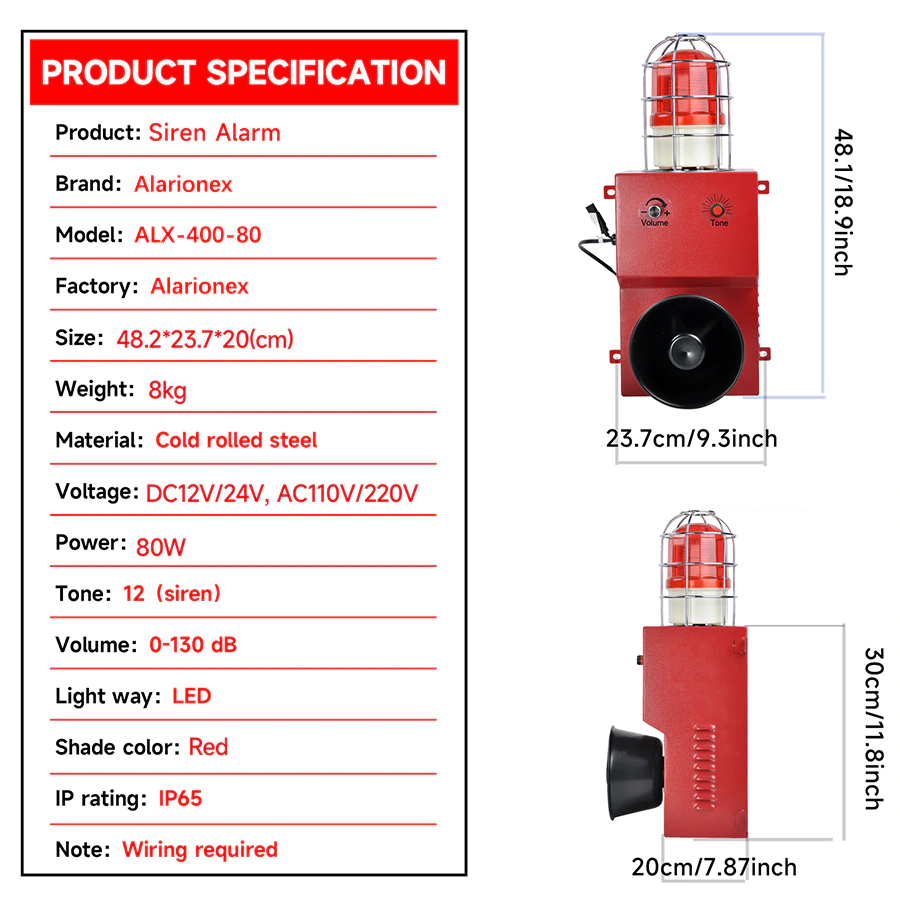

80W Platform
- Maximum Power
- 80W
- Sound Level
- Adjustable up to 130 dB
- Standard Input Voltage
- DC12V / DC24V / AC110V / AC220V
- Additional Voltage Option
- AC380V on selected configurations — confirm before order
- Power Wiring
- Two-wire connection
- Protective Earth
- Separate earth connection
- Light Colors
- Red / Yellow / Blue / Green
- Built-In Warning Tones
- 12 tones on current standard / remote configurations
- Audio Storage
- 4M
- Remote Control
- Approx. 2000 m open-area reference on current remote configuration
150W Platform
- Maximum Power
- 150W
- Sound Level
- Adjustable up to 130 dB
- Standard Input Voltage
- DC12V / DC24V / AC110V / AC220V
- Power Wiring
- Two-wire connection
- Protective Earth
- Separate earth connection
- Light Colors
- Red / Yellow / Blue / Green
- Warning Tones
- Multi-tone; 12 built-in tones on selected configurations
- Audio Storage
- 4M
- Wireless Remote Options
- 500 m / 2000 m open-area configurations
- Communication Option
- RS-485 / Modbus-RTU
80W and 150W are power-platform ratings.
Wattage and sound-pressure level are different specifications. Both platforms provide adjustable sound up to approximately 130 dB. The sound-level reference is based on measurement at 1 m in an indoor, relatively quiet environment; actual perceived sound level varies with installation and site conditions.
Remote-control distances are site-dependent.
The remote ranges are open-area references. Buildings, machinery, metal structures and other site conditions can reduce effective remote-control distance.

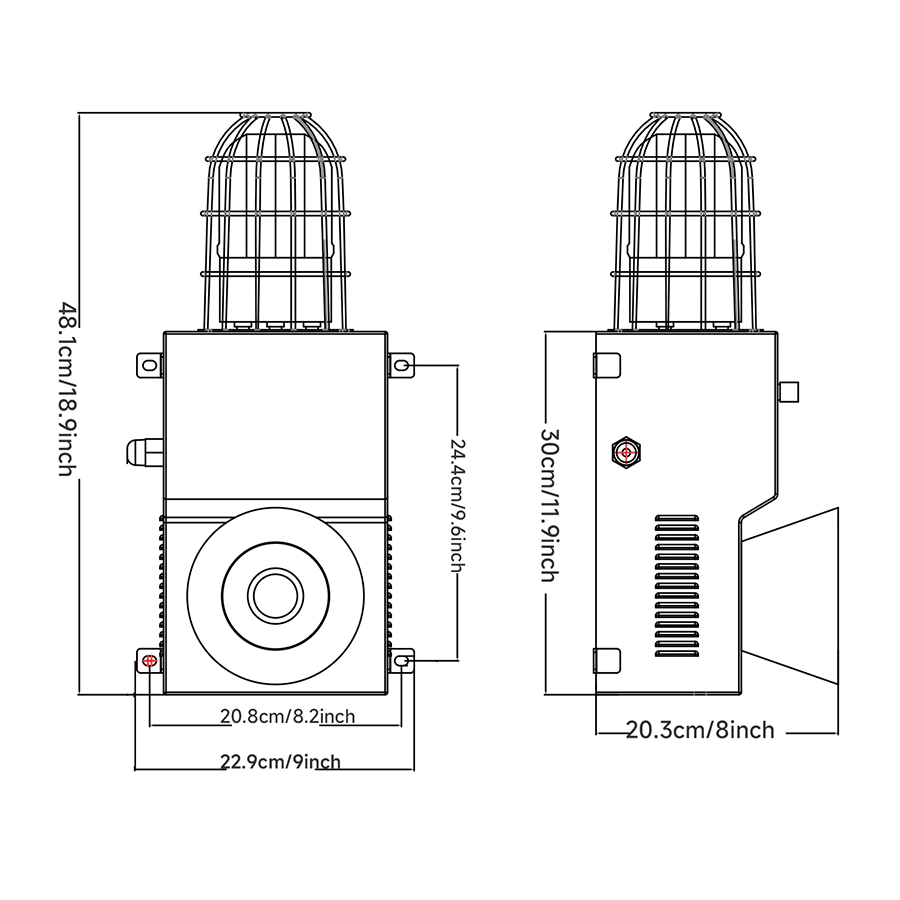

ALX-400 Installation Dimensions
The 80W and 150W platforms use similar wall-mounted layouts but are not dimensionally identical. Use the drawing for the selected platform before preparing mounting holes, brackets or surrounding equipment.
80W PLATFORM
ALX-400-80 Dimensional Reference
- Overall Height
- 480 mm
- Body Width
- 208 mm
- Overall Width incl. Mounting Ears
- 237 mm
- Depth Reference
- 200 mm
- Main Enclosure Height
- 300 mm
150W PLATFORM
ALX-400-150 Dimensional Reference
- Overall Height
- 481 mm
- Body Width
- 185 mm
- Overall Width
- 229 mm
- Overall Depth
- 203 mm
- Main Enclosure Height
- 300 mm
Installation Note
Confirm the selected power platform before preparing mounting holes, brackets or surrounding equipment. Follow the model-specific installation instructions when positioning the horn and enclosure.
ENGINEERING RESOURCES
Engineering Resources
Review platform drawings or request model-specific wiring, communication and technical information before installation or system integration.
Project-Specific 150W Control Requirements
External switching-signal control and additional system-integration requirements can be reviewed for compatible 150W configurations.
FREQUENTLY ASKED QUESTIONS
ALX-400 Series FAQs
Compare the required power platform, available installation space and control method rather than wattage alone. Both platforms provide adjustable sound up to approximately 130 dB, while dimensions and available control configurations differ.
Choose a standard model for conventional power-on operation, an RC model for wireless ON / OFF control, or ALX-400-150-485 when RS-485 communication is required. External switching-signal or other integration requirements can be reviewed separately for compatible 150W configurations.
No. The sound-level reference is based on measurement at 1 m in an indoor, relatively quiet environment, while the wireless remote ranges are open-area references. Actual performance varies with installation and site conditions.
Yes. Select the model when known and request the required drawing, wiring, technical or communication information through the Engineering Resources section.
ORDERING & PROJECT SUPPORT
Purchasing Information for ALX-400 Projects
From 1 pc
Minimum Order
Available
Samples
Supported
Mixed Models
7–15 Days
Typical Lead Time
Final availability and lead time are confirmed according to the selected configuration, customization and order requirements.
APPLICATION REVIEW
Tell Us Your ALX-400 Requirements
Share the required model, power supply, application and control method. Our team will review the suitable ALX-400 configuration and provide technical and quotation support.
