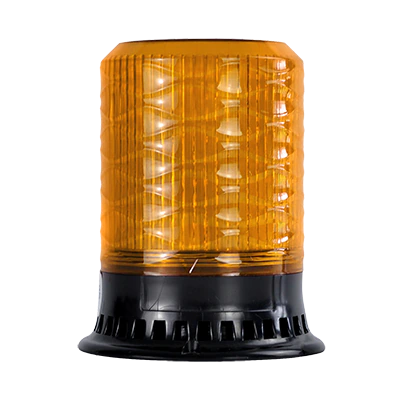

ALX-B-090
Standard Locally Adjusted Beacon Siren
Standard integrated platform for installations that need local adjustment together with audible and multi-mode visual warning.
- ProtectionIP65

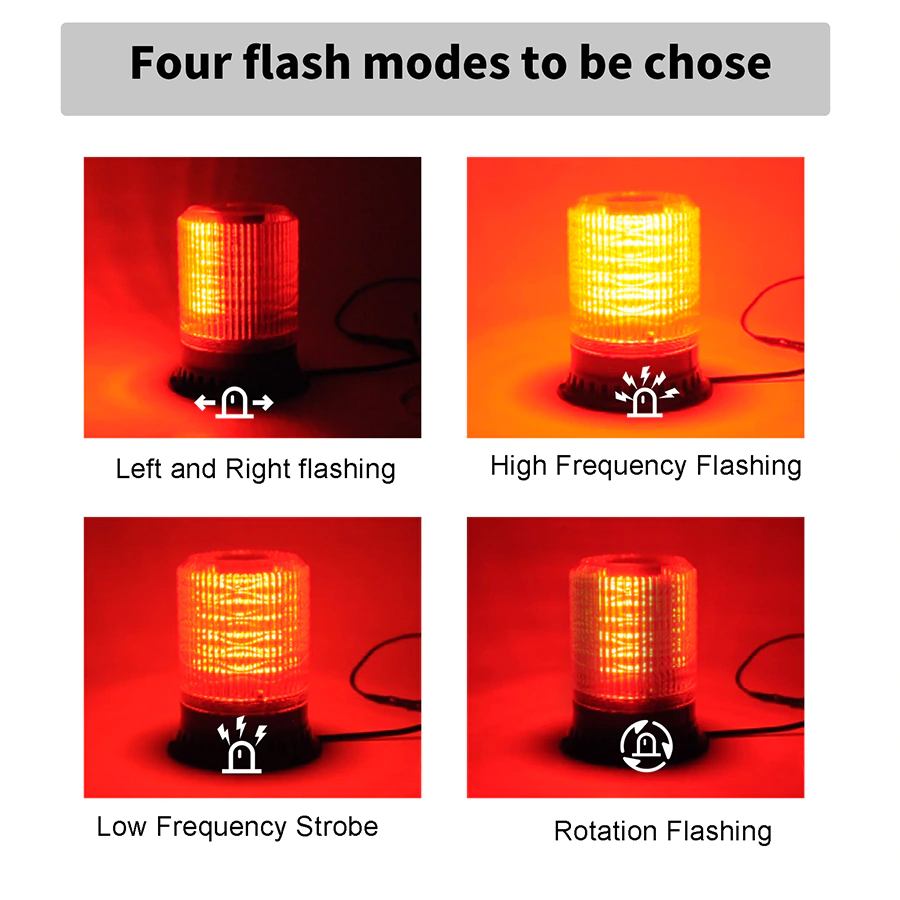

- Visual4 Modes
- DC SupplyDC10–30V
INTEGRATED AUDIBLE & VISUAL ALARMS

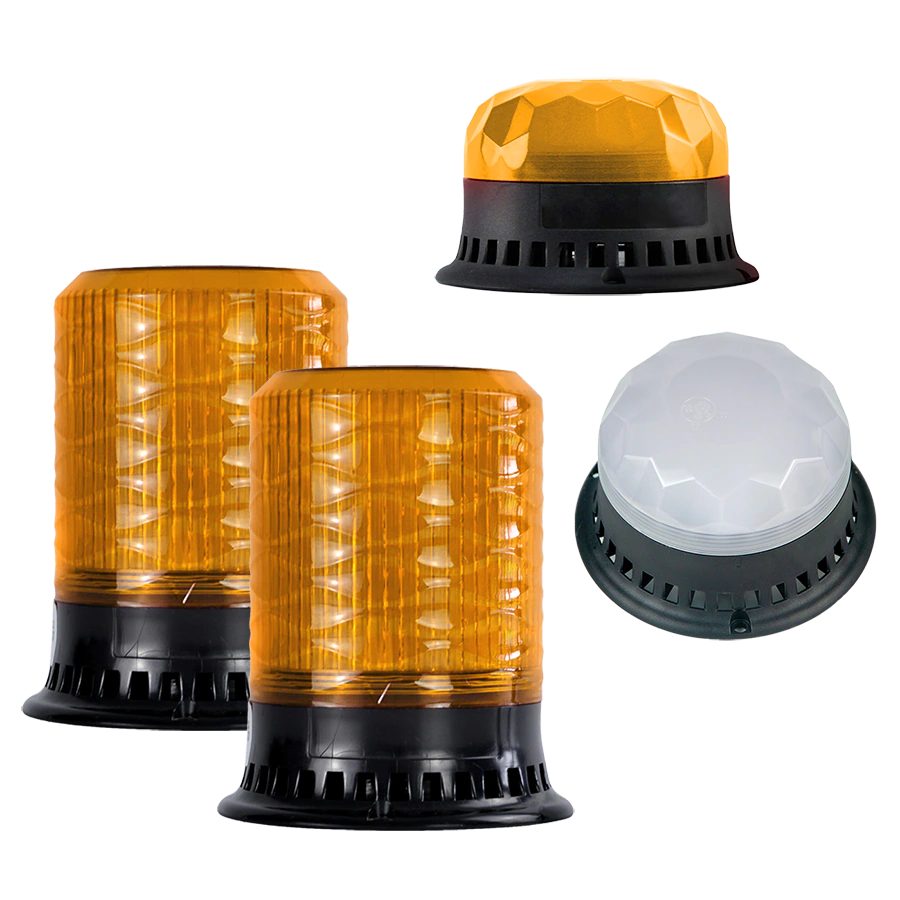

ALX-B Integrated Beacon Sirens
Integrated sounder beacon platforms combining LED visual warning with adjustable multi-tone audible alarms.
The ALX-B Integrated range combines visual signaling and adjustable high-output audible warning in one unit, with standard IP65, compact IP65 and 7-color IP69K platforms for different installation requirements.
SERIES STRUCTURE
SHARED AUDIBLE ALARM PLATFORM · 3 MODEL-SPECIFIC VISUAL / PROTECTION PLATFORMS
ALX-B SERIES — CURRENT SHARED PLATFORM REFERENCE
0–120 dB
Adjustable Sound
9 Tones
Alarm Selection
Standard / 7-Color
Visual Signaling
IP65 / IP69K
Listed Protection Platforms
Protection, supply and visual behavior vary by exact model. Current values should be confirmed for the supplied configuration before wiring or installation.
MODEL SELECTION
Choose by Protection & Visual Requirement
All three models combine audible and visual warning. Select mainly by housing format, environmental protection, visual behavior and required power supply.

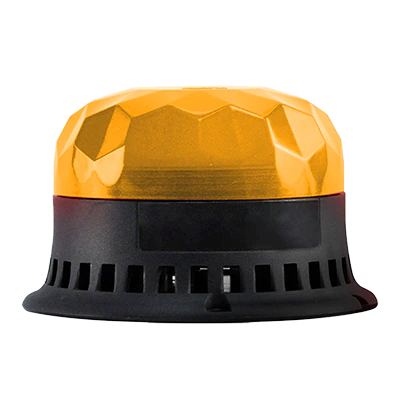

ALX-B-090-II
Compact Locally Adjusted Beacon Siren
Lower-profile IP65 platform for installations that need a more compact body while retaining local audible and visual adjustment.
- ProtectionIP65
- VisualMulti-Mode*
- DC SupplyDC12 / 24V

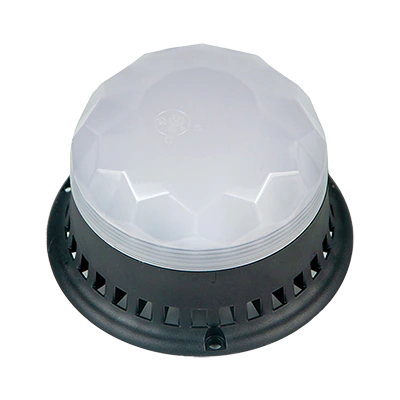

ALX-B-290-II

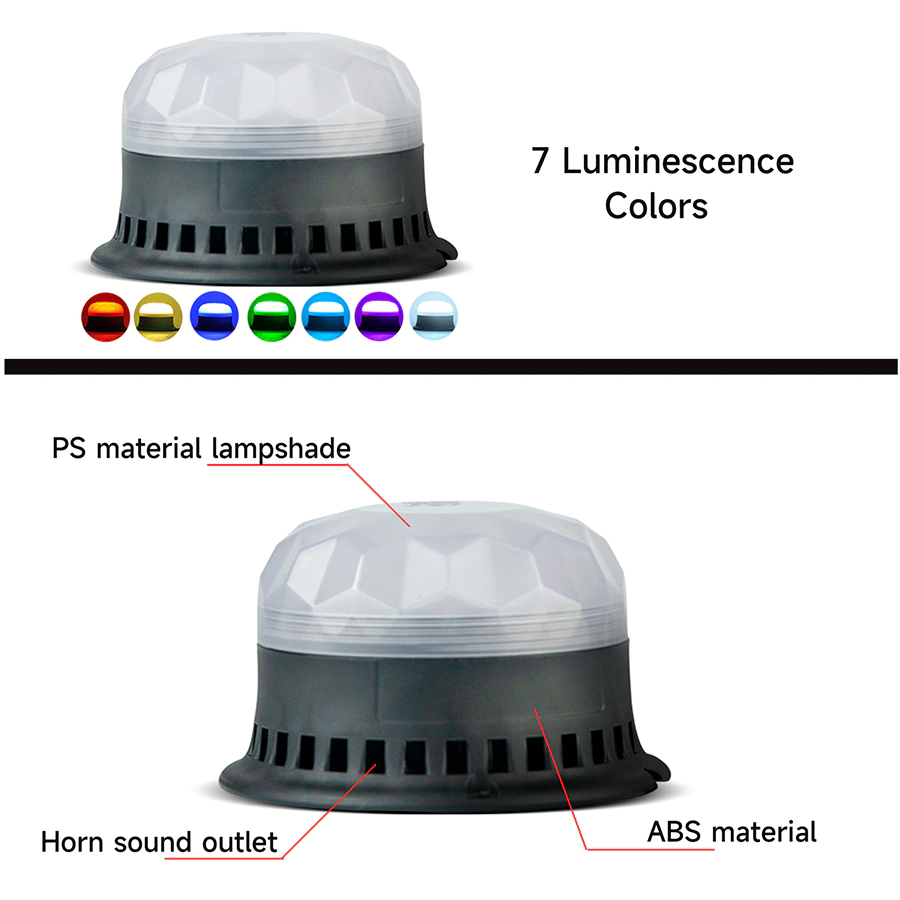

7-Color IP69K Integrated Beacon Siren
Higher-protection platform for applications requiring seven-color visual signaling together with integrated audible warning.
- ProtectionIP69K
- Visual3 Modes / 7-Color
- SupplyDC10–30V / Selected AC
* Confirm the exact ALX-B-090-II visual-mode configuration when a specific flash pattern is project-critical.
Selected Model:
Continue to Application Review
Not sure which model fits?
Share the required protection level, visual behavior, available supply and installation environment. The exact configuration can be reviewed before quotation.
Ask for Model Recommendation →APPLICATION FIT
Where Integrated Audible & Visual Alarms Fit
Use the related solution path when the warning requirement involves the wider machine, work-area or installation environment.
Machinery & Equipment Warning
For machines and equipment that need visible indication and a clearly audible alarm at the same warning point.
View Machinery & Equipment Solution →Factory & Work-Area Alerting
For workshops and production areas where operators need audible and visual warning from one integrated device.
View Factory & Work-Area Solution →Mobile, Exposed or Unusual Installations
For selected mobile equipment, exposed locations or installations with unusual mounting and environmental conditions.
Discuss the Installation →TECHNICAL SPECIFICATIONS
Shared Core Specifications & Model Differences
The current product information lists a shared audible-alarm platform, while protection, supply and visual behavior vary by exact model.
CURRENT PRODUCT INFORMATION REFERENCE
The values below reflect the currently listed ALX-B Integrated Beacon Siren information. Confirm the exact supplied configuration before using these values for final wiring, installation or project specification.
Shared Audible Alarm Platform
- Current Platform Power
- 15W
- Adjustable Sound
- 0–120 dB
- Alarm Selection
- 9 Tones

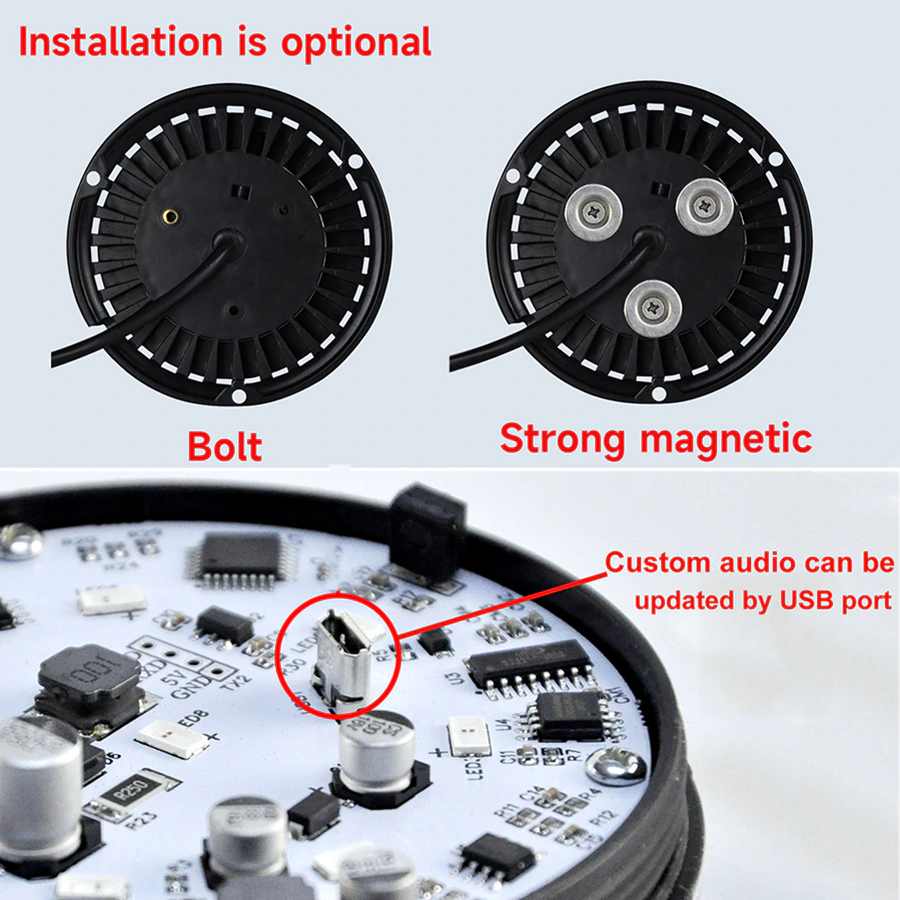

- Mounting Reference
- Bolt / Magnetic Options
- Custom Audio Support
- Micro USB
Model-Specific Differences
| Selection Point | ALX-B-090 | ALX-B-090-II | ALX-B-290-II |
|---|---|---|---|
| Visual | 4 Modes | Multi-Mode* | 3 Modes / 7-Color |
| Protection | IP65 | IP65 | IP69K |
| DC Supply | DC10–30V | DC12 / 24V | DC10–30V |
| AC Variant | — | — | Selected AC100–240V |
| Main Reason to Choose | Standard IP65 Platform | Compact IP65 Platform | 7-Color + IP69K |
* Confirm the exact ALX-B-090-II visual-mode configuration when a specific flash pattern is project-critical.
ENGINEERING RESOURCES
Confirm the Exact Beacon Siren Configuration
Request model-specific information before preparing wiring, mounting, visual-mode or custom-audio requirements.
FREQUENTLY ASKED QUESTIONS
Integrated Beacon Siren FAQs
Start with IP65 or IP69K protection, then confirm the available supply and whether a standard, compact or seven-color visual platform is required.
No. The current product information lists ALX-B-090 and ALX-B-290-II with DC10–30V references, while ALX-B-090-II is listed for DC12 / 24V. A selected AC100–240V variant is also listed for ALX-B-290-II.
Consider ALX-B-290-II when the project specifically requires the currently listed seven-color visual signaling platform or IP69K protection rather than the standard IP65 models.
Yes. Select the exact model when known and request the available power, mounting, visual-mode or custom-audio information through Engineering Resources.
ORDERING INFORMATION
Purchasing Reference
From 1 Piece
Minimum Order
Suitable for sample evaluation and low-volume requirements.
Available
Samples
Standard models can be arranged for evaluation.
Supported
Mixed Models
IP65 and IP69K models can be combined according to project needs.
7–15 Days
Typical Lead Time
Reference for standard and confirmed configurations.
APPLICATION REVIEW
Tell Us Your Beacon Siren Requirements
Select the model if known, or describe the required protection, visual behavior, power supply and installation conditions.
