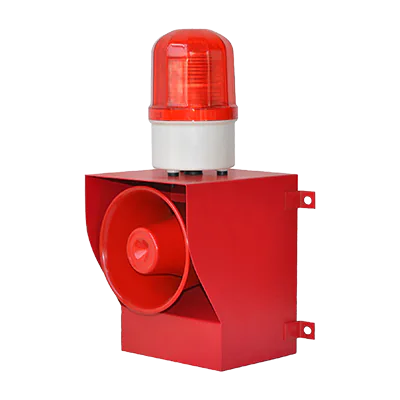

ALX-200
Standard Audible & Visual Alarm
Standard power-on configuration for high-output audible and visual warning.
- Power-on activation
- 130 dB base-model sound output
- IP65 base-model protection
HIGH-OUTPUT INDUSTRIAL ALARM SIRENS
ALX-200 Series High-Output Industrial Alarm Sirens
Multiple Configurations for Different Control, Sound Adjustment, Backup-Power and Environmental Requirements
The ALX-200 Series is a high-output industrial warning platform built around a standard power-on audible and visual base model, with multiple configurations for different project requirements.
Standard Base Model
ALX-200
STANDARD ALX-200 — BASE MODEL REFERENCE
130 dB
Sound Output
45W
Maximum Power
Power-On
Activation
IP65
Protection Rating
These references apply to the standard ALX-200 base model. Other configurations may differ in control, power, protection, installation and communication.
CONFIGURATION SELECTION
Choose the ALX-200 Configuration That Matches Your Requirement
Start with the required control or installation condition. Only the relevant ALX-200 models are shown below.
01
Standard & Adjustable
Start here for conventional power-on warning. Choose ADJ when local sound adjustment and USB audio update are required.

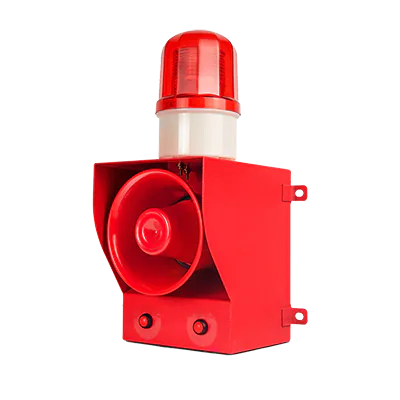

ALX-200-ADJ
Adjustable Audible & Visual Alarm
Power-on configuration with adjustable warning sound for applications requiring local output control.
- Adjustable volume and tone
- Selectable warning audio
- USB audio update
02
Wireless Remote Control
For warning points that require wireless ON / OFF operation, with optional sound adjustment, backup power or impact protection.

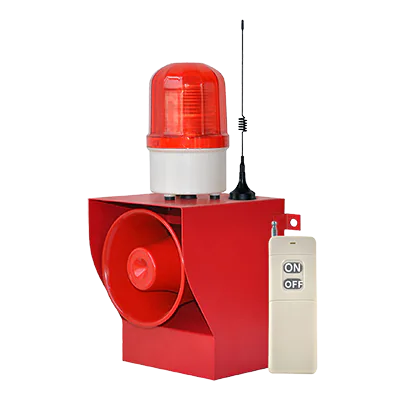

ALX-200-RC
Remote-Control Audible & Visual Alarm
Wireless remote-control configuration where remote ON / OFF operation is required.
- Wireless remote control
- Remote ON / OFF operation
- Standard warning output

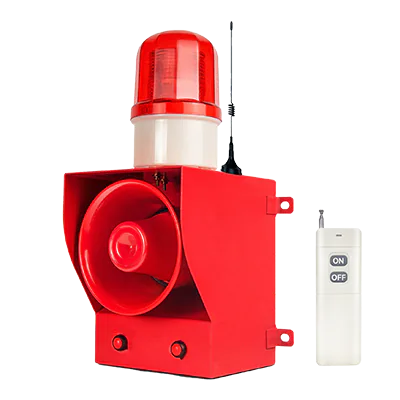

ALX-200-RC-ADJ
Remote-Control Adjustable Alarm
Wireless remote-control configuration with adjustable warning sound.
- Wireless ON / OFF control
- Adjustable volume and tone
- USB audio update

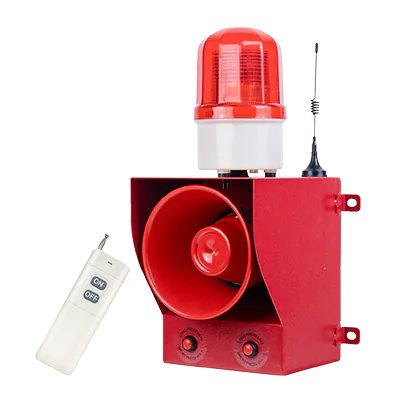

ALX-200-BAT-RC
Battery-Backed Remote-Control Alarm
Remote-control configuration with backup power for temporary loss of normal supply.
- Wireless remote operation
- 5000 mAh backup battery
- 3+ hours backup operation

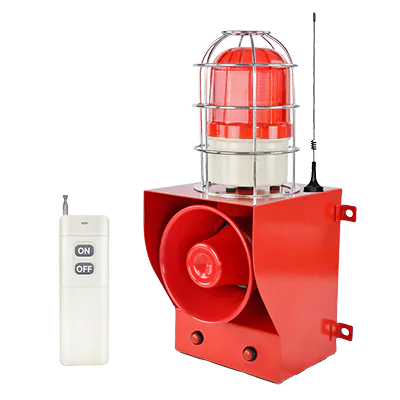

ALX-200-CG-RC
Protective-Cage Remote-Control Alarm
Remote-control configuration with additional physical protection around the warning light.
- Wireless remote control
- Protective light cage
- Adjustable warning functions
03
External Signal Input
For alarm activation from sensors, relays or other external control signals.

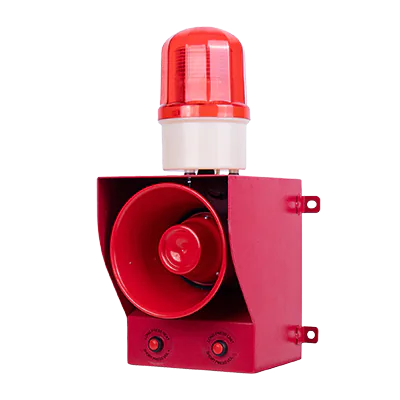

ALX-200-SIA
Signal-Input Adjustable Alarm
Signal-input configuration for external dry-contact or control-signal activation.
- External signal activation
- Suitable for sensors and relays
- Adjustable warning output
04
Linked Button / Control Point
For direct activation from an external button, operator control point or linked warning system.

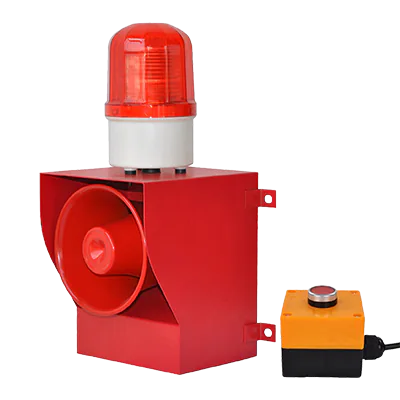

ALX-200-LINK
Linked-Control Audible & Visual Alarm
Linked-control configuration for direct activation from an external button or control point.
- External button activation
- Fixed-output warning
- Linked alarm control

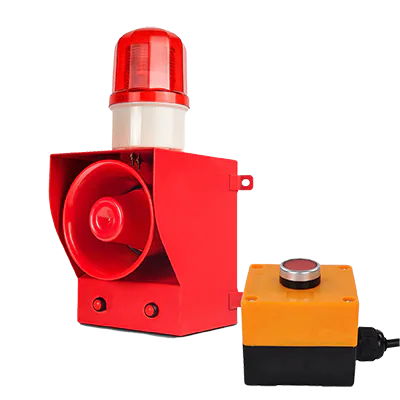

ALX-200-LINK-ADJ
Adjustable Linked-Control Alarm
Linked-control configuration with adjustable warning sound.
- Linked external activation
- Adjustable volume and tone
- USB audio update

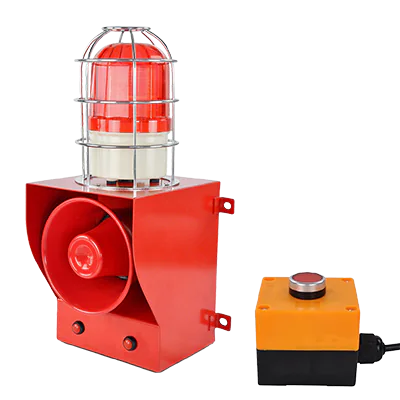

ALX-200-CG-LINK
Protective-Cage Linked-Control Alarm
Linked-control configuration with physical protection around the warning light.
- Linked control input
- Protective light cage
- Adjustable warning functions
05
Timer-Controlled Warning
For scheduled, delayed or repeated warning operation.

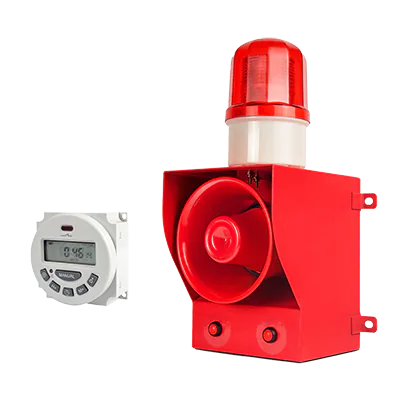

ALX-200-TMR-ADJ
Adjustable Timer-Controlled Alarm
Timer-controlled configuration for repeated or scheduled industrial warning applications.
- Timer-controlled operation
- Adjustable volume and tone
- USB audio update
06
RS-485 / System Control
For centralized warning systems and industrial control equipment requiring RS-485 communication.
ALX-200-485
RS-485 Controlled Audible & Visual Alarm
RS-485 controlled configuration for industrial communication and centralized warning systems.
- RS-485 communication
- System-command control
- Industrial automation integration
07
Protection & Special Environments
Start here when impact risk, environmental protection or housing material is the main selection factor.

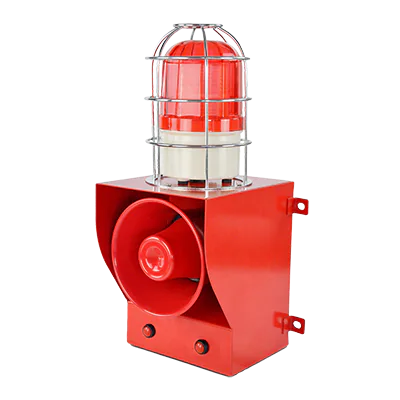

ALX-200-CG
Protective-Cage Adjustable Alarm
Protective-cage configuration for installations exposed to accidental physical impact.
- Protective metal light cage
- Adjustable volume and tone
- Impact protection

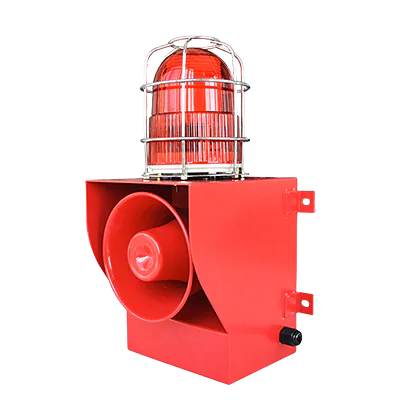

ALX-200-HD
Heavy-Duty Audible & Visual Alarm
Heavy-duty configuration for exposed industrial environments.
- IP66 protection
- Protective warning-light structure
- Heavy-duty construction

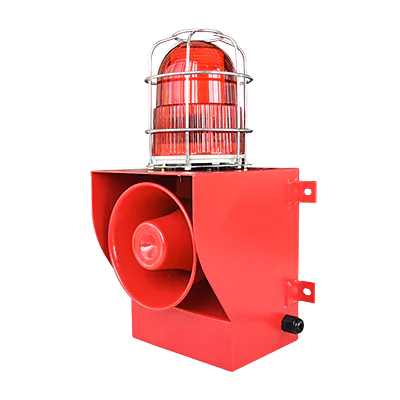

ALX-200-SS
Stainless-Steel Heavy-Duty Alarm
Stainless-steel configuration for demanding or corrosive industrial environments.
- Stainless-steel housing
- IP66 protection
- Corrosion-resistant construction
CONFIRM SELECTABLE CONFIGURATION
Carry Your Confirmed Choices Forward
Only Product Truth-confirmed options for the selected model are shown here. Unresolved engineering values remain open.
Engineering path:
Selected model:
Supply:
Light color:
Remote:
Only confirmed model-specific configuration is carried forward. Wiring and unresolved engineering details are confirmed during application review.
Compare All ALX-200 Models Open the model-difference matrix
This comparison focuses on differences that affect model selection. Base-model engineering specifications are shown separately below.
| Model | Control | Sound | USB | Backup | Cage | Environment | |
|---|---|---|---|---|---|---|---|
| ALX-200 | Power-on | Standard | — | — | — | Standard / IP65 | |
| ALX-200-ADJ | Power-on | Adjustable | Yes | — | — | Standard | |
| ALX-200-RC | Wireless remote | Standard | — | — | — | Standard | |
| ALX-200-RC-ADJ | Wireless remote | Adjustable | Yes | — | — | Standard | |
| ALX-200-BAT-RC | Wireless remote | Confirm | Confirm | Yes | — | Backup-power version | |
| ALX-200-CG-RC | Wireless remote | Adjustable | Confirm | — | Yes | Impact protection | |
| ALX-200-SIA | External signal | Adjustable | Confirm | — | — | Standard | |
| ALX-200-LINK | Linked control | Standard | — | — | — | Standard | |
| ALX-200-LINK-ADJ | Linked control | Adjustable | Yes | — | — | Standard | |
| ALX-200-CG-LINK | Linked control | Adjustable | Confirm | — | Yes | Impact protection | |
| ALX-200-TMR-ADJ | Timer | Adjustable | Yes | — | — | Standard | |
| ALX-200-485 | RS-485 | Confirm | Confirm | — | — | Standard | |
| ALX-200-CG | Confirm | Adjustable | Confirm | — | Yes | Impact protection | |
| ALX-200-HD | Confirm | Confirm | Confirm | — | Protective structure | Heavy-duty / IP66 | |
| ALX-200-SS | Confirm | Confirm | Confirm | — | — | Stainless steel / IP66 |
“Confirm” indicates a model-specific value that should not be assumed automatically from the standard base model.
APPLICATION FIT
Where the ALX-200 Series Can Fit
Use these application paths when the project still needs broader warning-method, control or installation guidance.

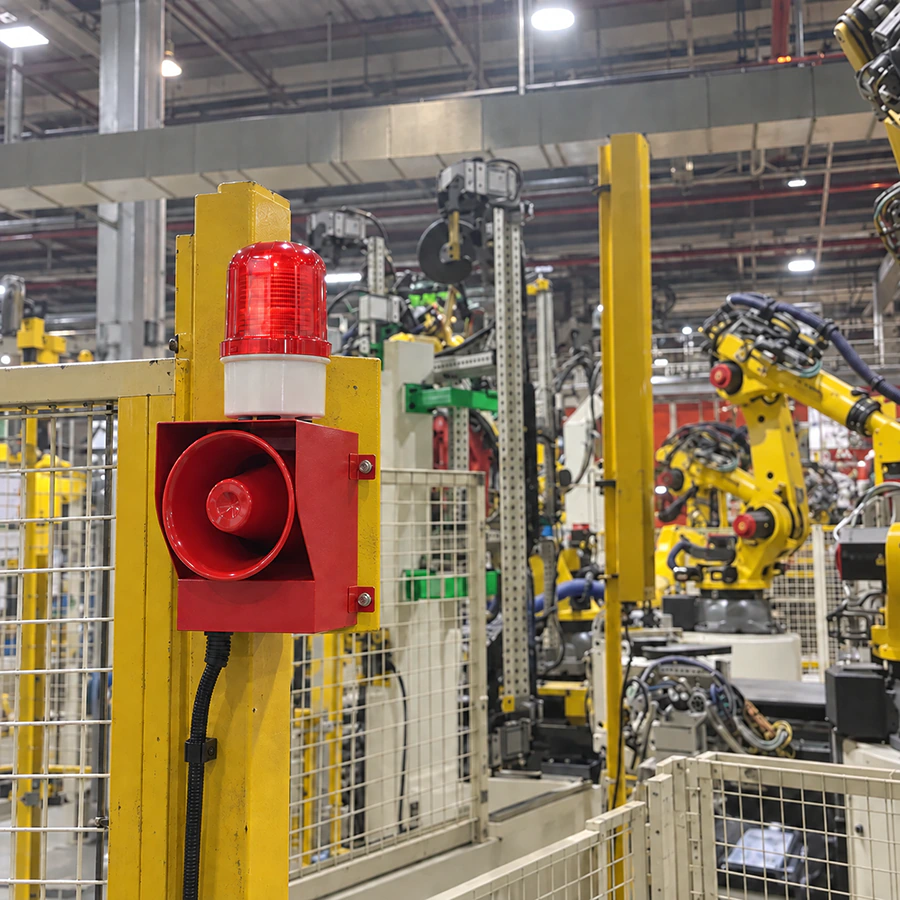

Machinery & Production Areas
For high-output warning tied to machine operation, faults, equipment movement or production events.
View Machinery Solution →Factory & Shared Work Areas
For warning intended to attract personnel across workshops, warehouses or large shared work areas.
View Work Area Solution →Outdoor & Large Industrial Sites
For projects where outdoor conditions, site size, available power or cabling affect the warning approach.
View Outdoor Solution →Remote, External & Connected Control
For applications driven by remote activation, external signals, linked controls or communication.
View Remote Control Solution →Final model selection may also depend on ambient noise, power supply, control requirements and the installation environment.
BASE MODEL SPECIFICATIONS
ALX-200 Base Model Engineering Data
The specifications below apply to the standard ALX-200 base model. Other configurations may differ and should be confirmed separately.
BASE MODEL — ALX-200
Do not apply these values automatically to every ALX-200 configuration.
Warning & Operation

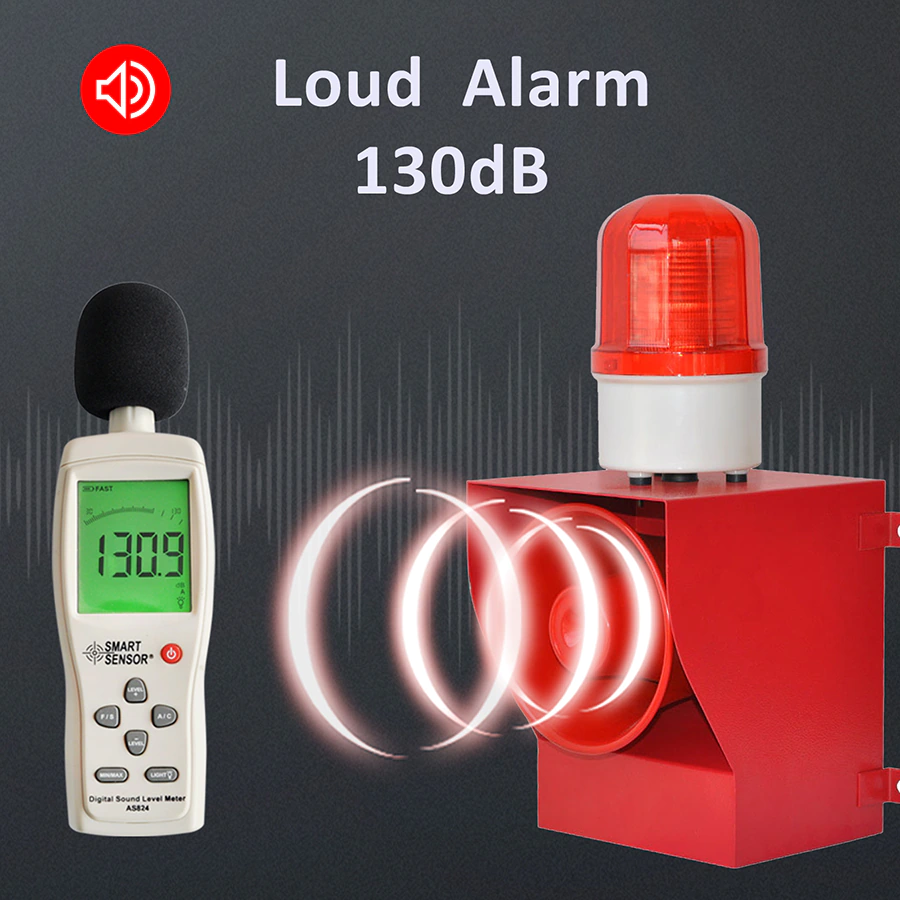

- Sound Level
- 130 dB
- Warning Method
- Audible & Visual

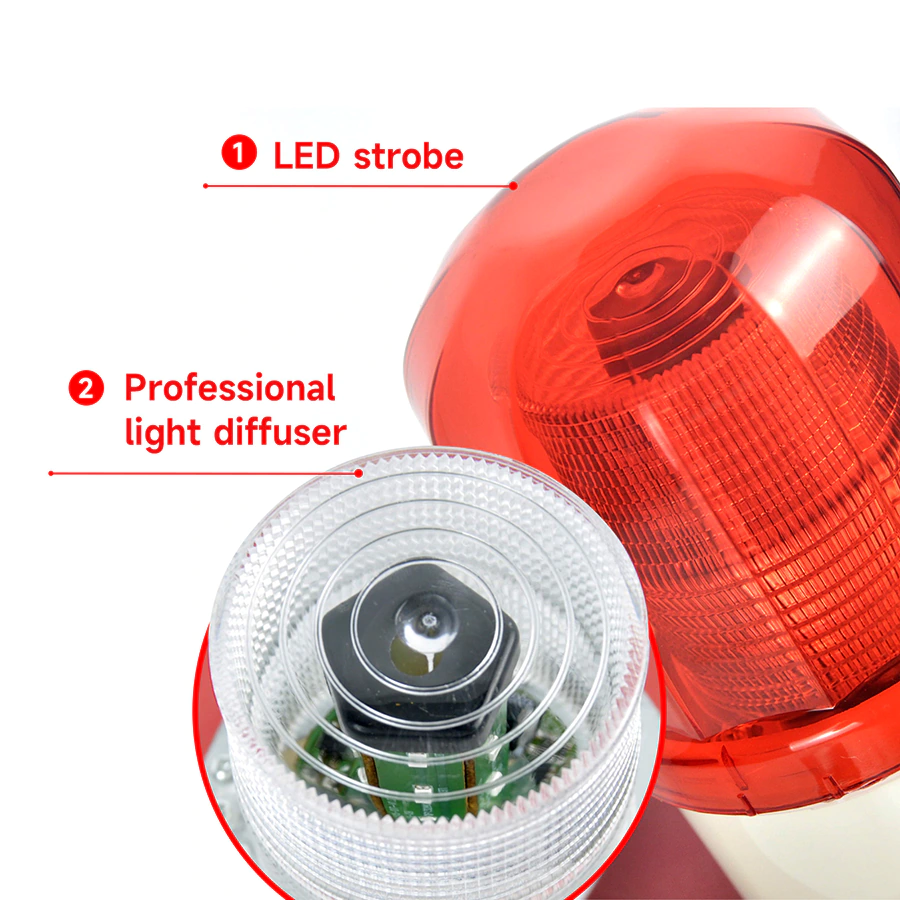

- Light Source
- LED
- Flash Mode
- Strobe Flash
- Light Colors
- Red / Yellow / Blue / Green
- Activation
- Power-on activation
Electrical & Connection
- Maximum Power
- 45W
- Input Voltage
- DC 12V / 24V
AC 24V / 110V / 220V / 380V - Power Connection
- Two-wire lead connection
- DC Wiring
- Positive / Negative polarity
- AC Wiring
- Line / Neutral connection
- Grounding
- Ground terminal provided

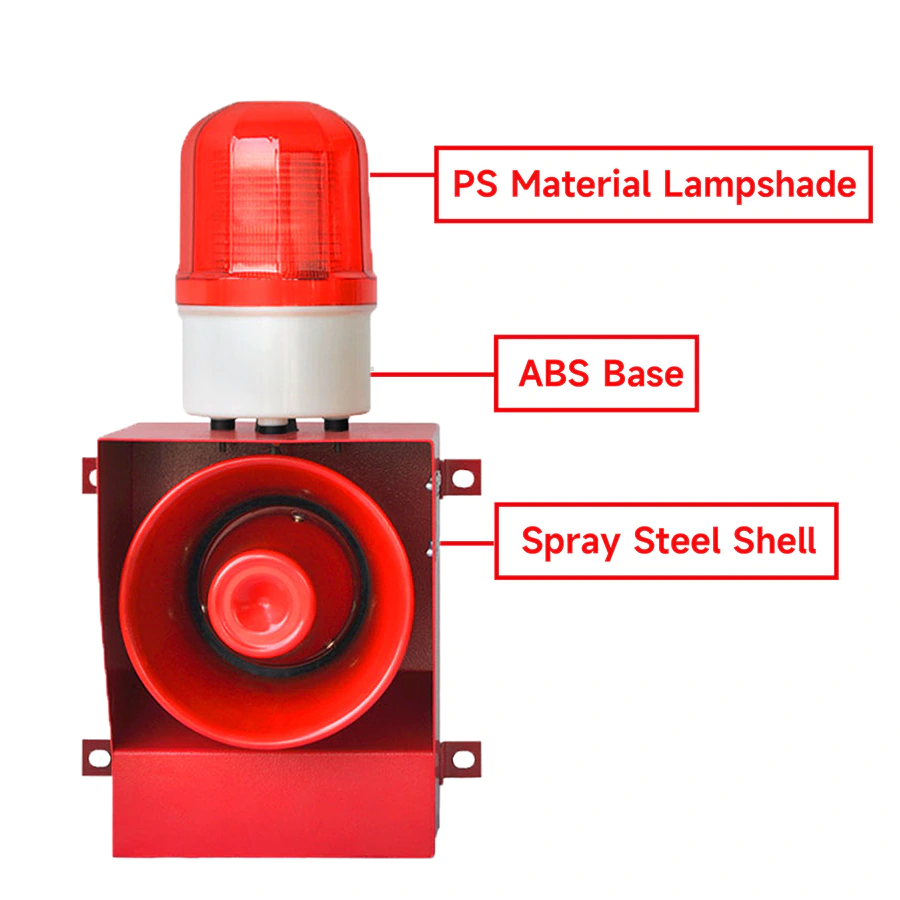

Mechanical & Environmental
- Protection Rating
- IP65
- Housing Material
- Cold-Rolled Steel
- Light Cover
- PS
- Operating Temperature
- -40°C to +70°C
- Working Humidity
- ≤95%
- Installation
- Wall Mount

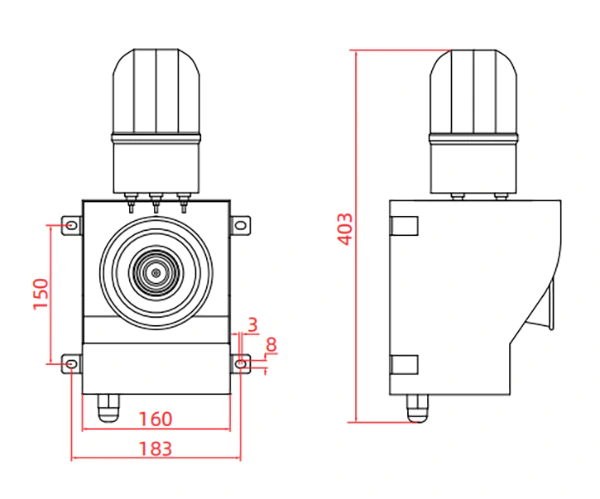

Dimensions & Installation
Standard ALX-200 base model dimensional reference. Click the drawing to view the full-size image.
- Overall Height
- 403 mm
- Overall Width
- 183 mm
- Body Width
- 160 mm
- Mounting Reference
- 150 mm
- Installation
- Wall Mount
ENGINEERING RESOURCES
Engineering Resources
View dimensional information or request model-specific wiring, technical and certification documents.
Certification support for ALX-200 configurations.
Available certification documents can be confirmed according to the selected ALX-200 model.
FREQUENTLY ASKED QUESTIONS
ALX-200 Series FAQs
Start with the required activation or control method. Then compare sound adjustment, backup power, impact protection or environmental requirements within the relevant configuration path.
ALX-200 configurations identified with the ADJ suffix include adjustable warning sound and USB audio update capability.
No. The specification section applies to the standard ALX-200 base model. Other configurations can differ in control, power, protection, construction or communication.
Yes. Select the model when known and request the required wiring, technical or certification documents through the Engineering Resources section.
ORDERING & PROJECT SUPPORT
Purchasing Information for ALX-200 Projects
From 1 pcMinimum Order
AvailableSamples
SupportedMixed Models
7–15 DaysTypical Lead Time
Final availability and lead time are confirmed according to the selected configuration, customization and order requirements.
APPLICATION REVIEW
Tell Us Your ALX-200 Requirements
Share your application and any known configuration requirements. We will review the suitable ALX-200 model and provide technical and quotation support.
