ALX-100 Series Industrial Alarm Sirens
Multiple Configurations for Different Control, Detection, Communication, Power and Installation Requirements
The ALX-100 Series is an industrial warning platform built around a standard power-on audible and visual base model, with multiple configurations for different project requirements.

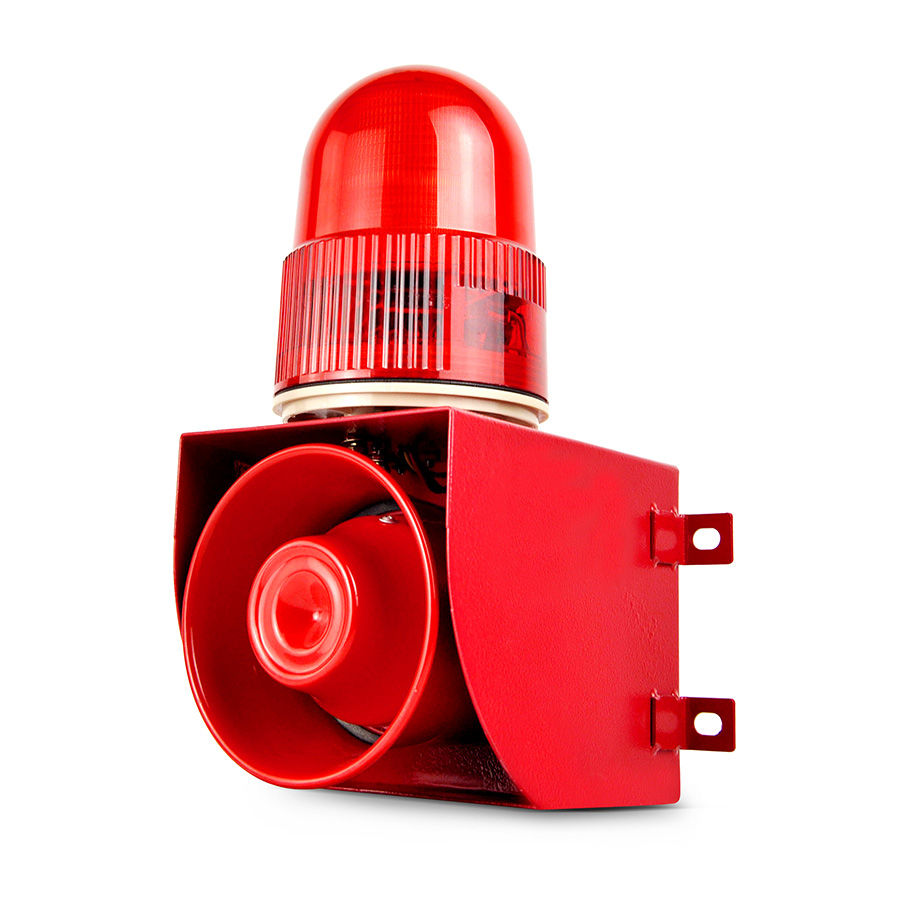

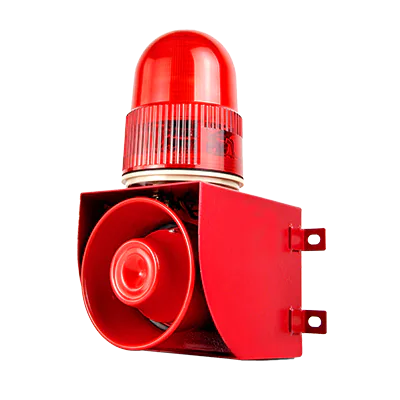

Standard Base Model
ALX-100
STANDARD ALX-100 — BASE MODEL REFERENCE
120 dB
Sound Output
25W
Maximum Power
Power-On
Activation
IP65
Protection Rating
These references apply to the standard ALX-100 base model. Other configurations may differ in control, power, protection, installation and communication.
CONFIGURATION SELECTION
Choose the ALX-100 Configuration by Requirement
Open the requirement group that matches your project, compare only the relevant models, then carry a confirmed selection into the inquiry.
01

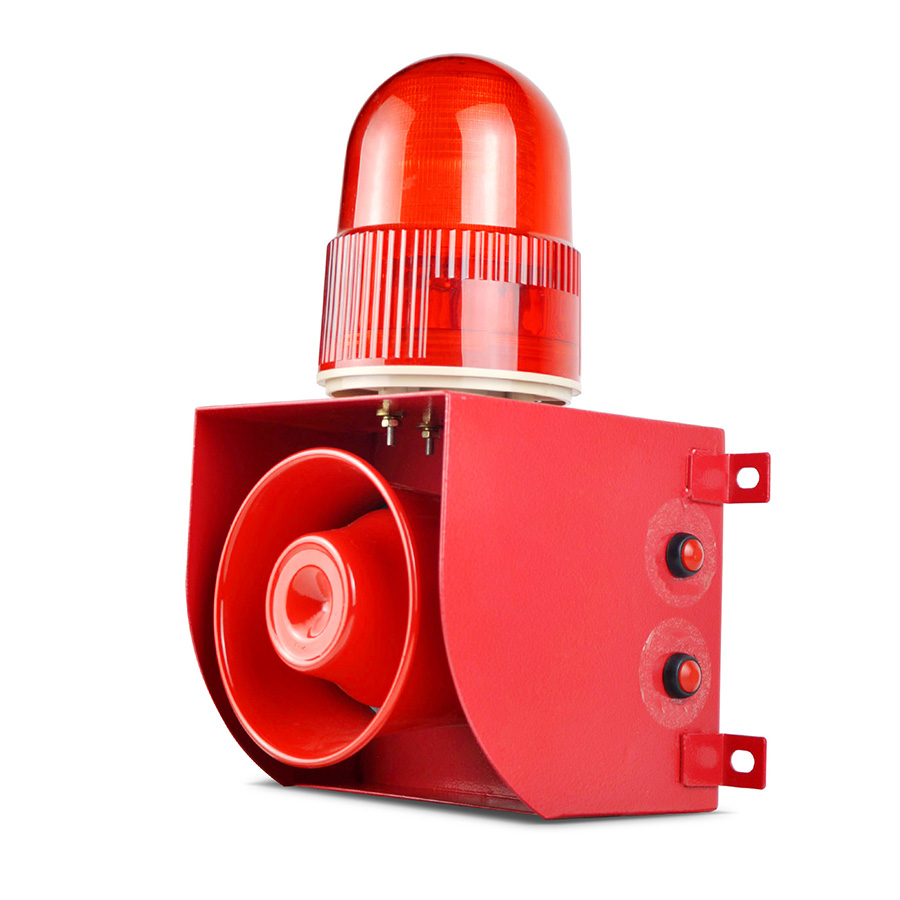

Start here for conventional power-on warning or locally adjustable alarm output.
02

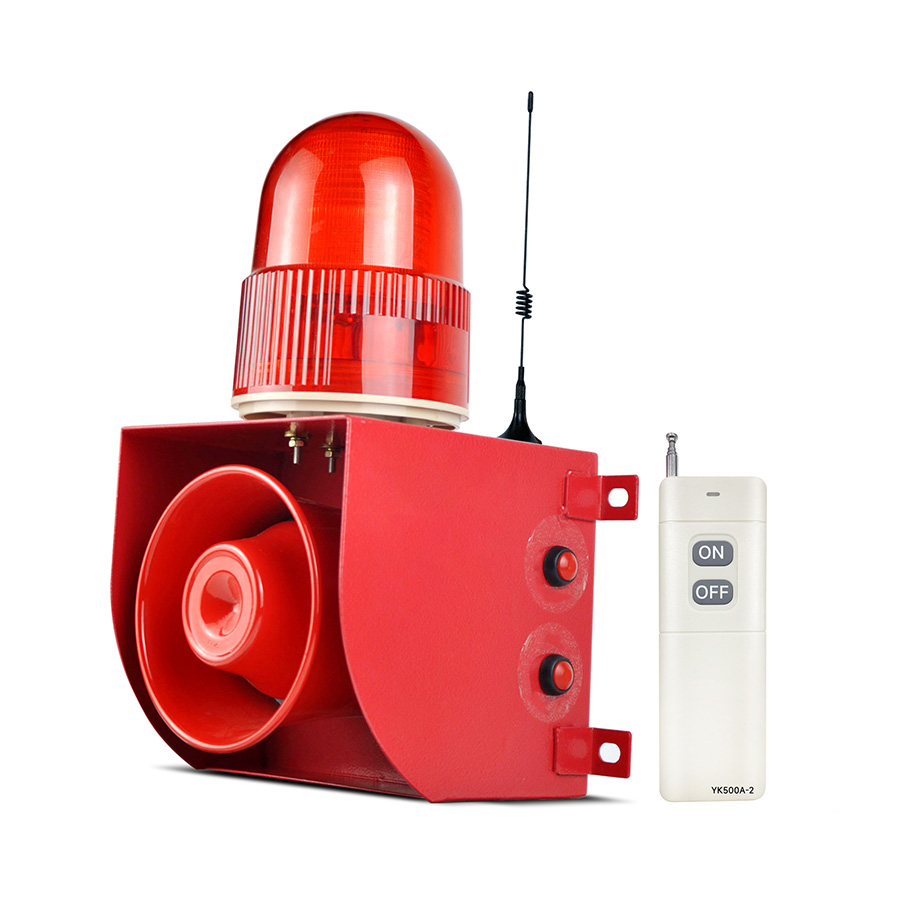

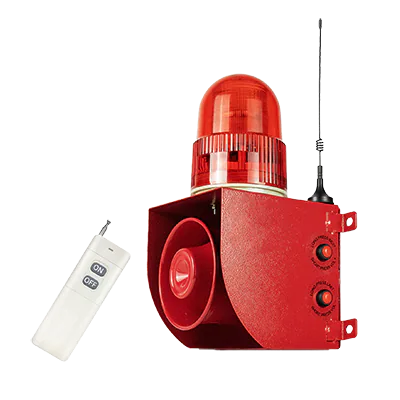

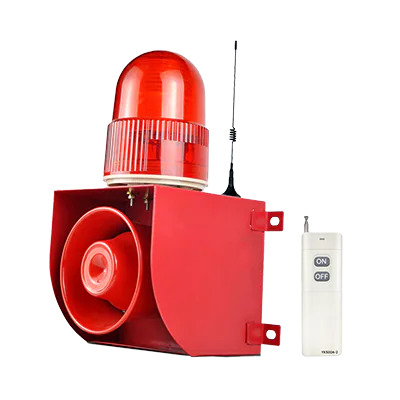

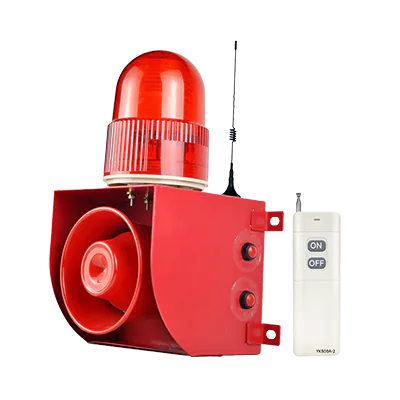

For applications where an operator needs to control the warning from another position.
03

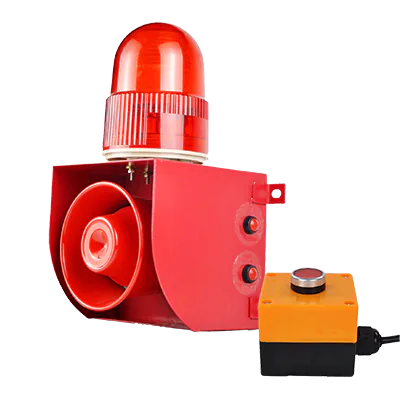

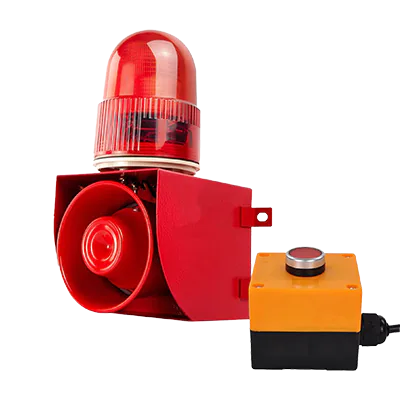

For warnings activated from equipment, control circuits, external audio or linked units.
04

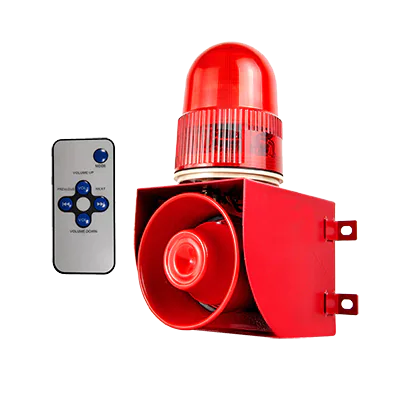

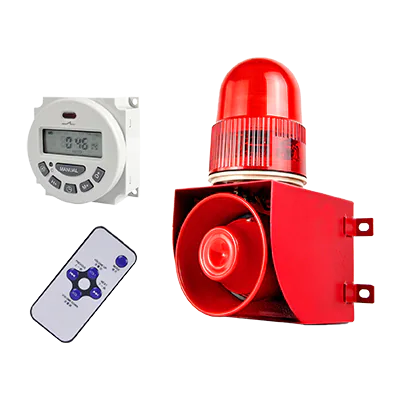

For automatic or timed warning activation.
05

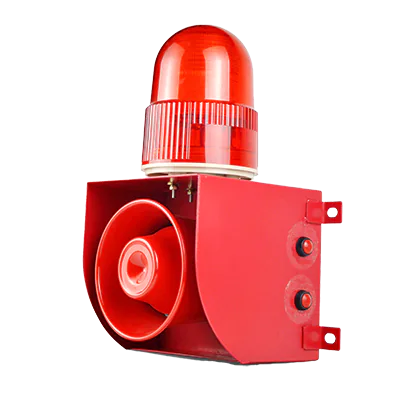

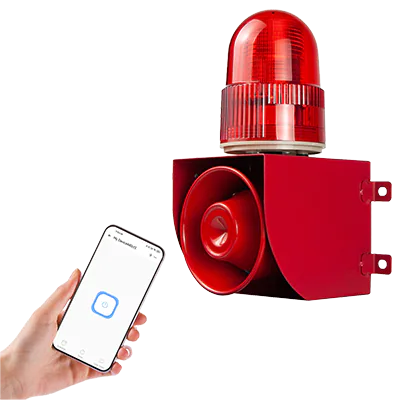

For industrial communication, Ethernet or Wi-Fi control requirements.
06

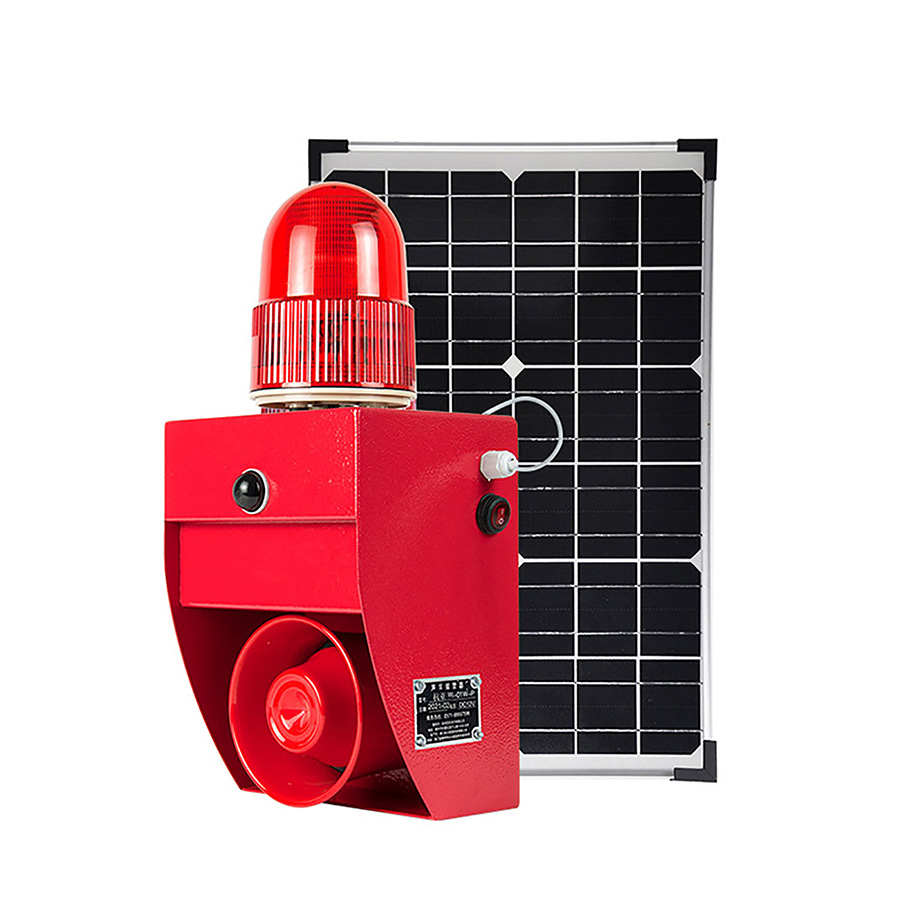

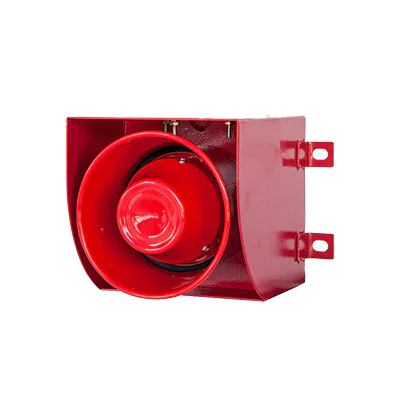

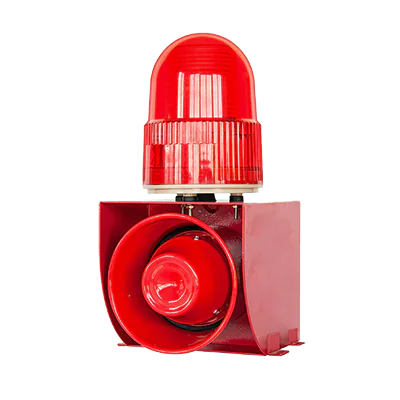

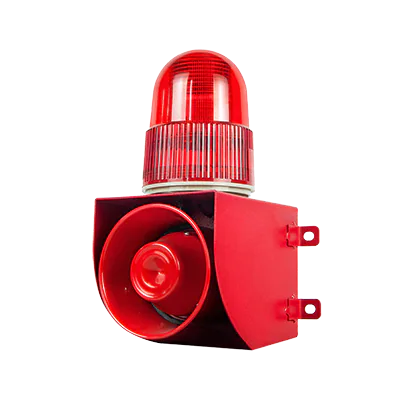

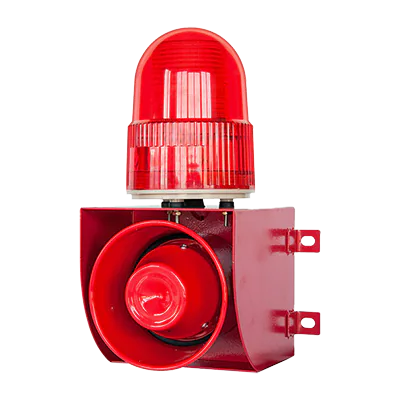

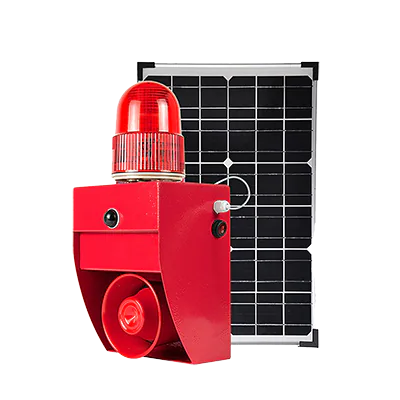

For solar power, alternative mounting, audible-only or demanding environments.
CONFIRM SELECTABLE CONFIGURATION
Carry Your Confirmed Choices Forward
Only Product Truth-confirmed options for the selected model are shown here. Unselected project conditions remain open.
Selected model:
Supply:
Light color:
Remote:
Link method:
Availability and complete specifications are confirmed according to the selected model and order requirements.
APPLICATION PATHS
Where the ALX-100 Series Can Fit
Use these application paths when the project still needs broader warning-method or installation guidance.

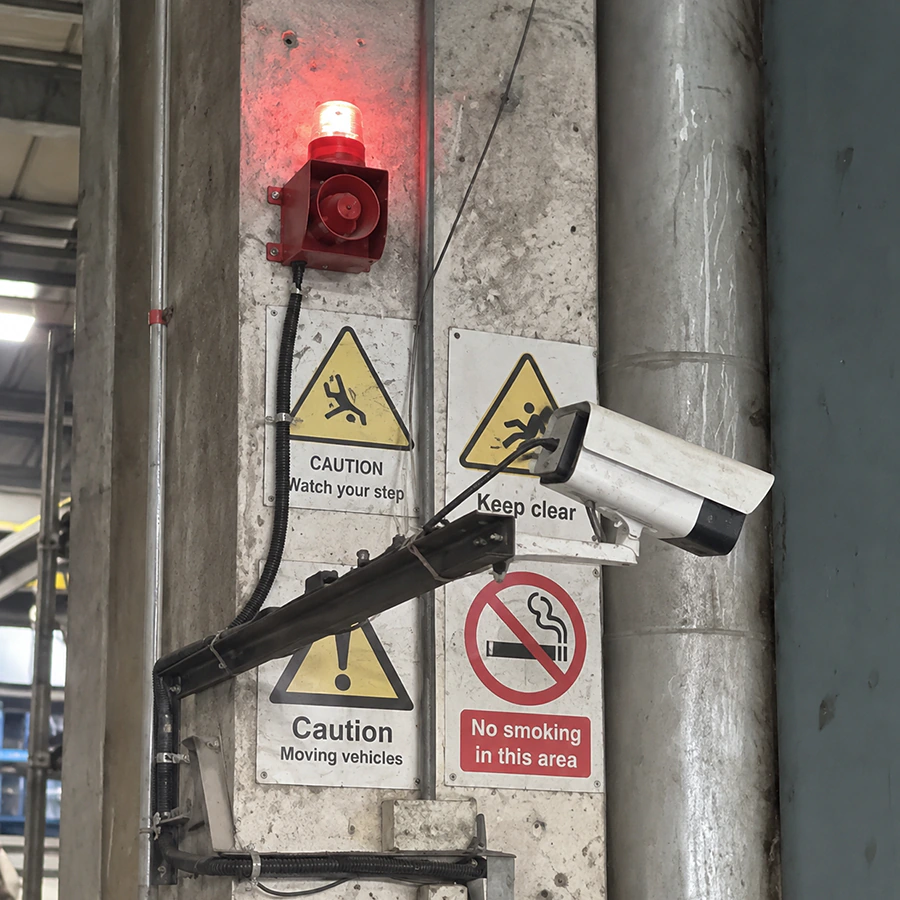

Factory & Shared Work Areas
For warnings intended to attract people across a shared workshop, warehouse or work area.
View Work Area Solution →Outdoor & Off-Grid Sites
For projects where outdoor conditions, available power or cabling affect the warning approach.
View Outdoor Solution →Remote, Sensor & External Control
For applications driven by remote activation, detection, signal input or connected control.
View Remote Control Solution →Final ALX-100 model selection still depends on the required warning function, control method, power supply and installation conditions.
BASE MODEL SPECIFICATIONS
ALX-100 Base Model Specifications
The specifications below apply to the standard ALX-100 base model. Other configurations may differ and should be confirmed separately.
BASE MODEL — ALX-100
Do not apply these values automatically to every ALX-100 configuration.
Warning & Operation

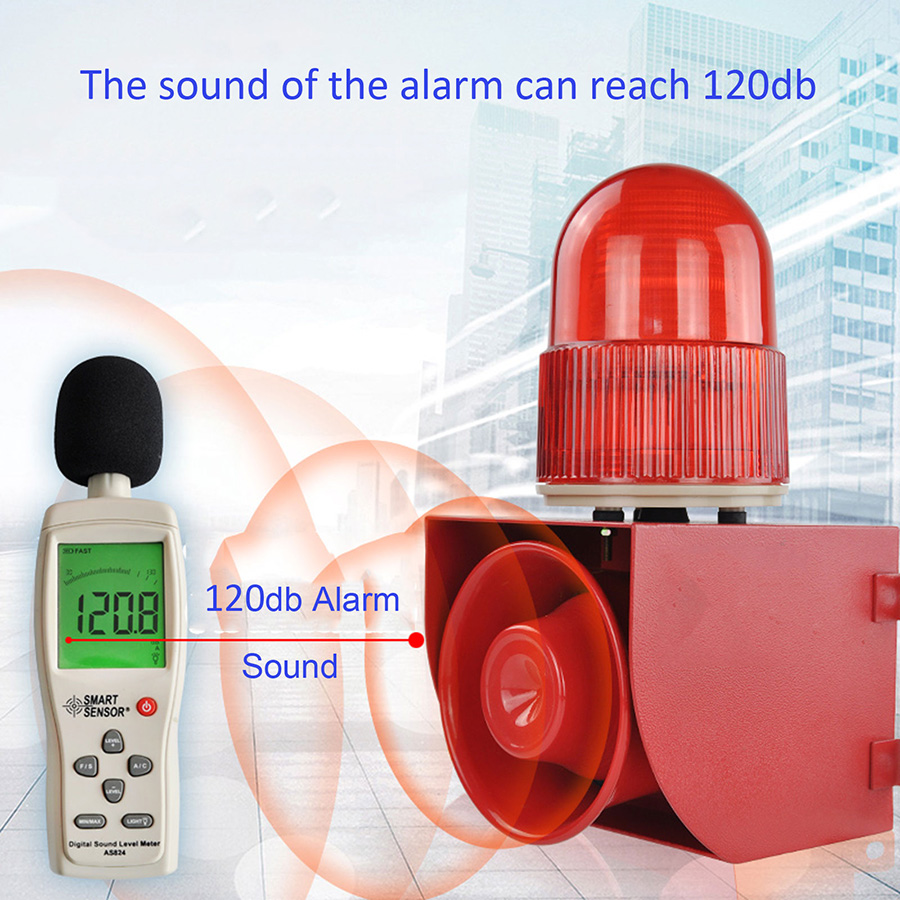

- Sound Level
- 120 dB
- Warning Method
- Audible & Visual

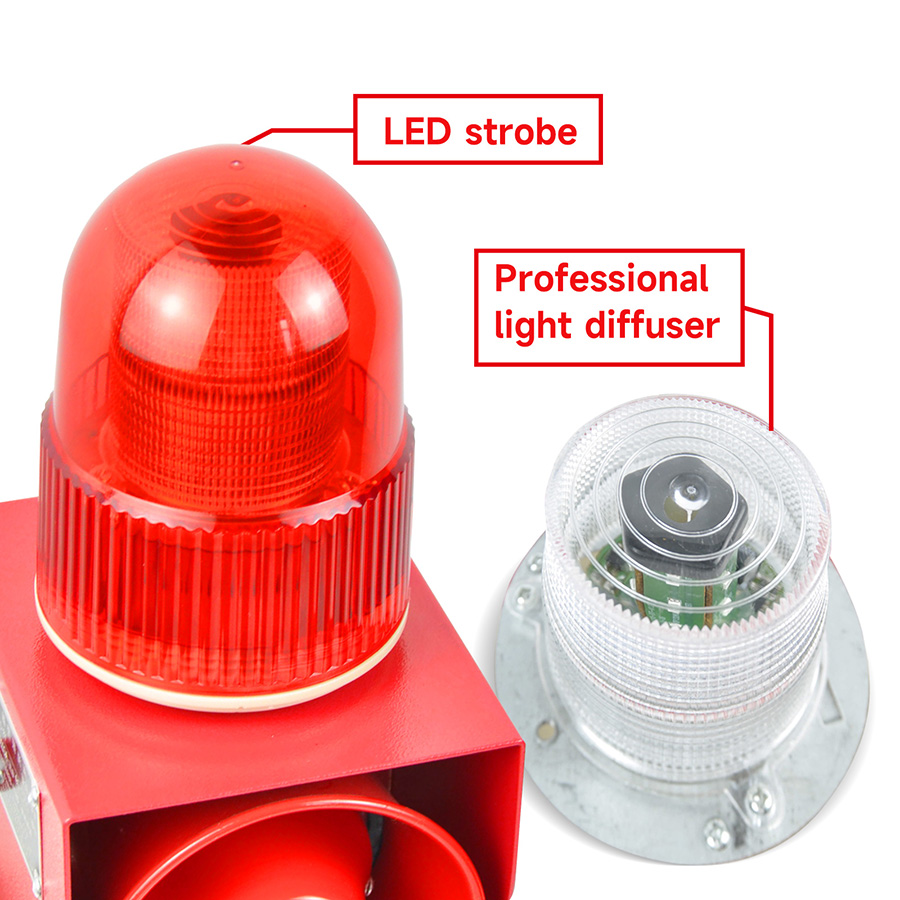

- Light Source
- LED
- Flash Mode
- Strobe Flash
- Alarm Voice
- Customizable for application requirements
- Activation
- Power-on activation; stops when supply power is disconnected
Electrical & Connection
- Maximum Power
- 25W
- Input Voltage
- DC 12V / 24V;
AC 48V / 110V / 220V / 380V - Power Connection
- Two-wire lead connection
- DC Wiring
- Positive / Negative polarity
- AC Wiring
- Line / Neutral connection
- Grounding
- Ground terminal provided
Mechanical & Environmental

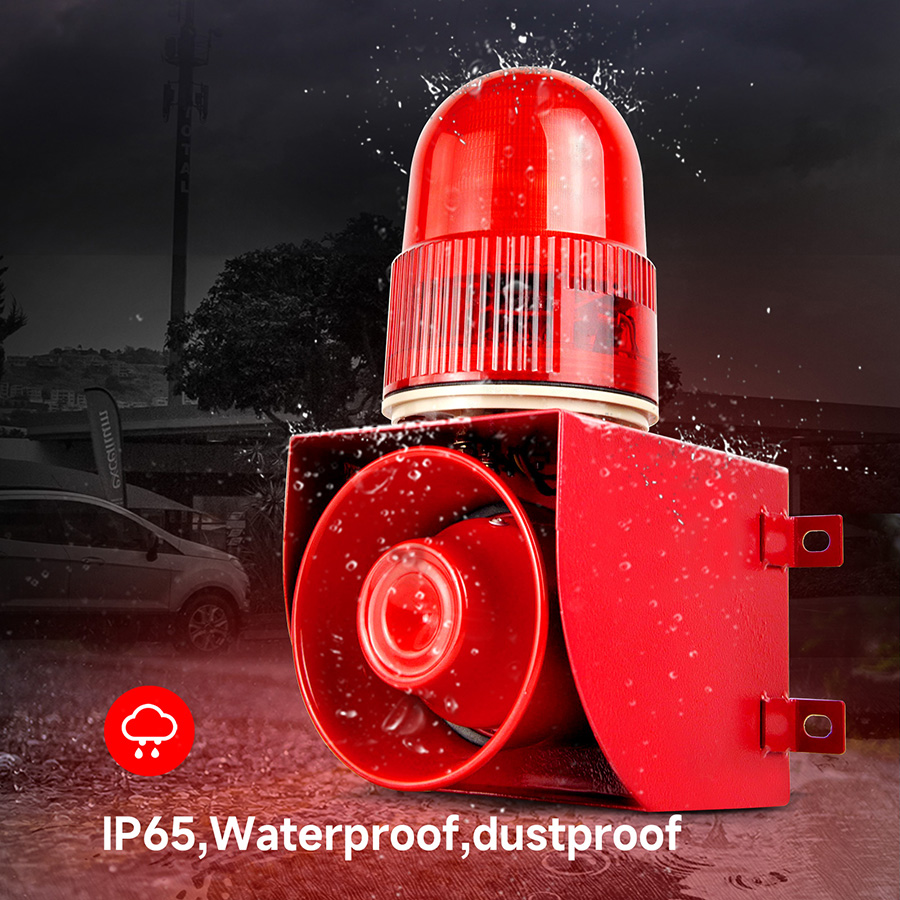

- Protection Rating
- IP65
- Housing Material
- Cold-Rolled Steel
- Light Cover
- PS
- Operating Temperature
- -40°C to +70°C
- Working Humidity
- ≤95%
- Installation
- Wall Mount
- Light Colors
- Red / Yellow / Blue / Green
Dimensions & Installation

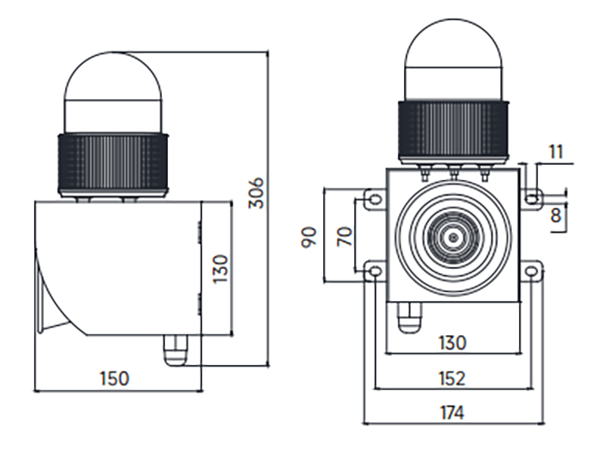

Standard ALX-100 base model dimensional reference. Click the drawing to view the full-size image.
- Overall Height
- 306 mm
- Overall Width
- 174 mm
- Body Width
- 130 mm
- Depth
- 150 mm
- Installation
- Wall Mount
Specifications vary by model. Select an ALX-100 configuration above or request model-specific technical information for confirmation.
ENGINEERING RESOURCES
Engineering Resources
View dimensional information or request model-specific wiring, technical and certification documents.
Certification support for ALX-100 configurations.
Available CE, RoHS and model-specific certification documents can be confirmed according to the selected model.
FREQUENTLY ASKED QUESTIONS
ALX-100 Series FAQs
Start with what needs to differ from the standard ALX-100: control, detection, communication, mounting, power or environmental requirements. Then compare the relevant group above.
Describe the application, required warning function, voltage and control method during inquiry. The exact model does not need to be selected first.
No. The specification table above applies to the standard ALX-100 base model. Other configurations can differ in power, control, protection, installation and communication.
Yes. Select the model when known and request the required wiring, technical or certification documents through the Engineering Resources section.
ORDERING & PROJECT SUPPORT
Purchasing Information for ALX-100 Projects
From 1 pcMinimum Order
AvailableSamples
SupportedMixed Models
7–15 DaysTypical Lead Time
Final availability and lead time are confirmed according to the selected configuration, customization and order requirements.
APPLICATION REVIEW
Tell Us Your ALX-100 Requirements
Share your application and any known configuration requirements. We will review the suitable ALX-100 model and provide technical and quotation support.
