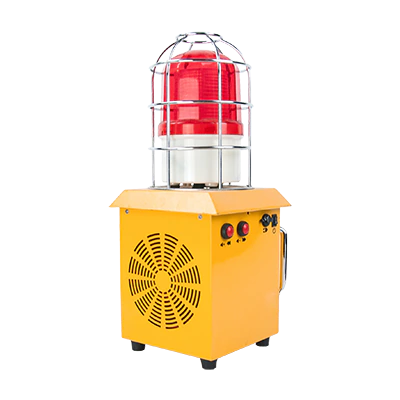

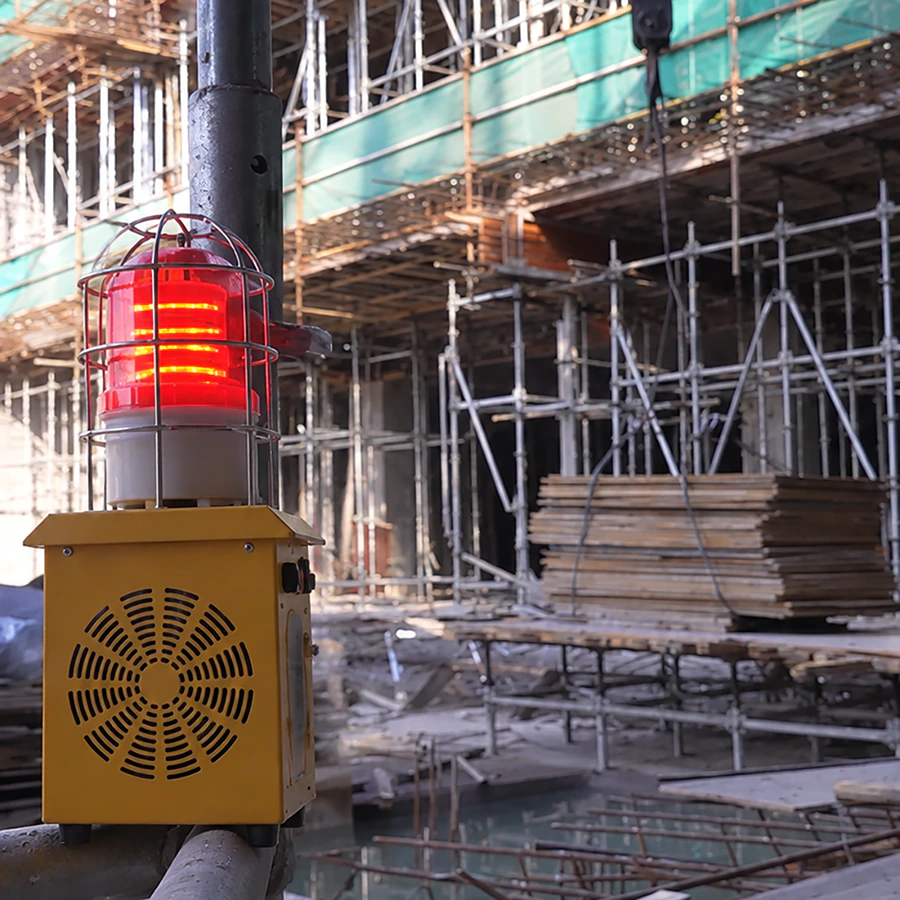

ALX-610
Portable Rechargeable Alarm Siren
Portable warning for temporary work areas, construction sites and locations where permanent alarm wiring is impractical.
- 15W · up to 120 dB
- Approx. 8 hours after full charge
- USB stored-audio update
SPECIAL-PURPOSE INDUSTRIAL WARNING
ALX-600 Series Special-Purpose Industrial Alarm Sirens
Purpose-built platforms for portable rechargeable warning, recorded or live voice communication, and emergency warning with backup power and floodlighting.
The ALX-600 Series covers warning applications where portability, spoken communication or emergency operation is more important than selecting a common base platform.
SERIES STRUCTURE
3 PURPOSE-BUILT PLATFORMS
ALX-600 SERIES — PLATFORM RANGE REFERENCE
3 Platforms
Distinct Hardware Formats
120–130 dB
Platform-Dependent Output
IP65
Documented Protection Rating
Portable / Fixed
Installation Formats
Power, supply method, battery role, controls and dimensions differ by platform. Confirm the selected ALX-600 model before installation or procurement.
PLATFORM & MODEL SELECTION
What Does the Warning Point Need to Do?
Start with the operating requirement. The three ALX-600 hardware platforms are designed around different warning tasks, rather than one common base-model architecture.
PORTABLE RECHARGEABLE WARNING
Need a warning point that can move between locations?
Choose ALX-610 for local portable operation, or ALX-610-RC when wireless ON / OFF operation is required from a separate working position.

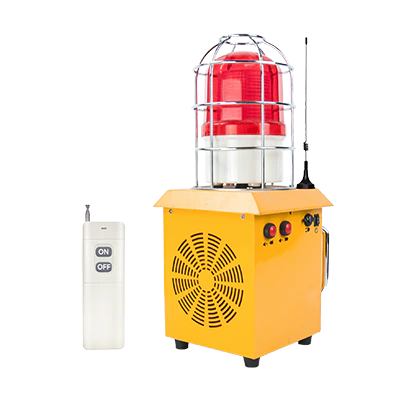

ALX-610-RC
Portable Rechargeable Alarm with Wireless Remote
Uses the ALX-610 portable platform and adds wireless ON / OFF operation for applications where the operator works away from the alarm.
- Portable rechargeable platform
- Wireless ON / OFF control
- Remote details confirmed per supplied configuration
RECORDED & LIVE VOICE
Need spoken instructions or live announcements?
Choose ALX-620 when the warning point needs built-in warning audio, on-site recording, recorded-message playback or live microphone communication.

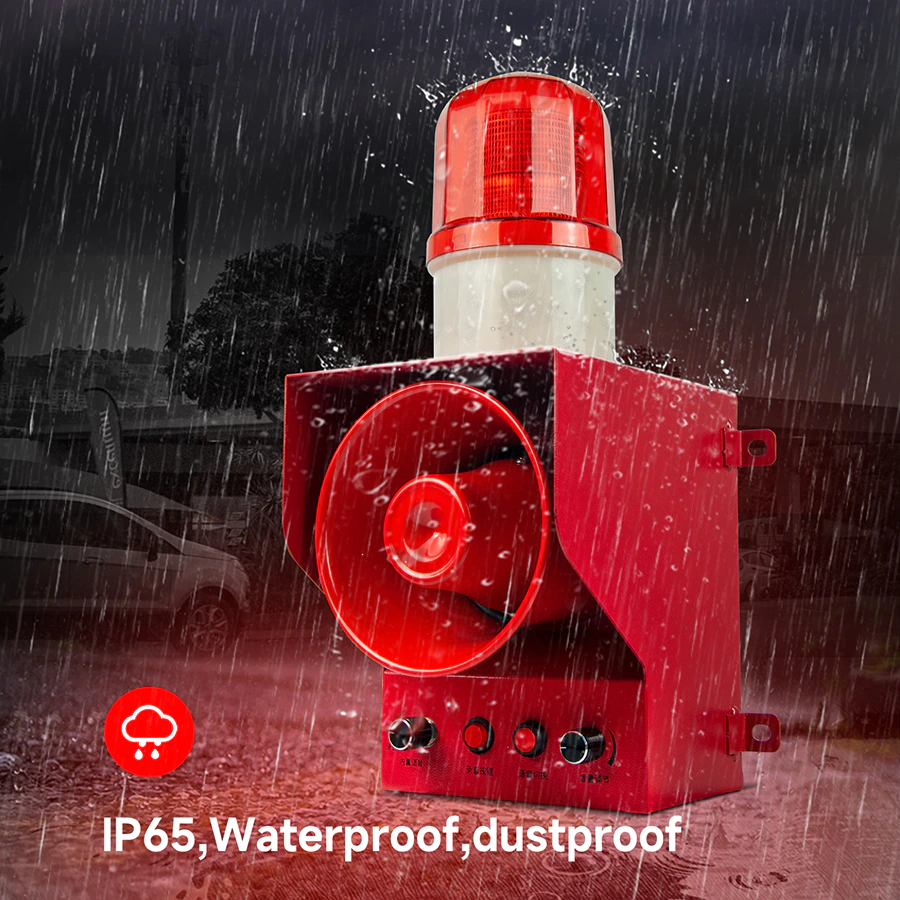

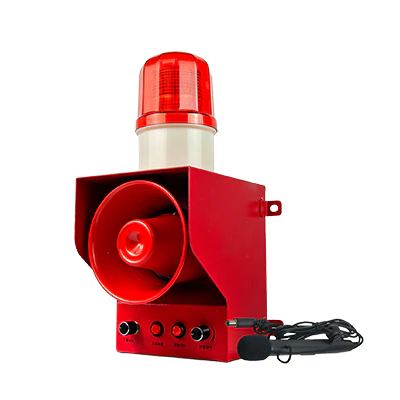

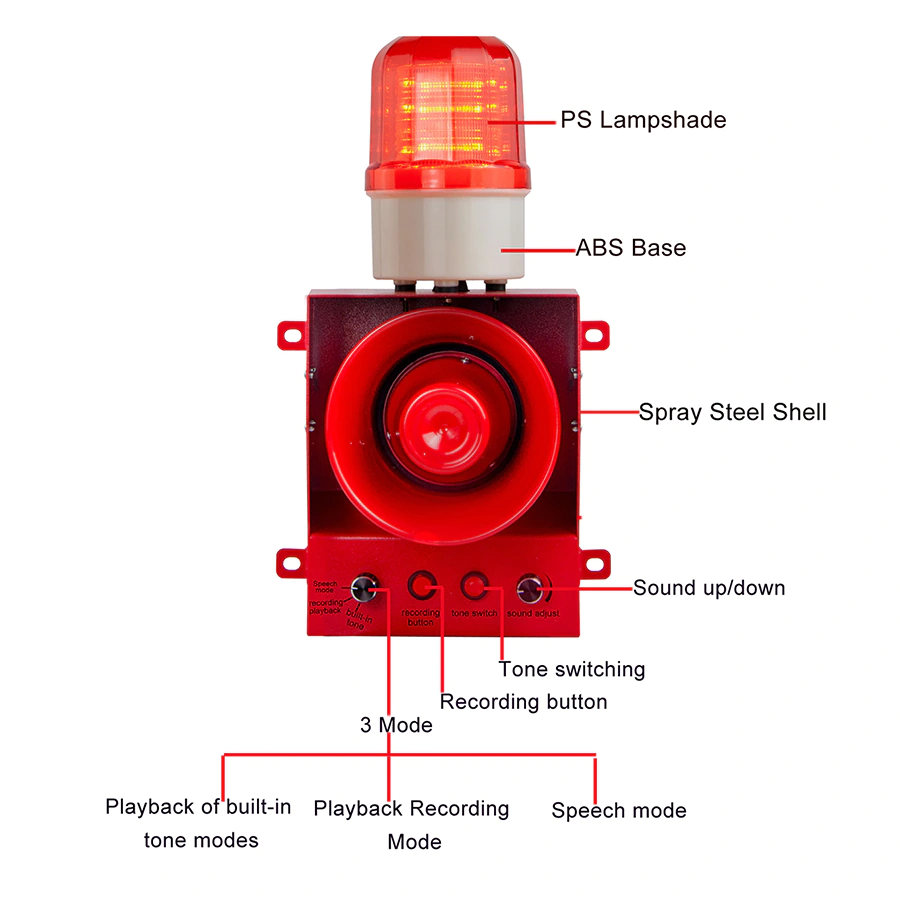

ALX-620
Recordable Voice & PA Alarm Siren
Fixed industrial warning platform for recorded messages, on-site recording and live microphone announcements where spoken information is required.
- 30W · up to 130 dB
- Recording up to 4 minutes
- Recorded playback + live microphone / PA
EMERGENCY BACKUP & LIGHTING
Need warning and lighting during a mains power failure?
Choose ALX-630 where audible warning and local floodlighting must remain available after external AC power is interrupted.

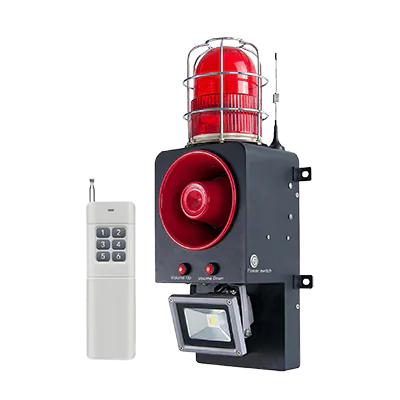

ALX-630
Emergency Backup Siren with Floodlight
Emergency warning platform combining an alarm horn, local floodlight, backup battery, emergency control and wireless remote operation.
- 45W maximum · up to 130 dB
- 30W horn + 10W floodlight
- Approx. 2 hours emergency operation
Selected Model:
Continue to Application Review
Not sure which platform fits the application?
Tell us whether the warning point needs to be portable, provide recorded or live spoken information, or continue operating during a mains power failure.
Ask for Platform Recommendation →
PLATFORM COMPARISON
Key Differences Across the Three Hardware Platforms
Use this comparison only to confirm the main platform difference. Detailed engineering data remains in the specification tables below.
| Selection Point | ALX-610 Platform Portable Rechargeable | ALX-620 Voice & PA | ALX-630 Emergency Backup |
|---|---|---|---|
| Installation | Portable / Movable | Fixed / Wall-Mounted | Fixed / Wall-Mounted |
| Battery Role | Main portable operating power | Not part of documented standard configuration | Emergency backup power |
| Remote Operation | Available on ALX-610-RC | — | Wireless remote operation |
| Voice / Audio | Stored warning audio with USB update | Recording, playback & live microphone | Selectable warning tones / voice |
| Distinctive Function | Portable rechargeable warning | Recorded and live spoken information | Floodlight + power-failure operation |
APPLICATION FIT
Start from the Application When the Product Is Not Yet Defined
If the operating situation is already clear but the exact ALX-600 platform is not, use the relevant application path before final model selection.
Machinery & Equipment Warning
For equipment warning points where installation, operating method and personnel notification need to be considered together.
View Machinery Solution →Factory & Shared Work Areas
For production areas and shared industrial spaces where workers need clear local warning or spoken information.
View Work Area Solution →Outdoor & Temporary Warning
For temporary work zones or sites where permanent wiring may be impractical and a portable warning platform may be required.
View Outdoor Solution →Remote & Wireless Warning Control
For applications where operators need to activate or coordinate the warning point from another location.
View Remote Control Solution →
TECHNICAL SPECIFICATIONS
ALX-600 Platform Specifications
ALX-610, ALX-620 and ALX-630 are different hardware platforms. Use the specification table for the selected platform rather than treating these values as Series-wide.
ALX-610 — Portable Rechargeable
- Charging Input
- AC220V
- Maximum Power
- 15W
- Sound Level
- Up to 120 dB
- Warning Method
- Audible + Visual
- Light Source
- LED
- Light Mode
- Flashing
- Beacon Colors
- Red / Yellow / Blue / Green
- Stored Audio Update
- USB
- Audio Storage
- 4M
- Operating Time
- Approx. 8 Hours After Full Charge
- Protection Rating
- IP65
- Enclosure / Cover
- Cold-Rolled Steel / PS
- Operating Temperature
- -20°C to +60°C
- Working Humidity
- ≤95%
ALX-620 — Recordable Voice & PA
- Supply Options
- DC12V / DC24V / AC110V / AC220V / AC380V
- Maximum Power
- 30W
- Sound Level
- Up to 130 dB
- Warning Method
- Audible + Visual
- Light Source
- LED
- Light Mode
- Flashing
- Beacon Colors
- Red / Yellow / Blue / Green
- Recording
- Supported
- Maximum Recording
- 4 Minutes
- Live Microphone / PA
- Supported
- Protection Rating
- IP65
- Connection
- 2-Wire Power Connection
- Mounting
- Wall-Mounted
- Operating Temperature
- -40°C to +70°C
- Working Humidity
- ≤95%
ALX-630 — Emergency Backup
- Supply
- AC220V ±10%
- Maximum Power
- 45W
- Horn Power
- 30W
- Floodlight Power
- 10W
- Sound Level
- Up to 130 dB
- Warning Method
- Audible + Visual + Lighting
- Light Source
- LED
- Beacon Colors
- Red / Yellow / Blue / Green
- Protection Rating
- IP65
- Backup Battery
- 14.8V / 5000mAh Lithium
- Emergency Operation
- Approx. 2 Hours
- Remote Range
- Approx. 2 km in Open Area
- Unit-to-Unit Range
- Approx. 800 m in Open Area
- Mounting
- Wall-Mounted
- Operating Temperature
- -20°C to +60°C
- Working Humidity
- ≤95%
ALX-610-RC configuration
ALX-610-RC uses the portable rechargeable ALX-610 platform and adds wireless ON / OFF operation. Charging input is AC220V. Confirm the supplied remote-control configuration separately.

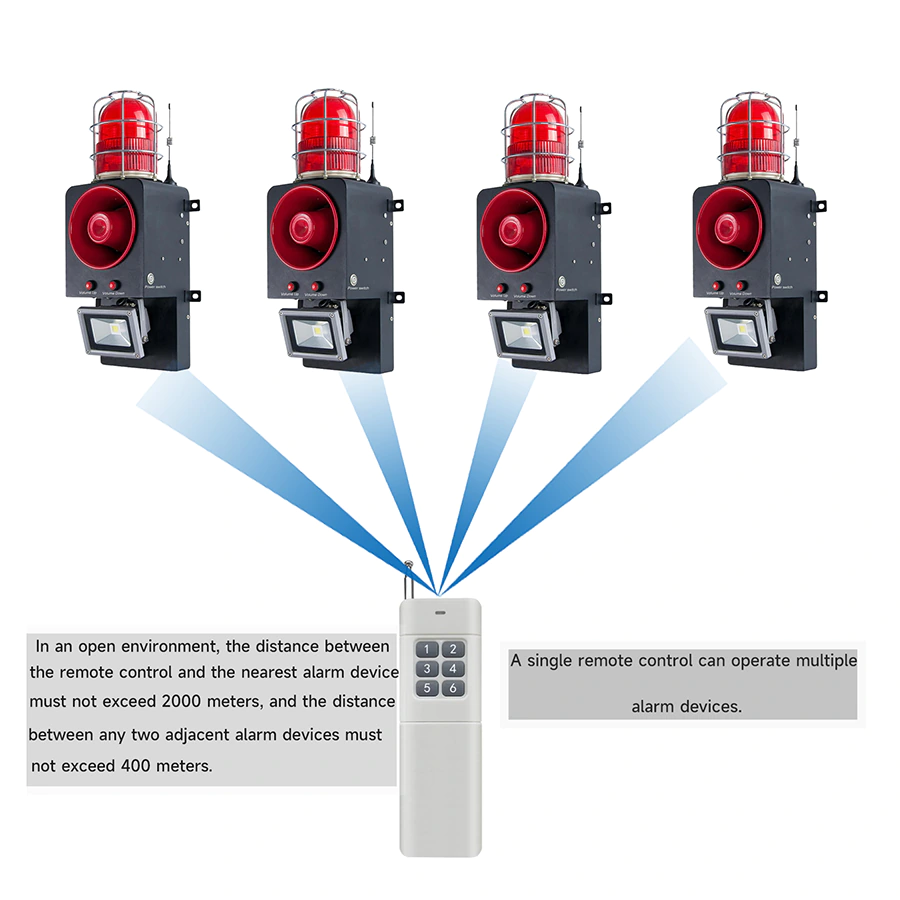

Wireless range references
ALX-630 wireless ranges are documented as open-area reference values. Buildings, machinery and metal structures can reduce real installation range.
ALX-600 Platform Dimensions
Each core ALX-600 platform uses a different enclosure. Review the drawing for the selected platform before preparing mounting space or surrounding equipment.

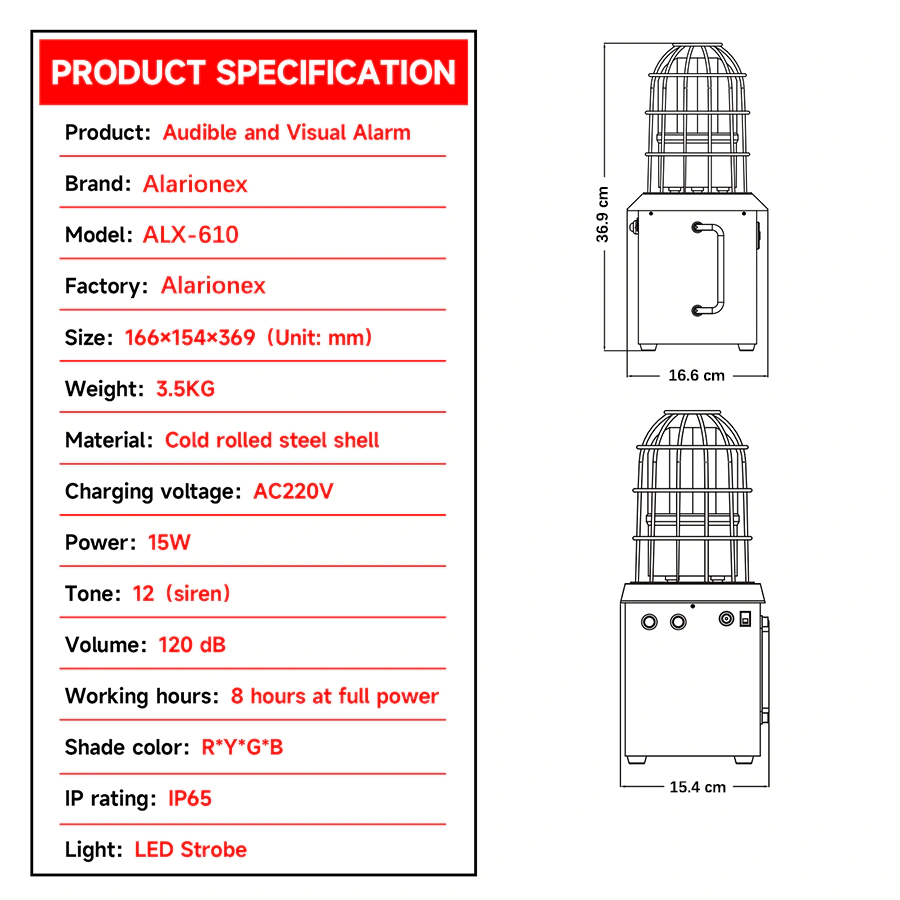

ALX-610
Portable Alarm Dimensions
- Overall Height
- 369 mm
- Overall Width
- 166.5 mm
- Overall Depth
- 154 mm

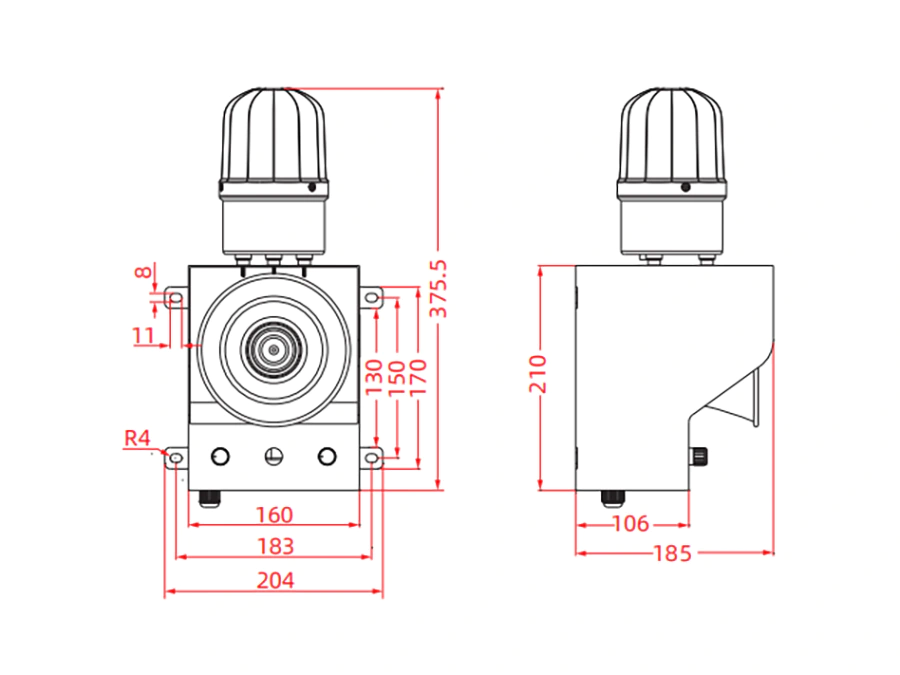

ALX-620
Voice & PA Alarm Dimensions
- Overall Height
- 375.5 mm
- Overall Width
- 204 mm
- Overall Depth
- 185 mm

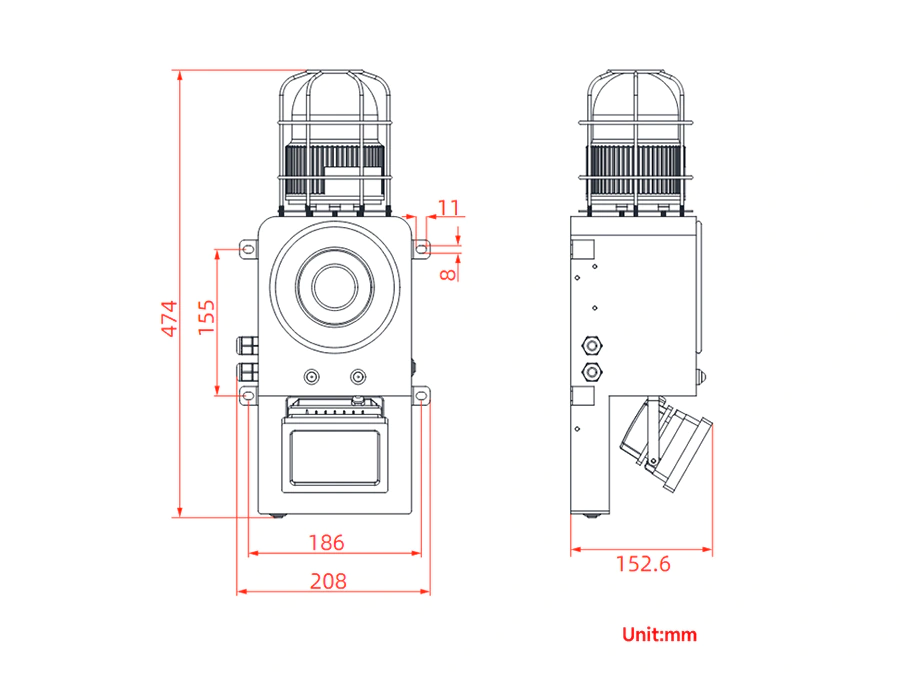

ALX-630
Emergency Alarm Dimensions
- Overall Height
- 474 mm
- Overall Width
- 208 mm
- Overall Depth
- 152.6 mm
Confirm the exact supplied platform and configuration before preparing mounting holes, brackets or surrounding equipment.
ENGINEERING RESOURCES
Technical Information for Setup & Installation
Request information for the selected platform rather than assuming ALX-610, ALX-620 and ALX-630 share the same operating controls or connections.
Need technical information for a specific ALX-600 platform?
Tell us which platform you are evaluating and we will confirm the available drawings, operating instructions and connection information.
FREQUENTLY ASKED QUESTIONS
ALX-600 Series FAQs
Choose by operating requirement first. ALX-610 is the portable rechargeable platform, ALX-620 is intended for recorded or live spoken information, and ALX-630 provides emergency warning and floodlighting during a mains power failure.
Both belong to the portable rechargeable platform. ALX-610 is the standard local-operation model, while ALX-610-RC adds wireless ON / OFF operation. Confirm the supplied remote-control configuration before ordering.
No. They are different hardware platforms with different power ratings, battery roles, controls, operating functions and dimensions. Use the specification set for the selected platform.
Yes. Select the known model when possible and request the relevant technical information through Engineering Resources. Available documents can then be confirmed for that specific platform.
ORDERING INFORMATION
Purchasing Reference
From 1 Piece
Minimum Order
For sample evaluation or low-volume project requirements.
Available
Samples
Confirm the required platform and configuration before sample arrangement.
Supported
Mixed Models
Different ALX-600 platforms and configurations can be combined in one project order.
7–15 Days
Typical Lead Time
Reference for standard and configured orders; confirm with the final requirement.
APPLICATION REVIEW
Tell Us Your ALX-600 Requirements
Share the known model, power source, application and control requirements. We will review the project and help confirm the suitable ALX-600 platform.
