Portable Magnetic Strobe and Rotating Beacons with Replaceable AA or Rechargeable Battery Power
The ALX-B Portable range provides self-powered warning without permanent wiring or vehicle power. Choose between a replaceable-AA strobe platform and a rechargeable rotating platform, then select visual-only or buzzer warning.
For samples and low-volume requirements.
Standard configurations can be arranged for evaluation.
Portable platforms and sound options can be combined.
Typical timing for standard and configured orders.
Select the battery platform first. The power system also determines the visual warning method and protection level. Then choose visual-only or buzzer warning.

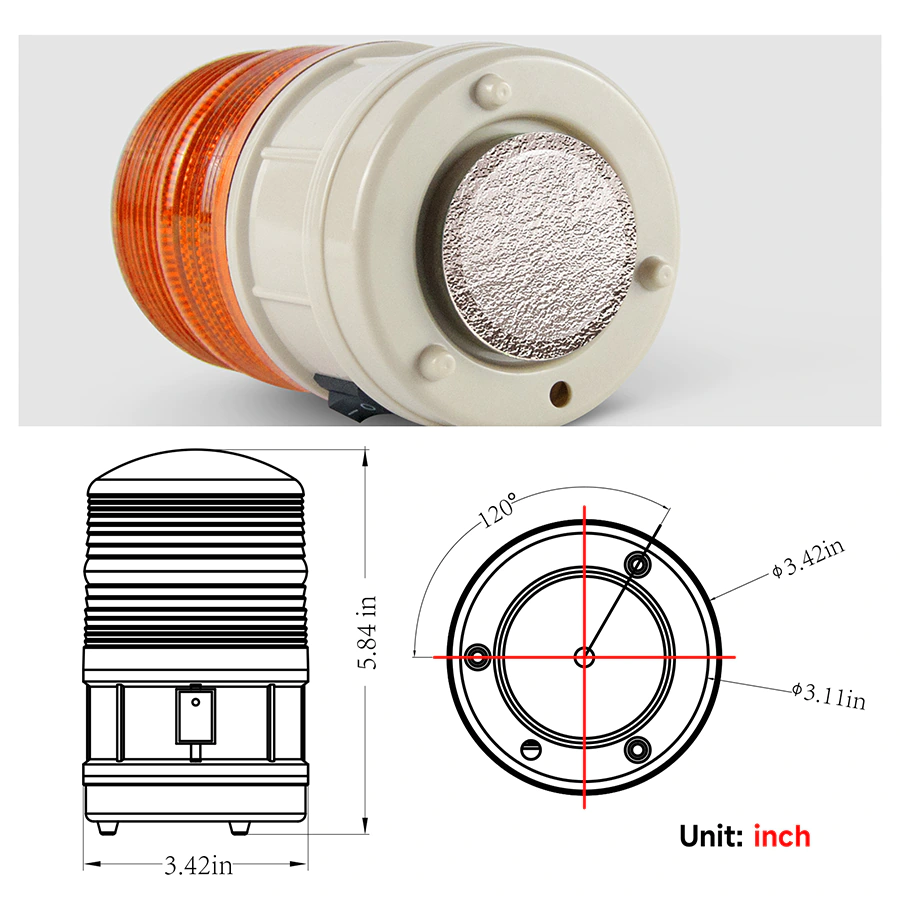

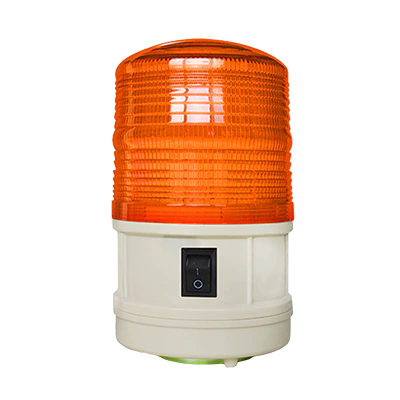

For temporary warning where field-replaceable batteries and flashing visual indication are preferred.
Four AA batteries are required and are not included.

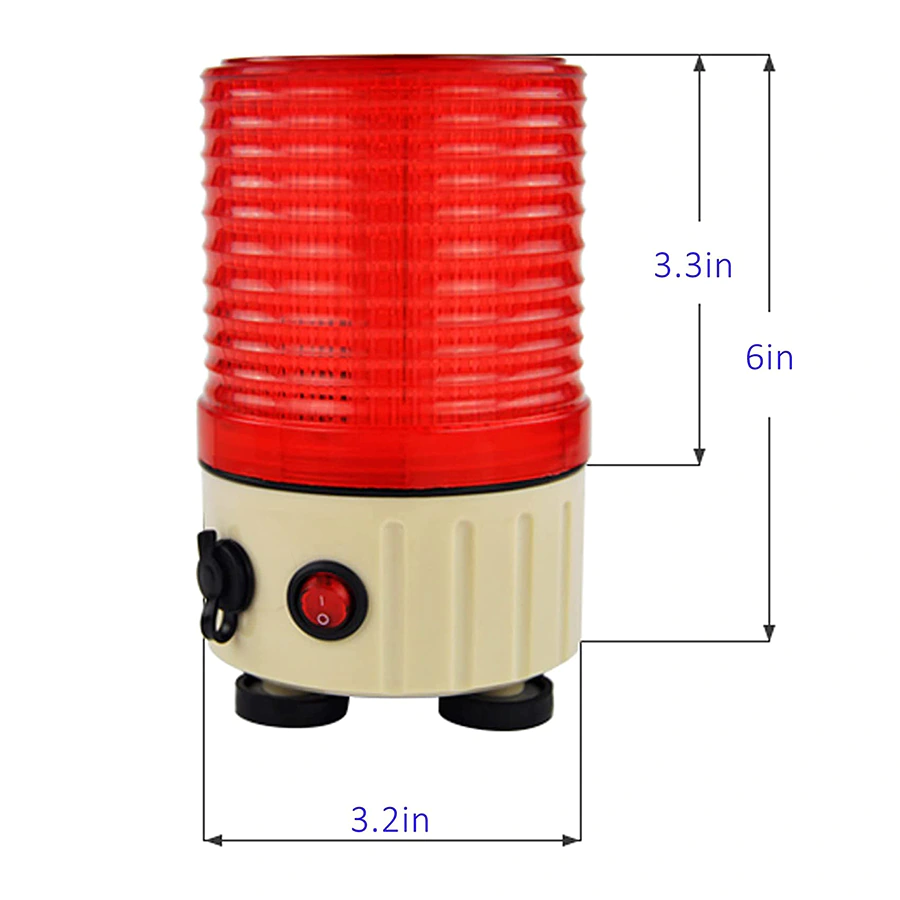

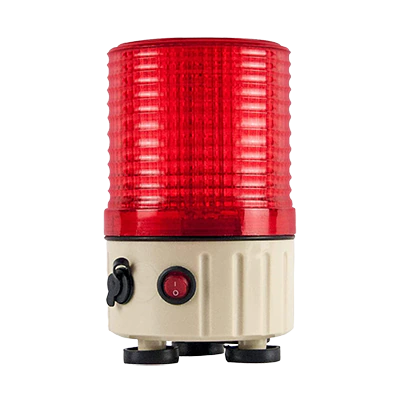

For repeated portable use where an internal rechargeable battery, rotating warning and IP65 protection are preferred.
Current specifications list approximately 2 hours charging and approximately 10 hours working time.
Use portable battery beacons where warning points need to be placed, removed or moved without preparing a fixed electrical connection.
For temporary work zones, maintenance tasks and removable warning points in factories and industrial work areas.
View Factory & Work-Area Solution →For movable equipment and temporary site locations that need independent battery-powered warning.
Discuss Your Application →Battery-powered models can be temporarily placed on suitable metal surfaces. For vehicle-powered warning, use the dedicated vehicle beacon range.
View Vehicle Magnetic Beacons →Magnetic mounting requires a suitable ferrous metal surface and should be evaluated for the actual movement, vibration and operating conditions.
ALX-B-5088 and ALX-B-16 use different battery, warning and protection platforms. Apply specifications only to the corresponding hardware platform.
Operating time depends on battery specification, battery condition, warning mode and environmental conditions.
Charging and working times are approximate and may vary with battery condition, use and environmental conditions.
Request information for the exact platform when operating duration, charging, magnetic placement or project conditions need to be reviewed.
Do not apply a fixed operating-time value to ALX-B-5088. Actual runtime depends on the installed AA batteries and operating conditions. ALX-B-16 working time is currently listed as approximately 10 hours.
Start with replaceable AA or rechargeable power. Then decide whether audible warning is required and confirm the expected operating pattern, protection requirement and magnetic placement surface.
A single fixed runtime should not be applied automatically. Operating time depends on the AA battery specification, battery condition, warning configuration and operating environment.
They can be used for temporary magnetic placement on suitable metal surfaces when independent battery operation is appropriate. If the beacon needs to use the vehicle electrical system, use the ALX-B Vehicle Magnetic Beacon range.
Yes. Select the exact model when known and request the available battery, charging, mounting or configuration-specific technical information through Engineering Resources.
Share the preferred battery platform, sound requirement, operating pattern, protection level and magnetic placement conditions.
