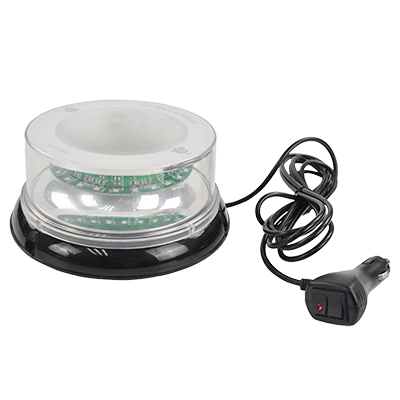

ALX-B-120CL
4-Mode Magnetic Plug-In Beacon
Removable DC12 / 24V vehicle beacon with four selectable warning modes and a 3 m plug-in power lead.
- SupplyDC12 / 24V

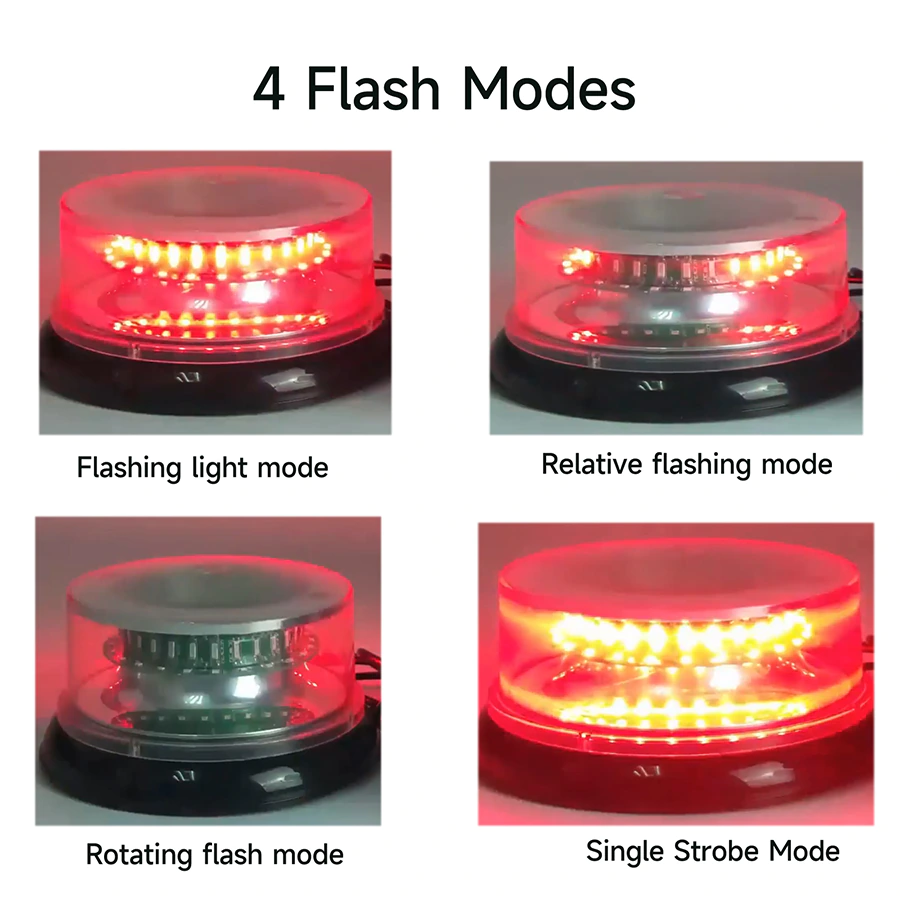

- Warning4 Selectable Modes
- InstallIP65 · 3 m · Magnetic
VEHICLE WARNING BEACON LIGHTS

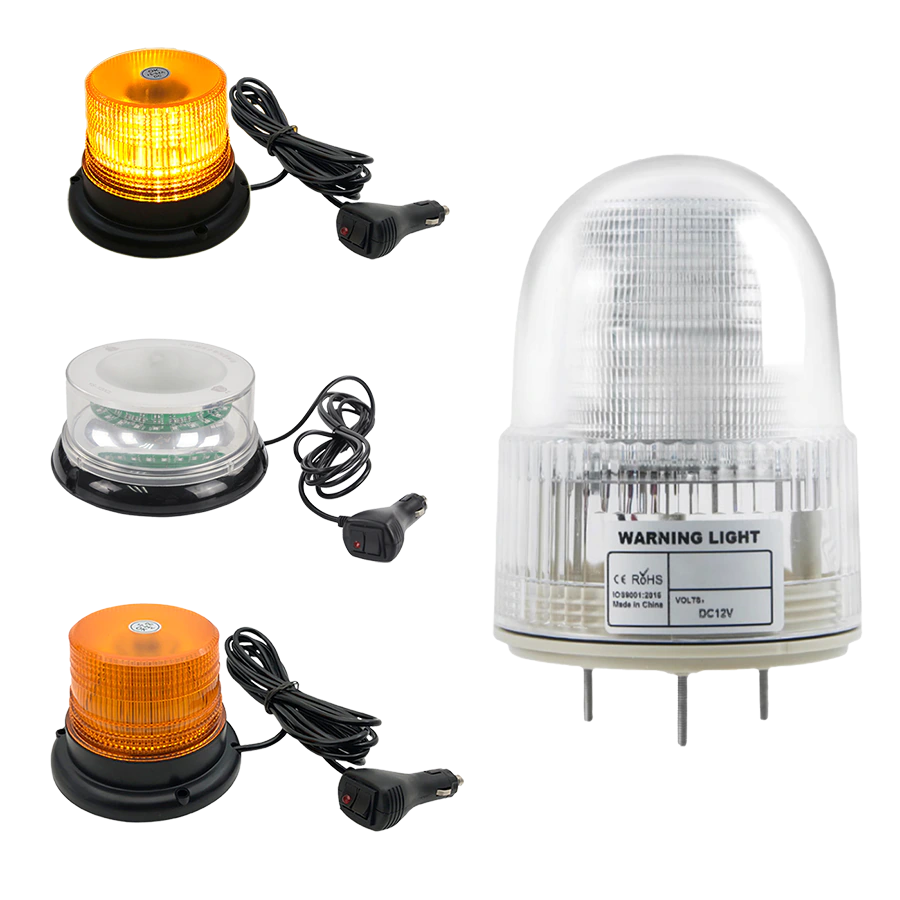

ALX-B Vehicle Magnetic Beacon Lights
Vehicle-powered magnetic and fixed-mount LED warning beacons for mobile equipment and vehicle installations.
Choose the vehicle connection method first, then compare supply voltage, cable reach, mounting, warning behavior and environmental protection to identify the appropriate beacon model.
SERIES STRUCTURE
4 VEHICLE-POWERED MODELS · 3 INSTALLATION PATHS
ALX-B VEHICLE RANGE — CURRENT FAMILY REFERENCE
DC12–48V
Family Supply Coverage
Plug-In / Lead / Wired
Connection Paths
Magnetic / Fixed
Mounting Options
IP54–IP66
Listed Protection Range
Supply range, connection, cable length, mounting, warning behavior and protection vary by exact model. Confirm the selected configuration before vehicle wiring or installation.
MODEL SELECTION
Choose by Vehicle Connection & Installation
Start with how the beacon connects to the vehicle. Then compare voltage range, cable reach, mounting, protection and warning behavior within that installation path.
01
Plug-In Magnetic
For removable vehicle warning using a vehicle plug and magnetic mounting.
02
Long-Lead & Flexible Mount
For installations requiring additional cable reach and magnetic or fixed mounting flexibility.

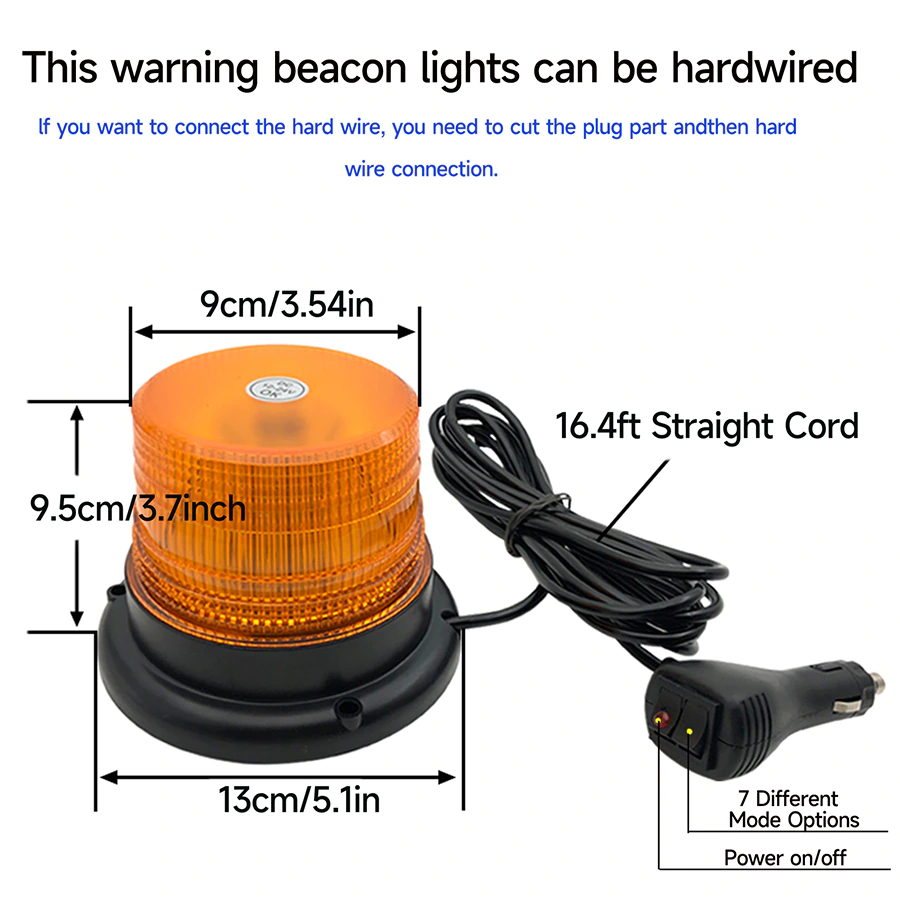

ALX-B-K008
IP66 Multi-Mode Vehicle Beacon
DC12–24V vehicle warning platform with seven selectable modes, higher listed protection and a 16.4 ft power lead.
Connector type should be confirmed with the order.- SupplyDC12–24V
- Warning7 Selectable Modes
- InstallIP66 · 16.4 ft · Magnet / Screw
ALX-B-5105
Wide-Voltage Multi-Mode Beacon
Wide-range DC12–48V platform with ten selectable warning patterns and a 16.4 ft lead for flexible vehicle placement.
- SupplyDC12–48V
- Warning10 Selectable Modes
- InstallIP65 · 16.4 ft · Magnet / Screw
03
Direct-Wired
For DC12V installations requiring a wired red-blue visual warning configuration.

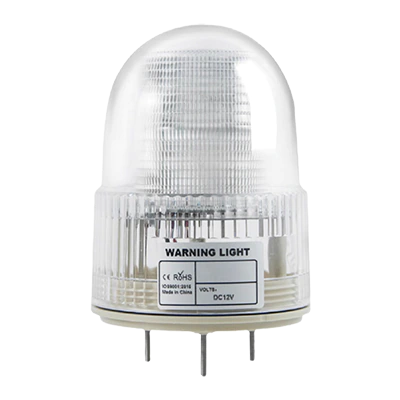

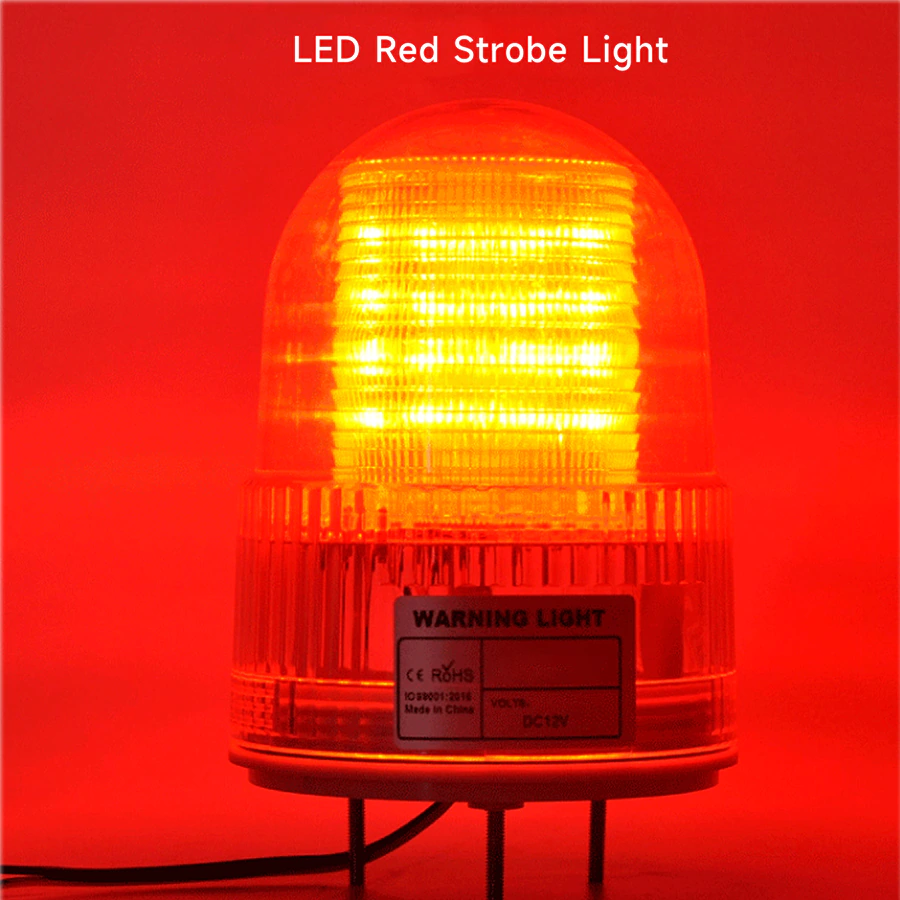

ALX-B-5201
Direct-Wired Red-Blue Strobe
Compact DC12V red-blue warning beacon for direct-wired vehicle or mobile-equipment installations.
- SupplyDC12V
- WarningRed / Blue Strobe
- InstallIP54 · Bolt / Magnet
Selected Model:
Continue to Application Review
Not sure which connection path fits?
Share the vehicle voltage, available power point, intended beacon position, mounting surface and approximate cable route.
Ask for Model Recommendation →APPLICATION FIT
Vehicle-Powered Warning for Mobile Equipment
Select the beacon according to the electrical system, installation method and operating environment of the actual vehicle or mobile equipment.
Trucks & Utility Vehicles
For work vehicles that require externally visible warning powered from the vehicle electrical system.
Discuss Your Vehicle Application →Forklifts & Mobile Equipment
For forklifts and powered machinery operating around industrial equipment and active work zones.
View Machinery & Equipment Solution →Factory & Warehouse Vehicles
For mobile warning on industrial vehicles operating inside factories, warehouses and controlled work areas.
View Factory & Work-Area Solution →TECHNICAL SPECIFICATIONS
Compare the Four Vehicle Beacon Models
Use the current model information below to compare electrical and installation differences after the connection path has been selected.
CURRENT MODEL INFORMATION REFERENCE
The values below reflect the currently listed product information. Confirm the exact supply, connector, flash behavior, cable and mounting configuration before final vehicle installation.
| Selection Point | K008 | 5105 | 5201 | 120CL |
|---|---|---|---|---|
| Supply | DC12–24V | DC12–48V | DC12V | DC12 / 24V |
| Connection | Vehicle Power Lead Connector to Confirm | Vehicle Plug | Direct Wired | Cigarette Plug |
| Warning / Modes | 7 Selectable Modes | 10 Selectable Modes | Red / Blue Strobe | 4 Selectable Modes |
| Protection | IP66 | IP65 | IP54 | IP65 |
| Cable / Lead | 16.4 ft | 16.4 ft | Wired Installation | 3 m |
| Mounting | Magnet / Screw | Magnet / Screw | Bolt / Magnet | Magnetic |
| Main Reason to Choose | Higher Protection + Long Lead | Wide Voltage Range | Direct-Wired Red / Blue | Simple Plug-In Magnetic |
Selection Note
Wattage, LED count and number of flash modes should not be treated as a direct ranking of warning performance. Select according to the vehicle electrical system, required warning behavior and installation conditions.
BEFORE ORDERING
Confirm the Vehicle Installation
Confirm the electrical and physical installation before the final vehicle beacon configuration is specified.
01
Vehicle Voltage
Confirm whether the vehicle or equipment supply is DC12V, DC24V, DC36V or DC48V.
02
Power Connection
Confirm plug-in, vehicle power lead or direct wiring. K008 connector details should be confirmed with the order.
03
Cable Route
Check the distance between the intended beacon position and the available vehicle power point.
04
Mounting & Exposure
Confirm mounting surface, removable or fixed installation, vibration and required environmental protection.
FREQUENTLY ASKED QUESTIONS
Vehicle Beacon FAQs
Start with vehicle voltage and power connection. Then compare mounting, cable reach, protection and required warning behavior within the suitable installation path.
ALX-B-5105 is the model currently listed with a DC12–48V supply range. Confirm the actual equipment voltage before ordering.
No. ALX-B-5105 and ALX-B-120CL use plug-in vehicle connections, ALX-B-5201 is direct wired, and ALX-B-K008 uses a vehicle power lead with the connector to be confirmed.
The Portable range carries its own replaceable or rechargeable battery power. The Vehicle range uses the electrical system of the vehicle or mobile equipment.
ORDERING INFORMATION
Purchasing Reference
From 1 Piece
Minimum Order
Suitable for samples and low-volume vehicle requirements.
Available
Samples
Standard vehicle beacon models can be arranged for evaluation.
Supported
Mixed Models
Different vehicle beacon models can be combined according to project requirements.
7–15 Days
Typical Lead Time
Reference for standard and confirmed configured orders.
APPLICATION REVIEW
Tell Us About the Vehicle & Installation
Select the preferred model if known, or provide the vehicle voltage, connection method and installation conditions.
