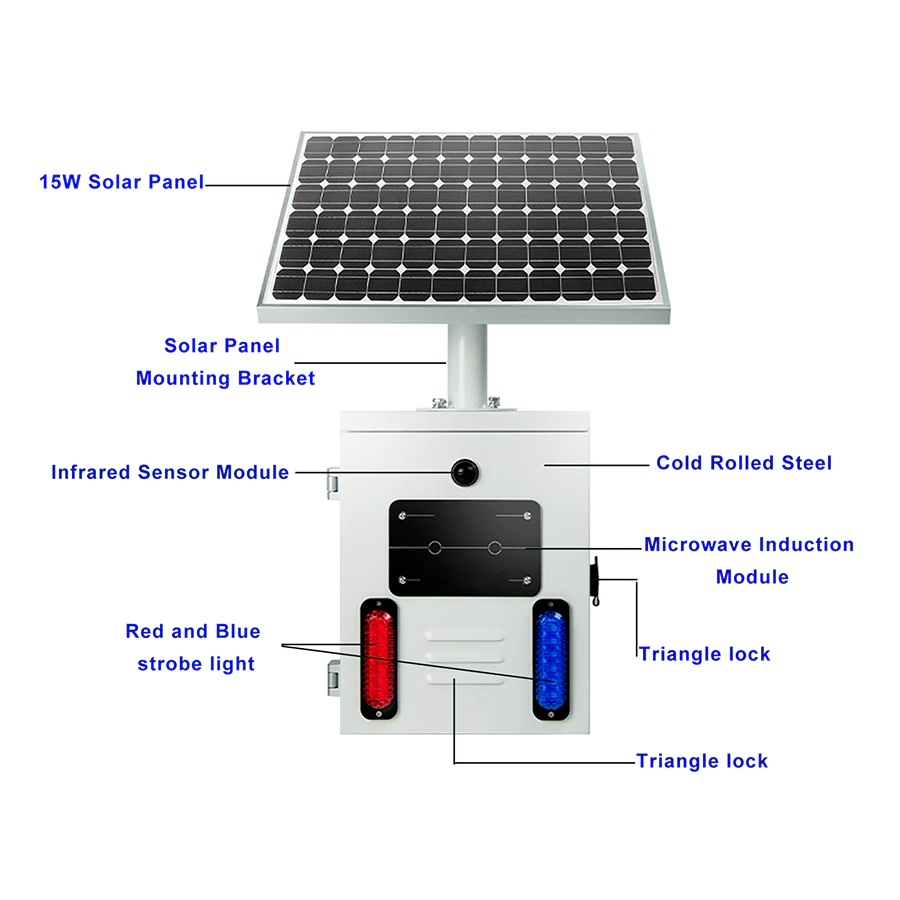

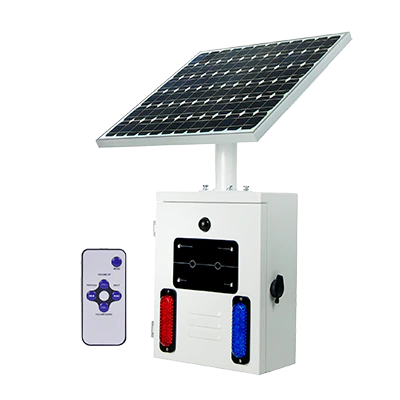

ALX-710
15W Polycrystalline Solar Platform
Compact solar-powered sensor warning platform using a 15W polycrystalline panel and clamp-style pole fixing.
- 350 × 350 × 17 mm solar panel
- 590 mm overall height
- Clamp-style pole mounting
SOLAR-POWERED AUTOMATIC WARNING

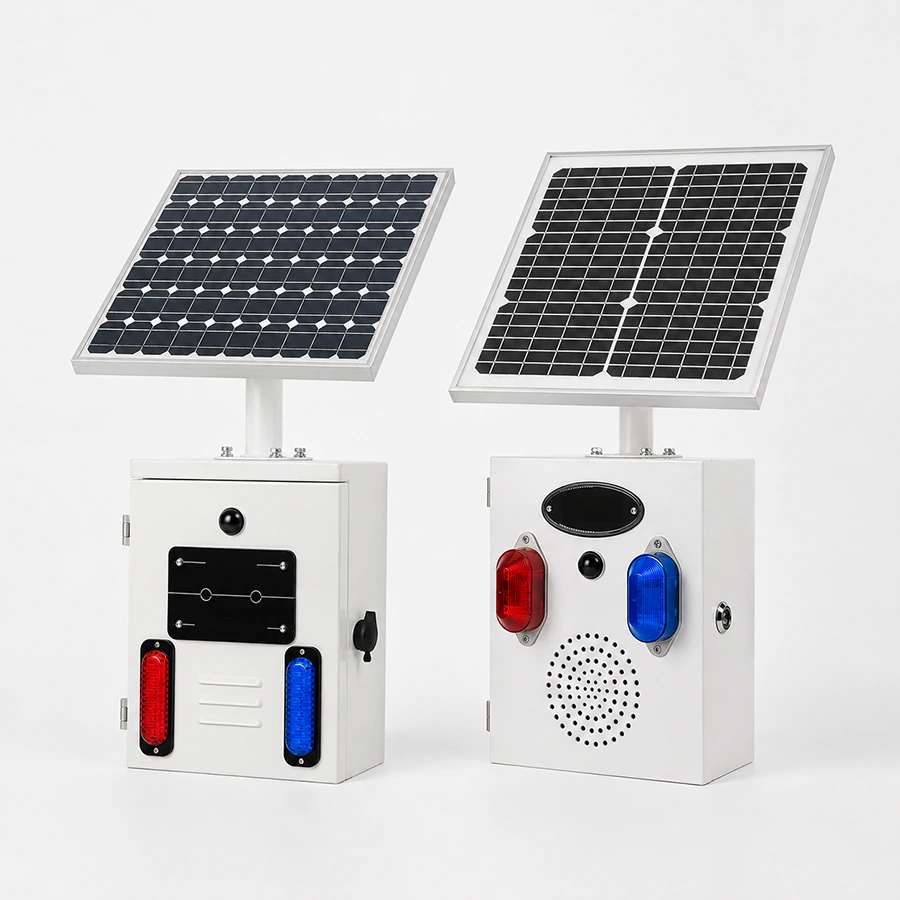

ALX-700 Series Solar-Powered Sensor-Activated Alarm Sirens
Outdoor solar alarm platforms with PIR, microwave and combined sensing for warning points where permanent power wiring is difficult or impractical.
ALX-710 and ALX-720 share the same core audible-visual warning and sensor functions. Model selection is driven mainly by the solar-panel assembly, installation dimensions and pole-mounting structure.
SERIES STRUCTURE
SHARED ALARM & SENSOR PLATFORM
ALX-700 SERIES — SHARED PLATFORM REFERENCE
120 dB
Adjustable Sound Output
3 Modes
PIR / Microwave / Combined
15W / 20W
Solar Panel Platforms
IP65
Outdoor Protection
The alarm and sensing platform is substantially shared. Solar-panel construction, mounting hardware and overall installation dimensions differ by model. Sound-level reference: measured 1 m in front of the horn, indoors / in a relatively quiet environment; no outdoor SPL test is claimed.
MODEL SELECTION
Choose the Solar & Mounting Platform
Both models provide the same core alarm and sensing functions. Compare the solar assembly, overall dimensions and pole-mounting arrangement to determine which installation platform fits the site.

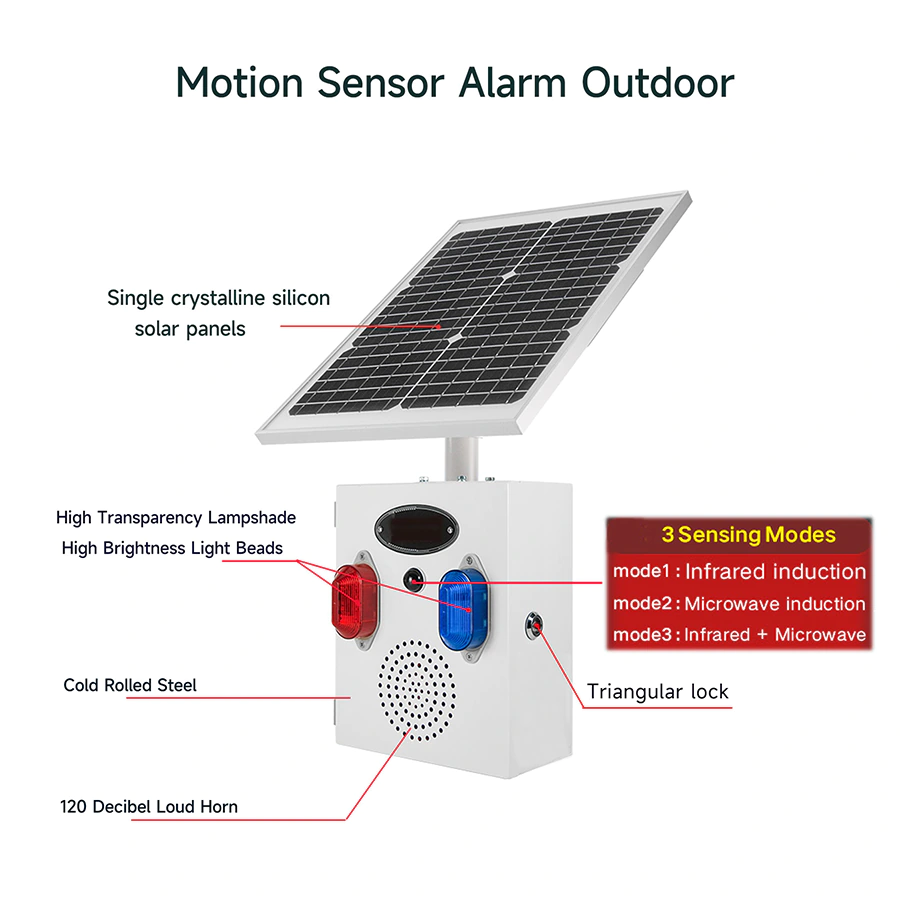

ALX-720
20W Monocrystalline Solar Platform
Larger solar assembly using a 20W monocrystalline panel and U-bolt pole mounting for a different mechanical installation arrangement.
- 450 × 350 × 17 mm solar panel
- 627 mm overall height
- U-bolt pole mounting
- Approx. 2–2.5 m recommended installation height
OPTIONAL ORDER ACCESSORY
Confirm the IR Remote Requirement
The optional IR remote is available for both current ALX-700 models. Its mode, volume and tone controls are operating functions, not separate product configurations.
Selected Solar / Mechanical Platform
Selected Model:
Solar / Mechanical Platform:
IR Remote:
Not sure which solar platform fits the installation?
Share the pole or support structure, available mounting space, useful solar exposure and preferably a site photo. The final model can be confirmed before quotation.
Ask for Model Recommendation →APPLICATION FIT
Start from the Site Requirement When the Model Is Not Yet Defined
Use the relevant application path when the warning requirement is clear but the exact solar or mounting platform still needs engineering review.

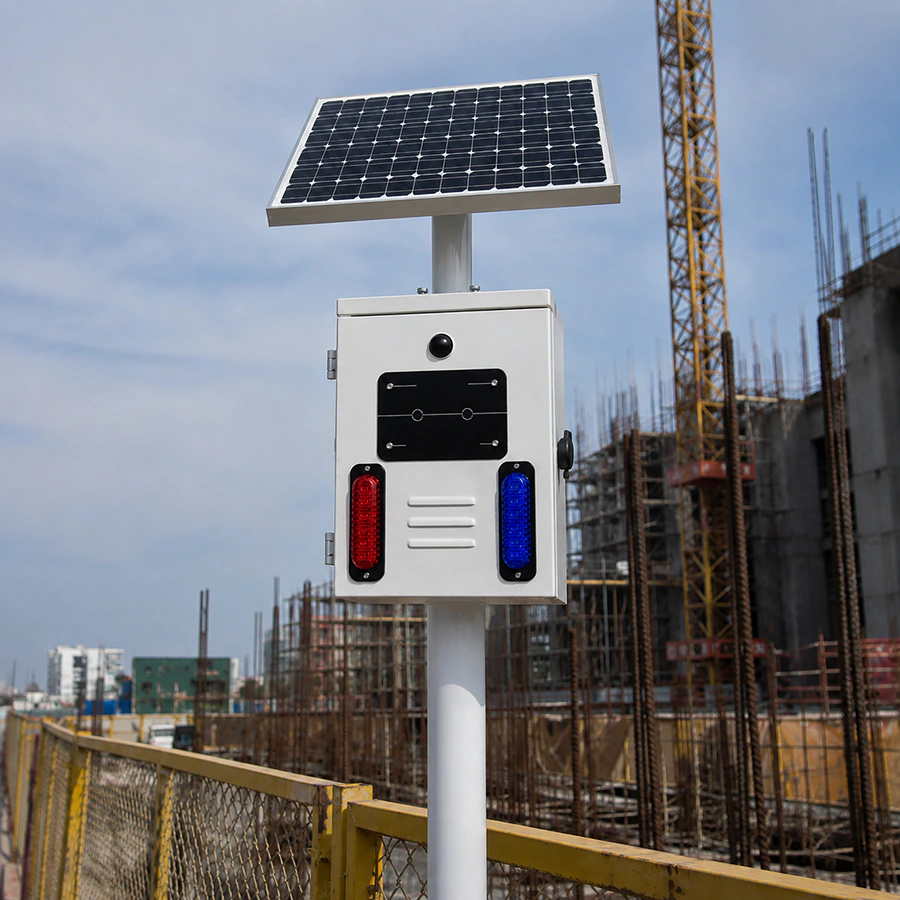

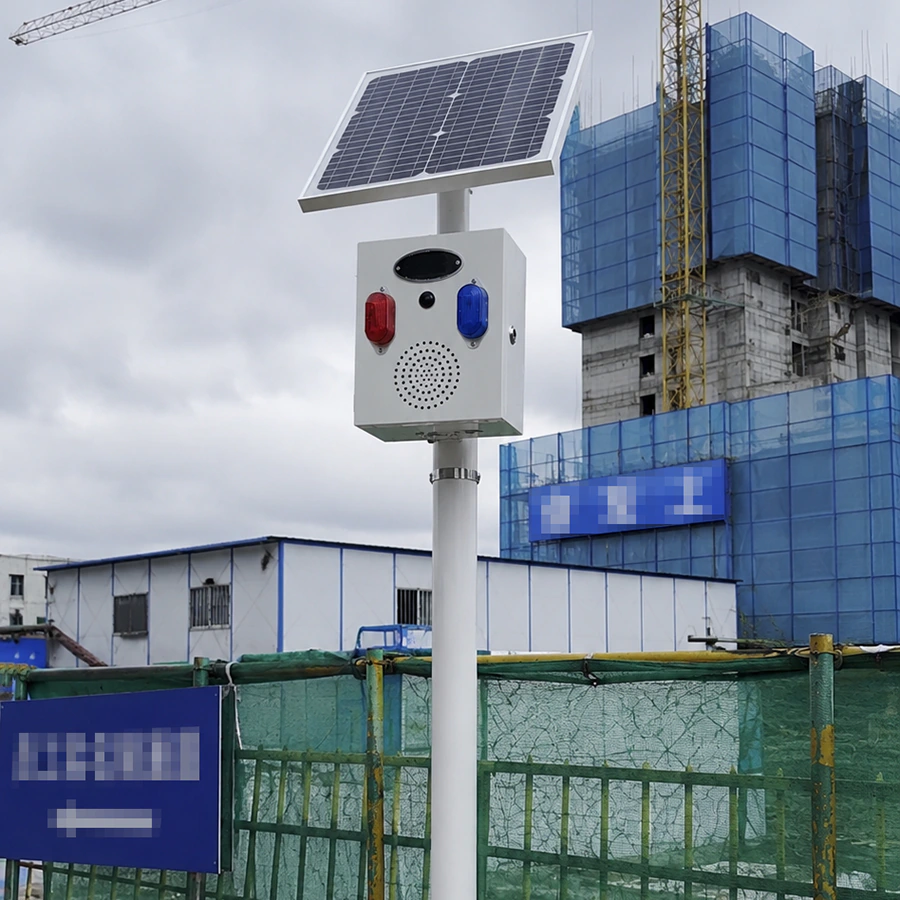

Outdoor & Off-Grid Warning
For outdoor sites where permanent power wiring is difficult and a solar-powered local warning point is being evaluated.
View Outdoor Solution →Remote, Sensor & External Warning
For unattended warning points where movement detection, sensing direction and automatic activation are central requirements.
View Sensor Solution →Machinery & Equipment Warning
For industrial or construction equipment areas where the warning point must be considered together with personnel movement and site layout.
View Machinery Solution →Factory & Work Area Alerting
For shared work zones where local sensor-triggered audible and visual warning may form part of the overall site alerting arrangement.
View Work Area Solution →Site planning should consider sensor direction, useful solar exposure, mounting structure and surrounding obstacles before final model selection.
TECHNICAL SPECIFICATIONS
Shared Specifications & Model-Specific Installation Data
ALX-710 and ALX-720 share the core alarm and sensing specification set. Solar-panel construction, panel characteristics, dimensions and pole mounting are model-specific.
Common Alarm & Sensor Platform
- Maximum Alarm Power
- 15W
- Sound Level
- Up to 120 dB, Adjustable
- Warning Method
- Audible + Visual
- Light Source
- LED
- Light Mode
- Flashing
- Light Color
- Red / Blue
- Sensor Modes
- PIR / Microwave / PIR + Microwave
- Sensor Range
- Approx. 1–10 m
- Sensor Coverage
- Approx. 120° Front Cone
- Power Architecture
- Solar Charging + Internal Rechargeable Battery
- Protection Rating
- IP65
- Operating Temperature
- -20°C to +60°C
- Working Humidity
- ≤95%
- Housing
- Cold-Rolled Steel
- Light Cover
- PS
- Warning Audio
- Customizable
ALX-710 Solar & Mounting Platform
- Solar Panel Power
- 15W
- Solar Cell
- Polycrystalline
- Panel Working Voltage
- 18V
- Panel Working Current
- 1.2A
- Open-Circuit Voltage
- 21.6V
- Short-Circuit Current
- 1.32A
- Solar Panel Size
- 350 × 350 × 17 mm
- Panel Humidity
- 20%–98% RH
- Overall Height
- 590 mm
- Main Body Size
- Approx. 230 W × 300 H × 120 D mm
- Pole Fixing
- Clamp-Style
ALX-720 Solar & Mounting Platform
- Solar Panel Power
- 20W
- Solar Cell
- Monocrystalline
- Panel Working Voltage
- 18V
- Panel Working Current
- 1.11A
- Panel Operating Temperature
- -40°C to +85°C
- Solar Panel Size
- 450 × 350 × 17 mm
- Overall Height
- 627 mm
- Main Body Size
- Approx. 235 W × 291 H × 122 D mm
- Pole Fixing
- U-Bolt
- Recommended Installation Height
- Approx. 2–2.5 m
Solar conditions should be reviewed before installation.
Avoid heavily shaded positions and confirm panel orientation according to the project location and surrounding buildings, trees or equipment.
Confirm extended low-sunlight requirements before ordering.
The documentation confirms an internal rechargeable battery but does not define battery capacity, charging time or a guaranteed no-sunlight operating duration.
ALX-700 Installation Dimensions
Review the correct model drawing before preparing the pole, mounting hardware or surrounding installation space.

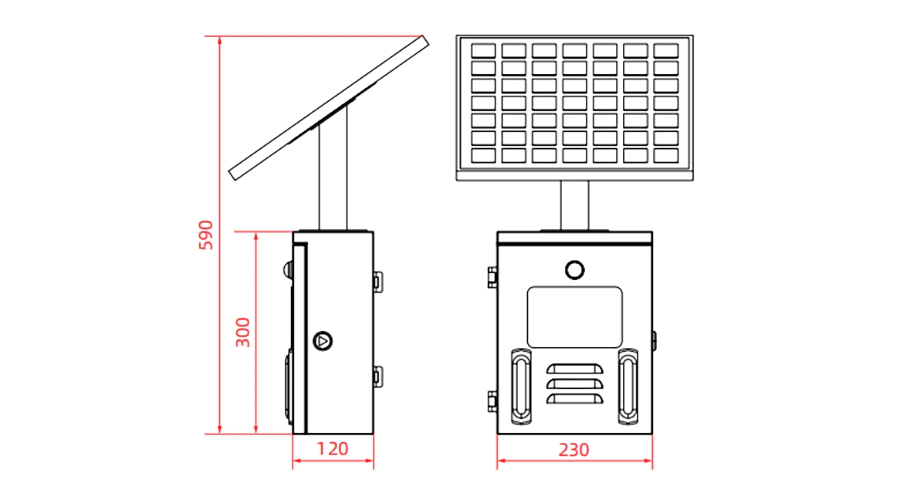

ALX-710
Installation Dimensions
- Overall Height
- 590 mm
- Main Body Width
- Approx. 230 mm
- Main Body Height
- Approx. 300 mm
- Main Body Depth
- Approx. 120 mm
- Solar Panel
- 350 × 350 × 17 mm

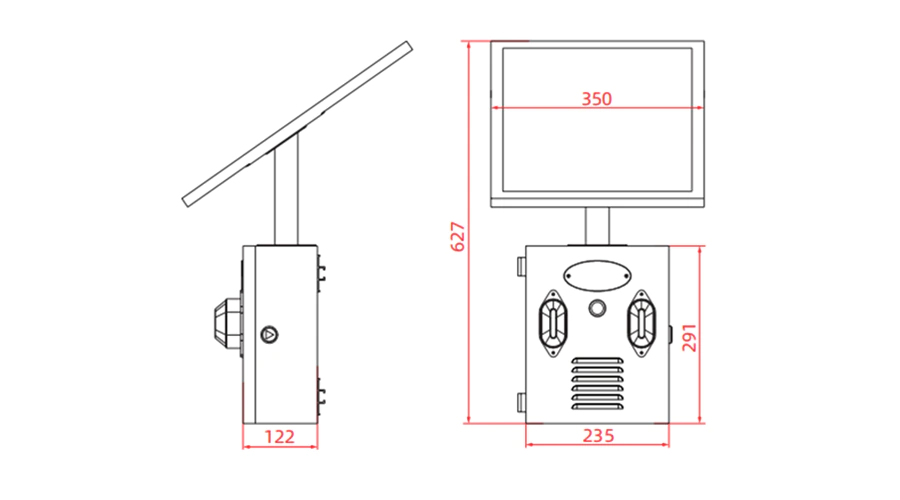

ALX-720
Installation Dimensions
- Overall Height
- 627 mm
- Main Body Width
- Approx. 235 mm
- Main Body Height
- Approx. 291 mm
- Main Body Depth
- Approx. 122 mm
- Solar Panel
- 450 × 350 × 17 mm
Confirm the selected model and pole-mounting arrangement before preparing installation hardware.
ENGINEERING RESOURCES
Sensor, Solar & Audio Setup Information
Review sensing direction, solar exposure, warning audio and mounting conditions before the final model is confirmed.
Sensor Mode Selection
PIR, microwave and combined PIR + microwave modes are available. Select the mode according to what the site needs to detect.
Detection Area
Current documentation specifies approximately 1–10 m detection in a front-facing cone of about 120°. Mounting height and site conditions can affect practical performance.
Optional IR Remote
The optional infrared remote can switch sensing mode, adjust 10 volume levels and change warning audio. Documented control distance is approximately 8 m.
Confirm whether the optional remote is required when ordering.
USB Warning Audio
Current instructions use a USB_UPDA folder and numbered warning files beginning with 001.
ALX-710
MP3 warning files · 4M storage reference
ALX-720
MP3 / WAV warning files · 4M storage reference
Solar Panel Installation
Install the panel where it can receive useful local sunlight without excessive shading from buildings, trees or equipment.
ALX-720 documentation additionally references an installation height of about 2–2.5 m and approximately 30° panel tilt where site conditions permit. Treat these as ALX-720 references, not Series-wide fixed values.
Need installation or operating information for a specific model?
Tell us whether you are evaluating ALX-710 or ALX-720 and we can confirm the available technical information.
FREQUENTLY ASKED QUESTIONS
ALX-700 Series FAQs
The core alarm and sensing functions are similar. ALX-710 uses a 15W polycrystalline solar panel with clamp-style pole mounting, while ALX-720 uses a larger 20W monocrystalline panel with U-bolt mounting. Their overall installation dimensions also differ.
Provide the pole or support type, available mounting space, solar exposure, sensing requirement and preferably a site photo. The final model can be confirmed before quotation.
Review the approach direction, required detection distance, mounting position, useful solar exposure, shading and mounting structure. These site conditions affect both sensor placement and solar-panel installation.
Yes. Tell us whether you are evaluating ALX-710 or ALX-720 and request the available installation drawings, operating information and model-specific technical documents.
ORDERING INFORMATION
Purchasing Reference
From 1 Piece
Minimum Order
For sample evaluation and low-volume project requirements.
Available
Samples
Standard configurations can be arranged for evaluation.
Supported
Mixed Models
ALX-710 and ALX-720 configurations can be combined in one project order.
7–15 Days
Typical Lead Time
Reference for standard and configured orders; confirm with the final requirement.
APPLICATION REVIEW
Tell Us About the ALX-700 Installation Site
Share the known model, sensing requirement and solar / mounting conditions. The exact model does not need to be known before inquiry.
