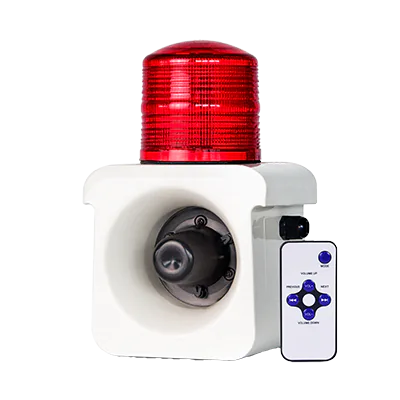

ALX-300
Standard Audible & Visual Alarm
Standard powered configuration for fixed industrial audible and visual warning applications.
- Up to 120 dB sound output
- Infrared sound adjustment
- USB audio replacement
CONFIGURABLE INDUSTRIAL WARNING
ALX-300 Series Configurable Industrial Alarm Sirens
Multiple Configurations for Standard, Rechargeable, Remote-Control, Motion-Detection and External-Signal Applications
The ALX-300 Series is a configurable audible and visual warning platform built around a standard base model, with different control and power configurations for specific industrial applications.
Standard Base Model
ALX-300
STANDARD ALX-300 — BASE MODEL REFERENCE
120 dB
Sound Output
15W
Maximum Power
10 Levels
Volume Adjustment
IR + USB
Sound Configuration
These references apply to the standard ALX-300 base model. Other configurations may differ in power, control, sensing, mounting and internal components.
CONFIGURATION SELECTION
Choose the ALX-300 Configuration That Matches Your Requirement
Start with the required control or activation method. Then compare the standard-powered and rechargeable models in that path.
01
Standard Operation
Start here for conventional warning applications. Choose the rechargeable model where portable operation or permanent wiring is impractical.

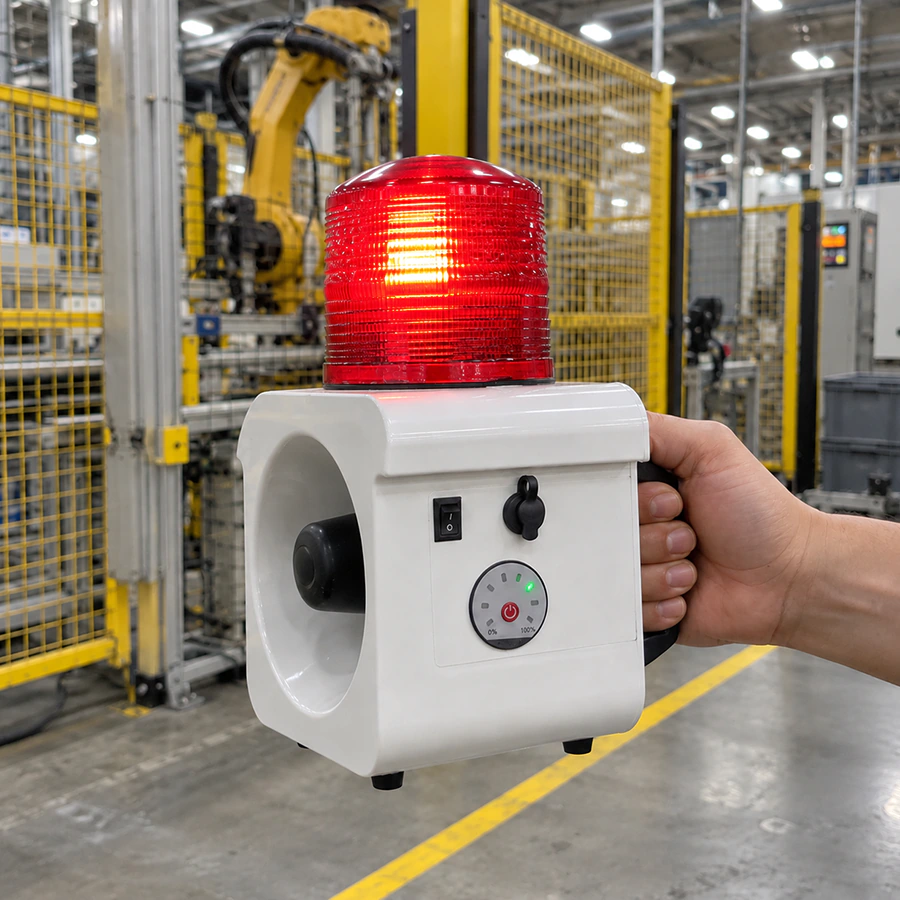

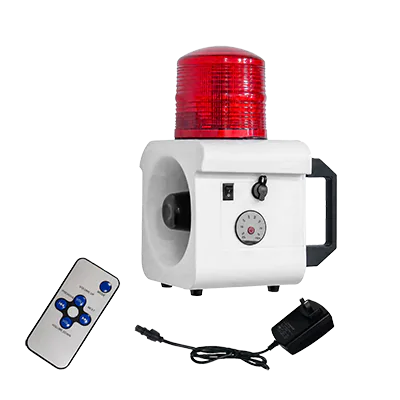

ALX-300-BAT
Rechargeable Portable Alarm
Rechargeable configuration for temporary, mobile or portable warning locations.
- AC220V charging input
- Approx. 3 h charging time
- >4 h continuous operation after full charge
02
Wireless Remote Control
For warning points requiring manual wireless ON / OFF operation from another location, with either standard or rechargeable power.

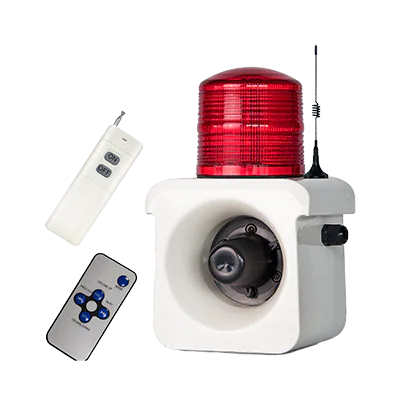

ALX-300-RC
Wireless Remote-Control Alarm
Standard-powered warning configuration with wireless manual ON / OFF control.
- Wireless ON / OFF control
- 500 m / 2000 m remote options
- Infrared sound adjustment
ALX-300-BAT-RC
Rechargeable Remote-Control Alarm
Rechargeable portable warning configuration with wireless manual activation.
- Wireless remote control
- AC220V charging · approx. 3 h
- >4 h continuous operation after full charge
03
Motion Detection
For automatic warning activation when movement is detected in the monitored area.

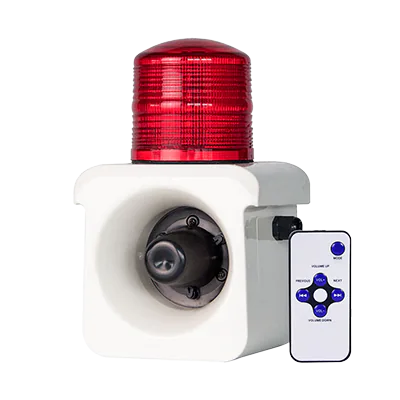

ALX-300-MD
Microwave Motion-Detection Alarm
Automatically activates audible and visual warning when movement is detected.
- Microwave motion detection
- Approx. 1–12 m sensing reference
- Infrared sound adjustment

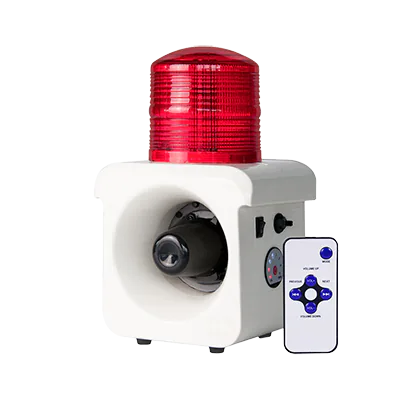

ALX-300-BAT-MD
Rechargeable Motion-Detection Alarm
Portable rechargeable warning configuration with automatic motion-triggered activation.
- Approx. 1–12 m sensing reference
- AC220V charging · approx. 3 h
- >4 h continuous operation after full charge
04
External Signal Input
For warning activation from machinery, relay outputs, switches or external control circuits.

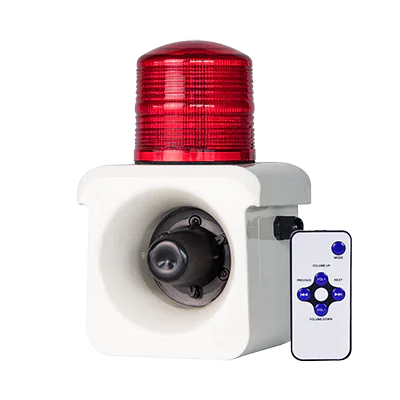

ALX-300-SI
External Signal-Input Alarm
Standard-powered configuration for alarm activation from machinery or external switching signals.
- External switching-signal input
- Equipment / relay activation
- Infrared sound adjustment
ALX-300-BAT-SI
Rechargeable Signal-Input Alarm
Rechargeable warning configuration for portable locations requiring external switching-signal activation.
- External switching-signal input
- AC220V charging · approx. 3 h
- >4 h continuous operation after full charge
CONFIRM SELECTABLE CONFIGURATION
Carry Your Confirmed Choices Forward
Only choices you make here are carried into Application Review. Unselected project conditions remain open.
Rechargeable configuration — Charging Input: AC220V.
Activation:
Selected model:
Supply:
Remote range:
Light color:
Only confirmed choices are carried into Application Review. Application, quantity, mounting and other project conditions remain open until you provide them.
APPLICATION PATHS
Where the ALX-300 Series Can Fit
Use these application paths when the project still needs broader guidance on warning method, power or activation.

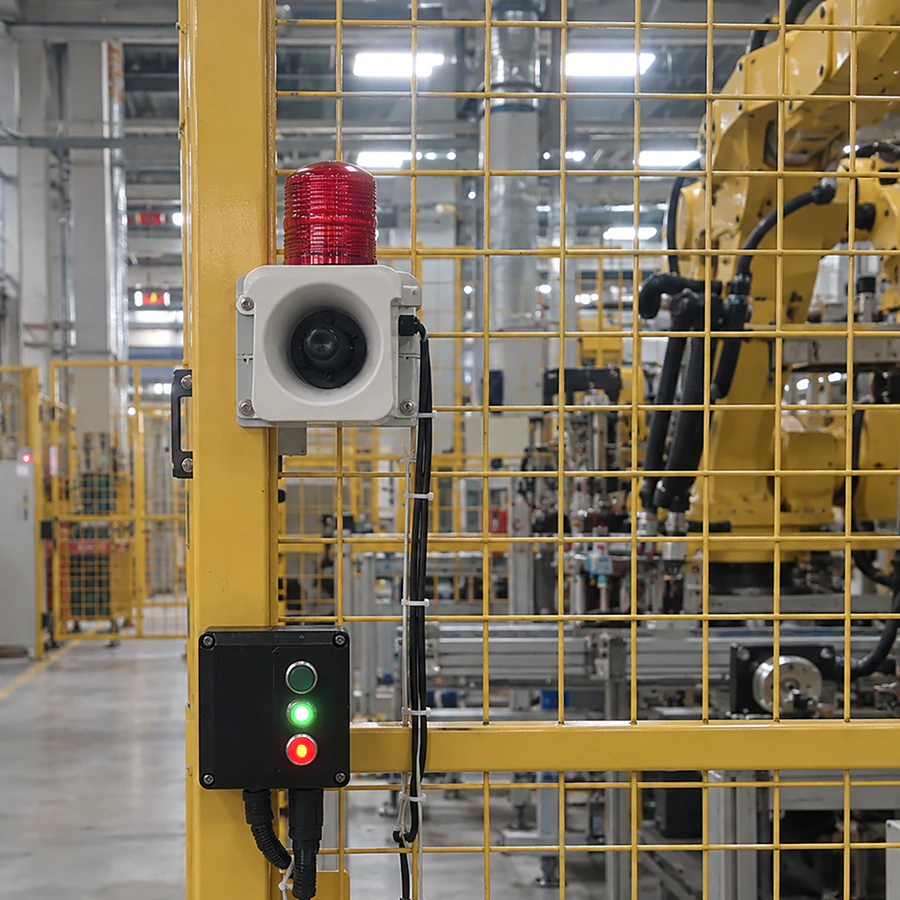

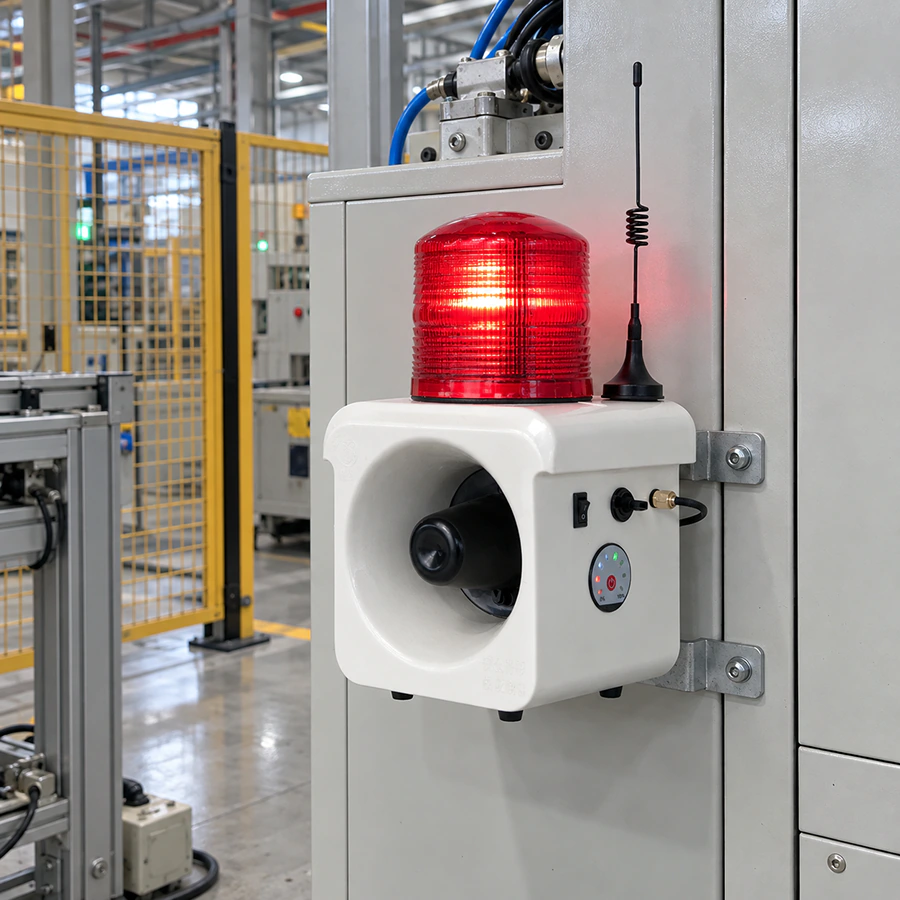

Machinery & Production Areas
For machine status, process warning and equipment events where audible and visual warning is required.
View Machinery Solution →Factory, Warehouse & Shared Work Areas
For loading areas, workshops, warehouses and shared industrial work zones.
View Work Area Solution →Remote, Sensor & External Control
For warning driven by wireless remote operation, motion detection or external switching signals.
View Remote & Sensor Solution →Model selection should consider activation method, available power, mounting method, sensing requirement and required control distance.
BASE MODEL SPECIFICATIONS
ALX-300 Base Model Specifications
The specifications below apply to the standard ALX-300 base model. Rechargeable, remote, sensing and signal-input configurations may differ and should be confirmed separately.
STANDARD ALX-300 — BASE MODEL REFERENCE
Do not apply these values automatically to every ALX-300 configuration.
Warning & Operation
- Sound Level
- Up to 120 dB
- Warning Method
- Audible & Visual
- Volume Adjustment
- 10 levels via infrared remote
- Tone Selection
- Previous / Next tone control
- Light Source
- LED
- Flash Mode
- Strobe Flash
- Light Colors
- Red / Yellow / Blue / Green
- Audio Replacement
- USB
- Audio Storage
- 4M
Electrical & Connection
- Maximum Power
- 15W
- DC Input
- DC 12V / DC 17–58V
- AC Input
- AC 100–240V / AC 380V (select configuration)
- Power Connection
- Two-wire connection
- DC Wiring
- Positive / Negative polarity
- AC Wiring
- Line / Neutral connection
- IR Control Distance
- Approx. 8 m
- IR Control Angle
- 30°
Mechanical & Environmental
- Protection Rating
- IP65

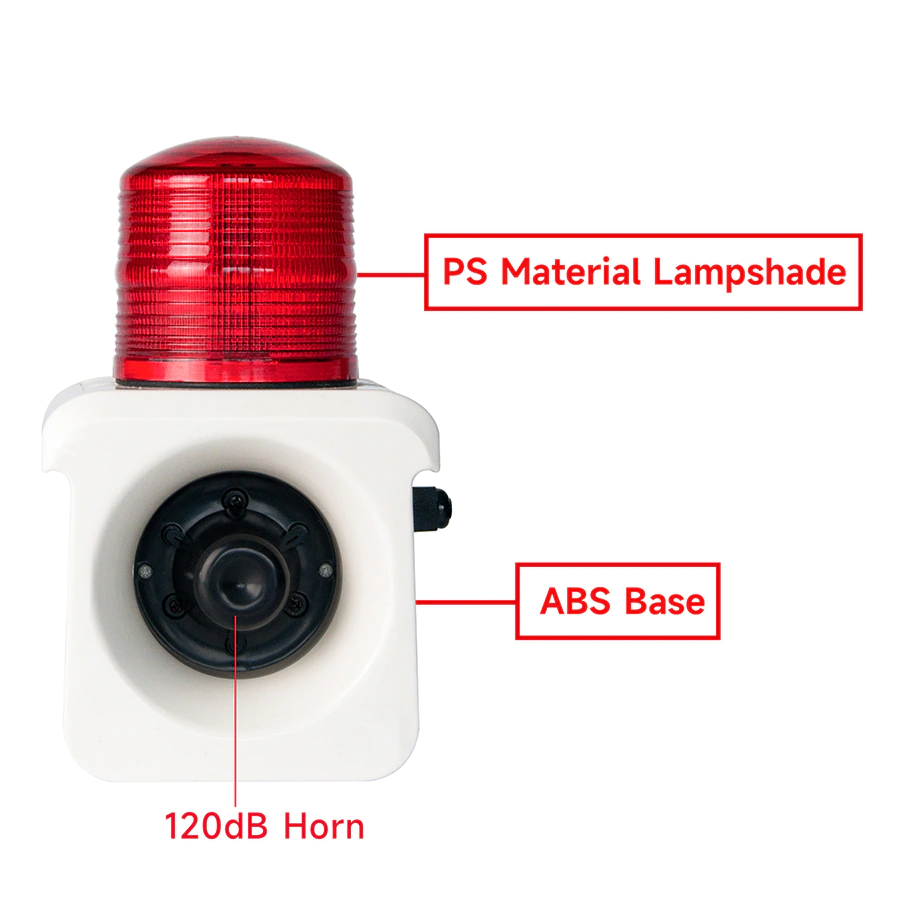

- Housing Material
- ABS
- Light Cover
- PS
- Operating Temperature
- -20°C to +70°C
- Working Humidity
- 10–90% RH, non-condensing

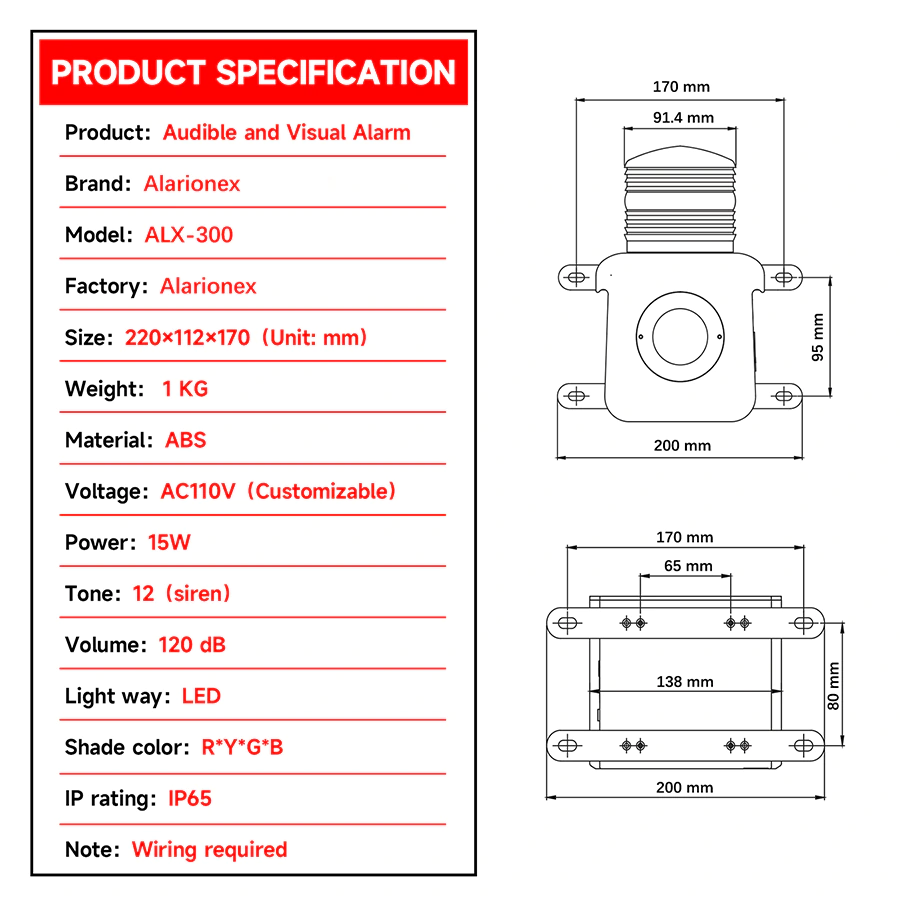

Mounting & Configuration Drawings
Different ALX-300 configurations use different mounting and enclosure structures. Confirm the selected model before using dimensions for equipment or installation design.

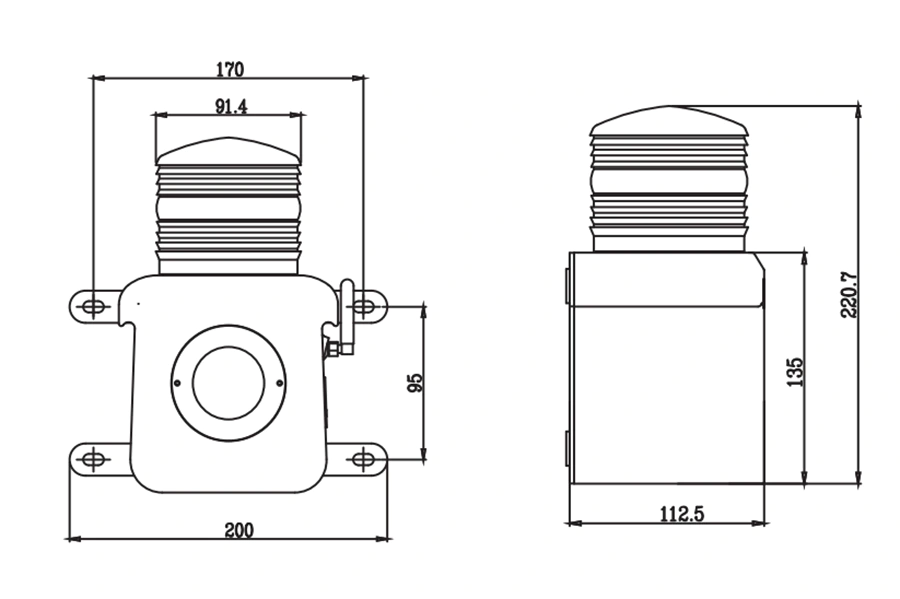

Rear-Mount Configuration
Reference for conventional fixed installation.

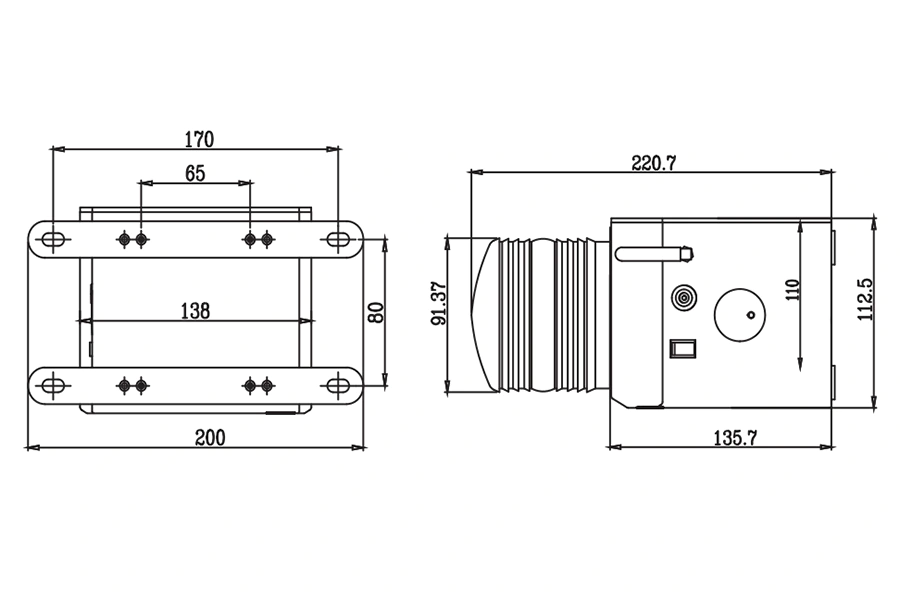

Bottom-Mount Configuration
Reference for supported base-mounted installation.

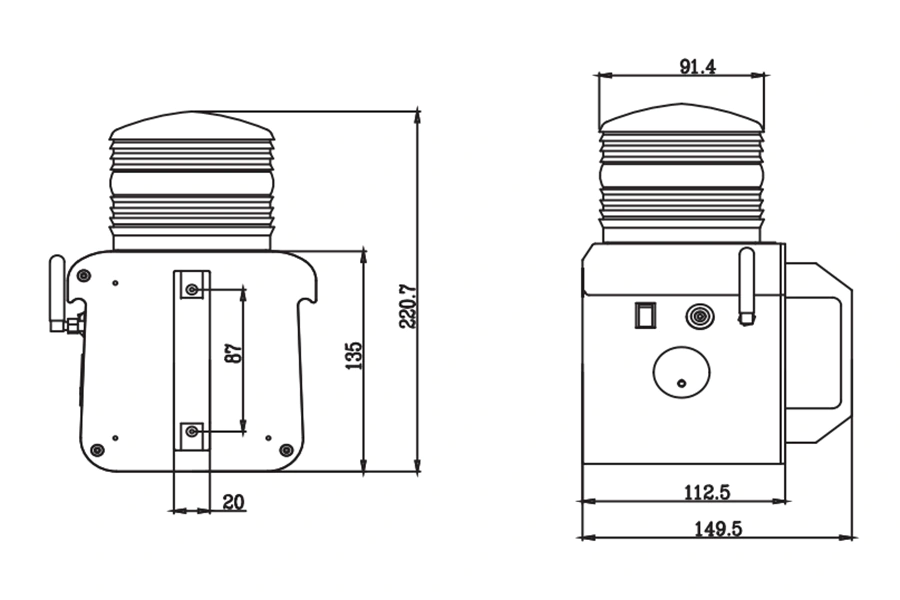

Portable / Rechargeable Configuration
Reference for battery-equipped portable models.
Battery, remote-control, sensing and signal-input models may use different internal components, dimensions and mounting arrangements.
ENGINEERING RESOURCES
Engineering Resources
View dimensional information or request model-specific wiring, technical and certification documents.
Certification documents can be confirmed by model.
Available certification documents are provided according to the selected ALX-300 configuration and order requirement.
FREQUENTLY ASKED QUESTIONS
ALX-300 Series FAQs
Start with the required control or activation method: standard operation, remote control, motion detection or external signal input. Then choose standard-powered or rechargeable operation and confirm the exact model.
Describe the application, available power source, required activation method, mounting conditions and control distance in the application review form. The exact model does not need to be selected first.
No. The specification table applies to the standard ALX-300 base model. Rechargeable, remote-control, sensing and signal-input versions can use different components, mounting structures and dimensions.
Yes. Select the model when known and request the relevant technical information through the Engineering Resources section.
ORDERING & PROJECT SUPPORT
Purchasing Information for ALX-300 Projects
From 1 pc
Minimum Order
Available
Samples
Supported
Mixed Models
7–15 Days
Typical Lead Time
Final availability and lead time are confirmed according to the selected configuration, customization and order requirements.
APPLICATION REVIEW
Tell Us Your ALX-300 Requirements
Share your application and any known configuration requirements. We will review the suitable ALX-300 model and provide technical and quotation support.
